Yamaha Outboard Rigging Kit 6X9 Top SBW are a comprehensive package of genuine Yamaha parts designed for rigging an outboard motor with Steer-by-Wire (SBW) and Digital Electronic Control (DEC) systems. The "Top" indicates a top-mount control box configuration, as opposed to flush mount.

Yamaha Outboard Rigging Kit 6X9 Top SBW Key Features

• 6X9 DEC Top Mount Control Box: This is the binnacle-style remote control that manages electronic throttle and shift (Drive-by-Wire).
• CL5 Instrument: A multi-function display that provides crucial engine data and monitoring capabilities.

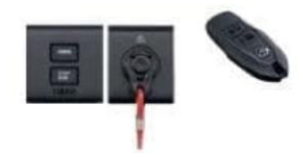

• 6X9 EKS Ignition Switch: The electronic key switch assembly for starting the engine.
• 8M Main Harness: The primary wiring harness that connects the engine to the control and display components.
• 6X9 Helm Unit: A component of the Steer-by-Wire system located near the helm.
• 6GR Helm Harness: Specific wiring for connecting the helm unit.
• Drive-by-Wire (DBW) Control: The kit uses Yamaha's Digital Electronic Control system for smooth and precise throttle and gear shifting.
• Steer by-Wire (SBW) Compatibility: The inclusion of the 6X9 Helm Unit and harness indicates support for electronic steering, offering a seamless and integrated steering experience.
• Integrated Instrumentation: The CL5 gauge provides a modern, comprehensive interface for monitoring engine performance and diagnostics.

Yamaha Outboard Rigging Kit 6X9 Top SBW FAQs

• What does "SBW" mean? SBW stands for Steer By Wire, which indicates a system designed for use with engines featuring integrated Digital Electric Steering (DES).
• What does "DEC" mean? DEC stands for Digital Electronic Control, a system where throttle and shift functions are controlled electronically, eliminating traditional mechanical cables for smoother operation.
• What items are included in the kit? The kit typically contains a 6X9 DEC Top Mount Control Box, a CL5 Instrument (display), a 6X9 EKS Ignition Switch, an 8M Main Harness, a 6X9 Helm Unit, and a 6GR Helm Harness.
• Is this system compatible with all Yamaha outboards? No. It is designed for specific "drive by wire" engines, typically post-2023 models with built-in DES, and not compatible with older mechanical control engines. It is recommended to contact an authorized Yamaha dealer to confirm compatibility with your specific engine model.
• Can the control box be used for twin or quad engines? Yes, the 6X9 controls are available in single, twin, triple, and quad engine configurations.
• Is installation a do-it-yourself job? Yamaha strongly recommends that all installation and rigging work be carried out by an Authorized Yamaha Dealer to ensure proper setup and safety.
• What features does the control box offer? Features often include Neutral Hold, Speed Control with Pattern Shift, Trim Assist, push-button start/stop, and friction adjustment, offering enhanced control and ease of use.
• Can I adjust the control lever friction? Yes, the weight and "click feeling" of the control levers can be adjusted to personal preference.
• How does the rigging system simplify multi-station installations? The "plug-and-play" design and use of a single main wire with remote ECUs (one per engine) makes adding a second helm station easier and less complex than older systems.
