Yamaha Outboard Rigging Kit 6X9 / CLS DBW

Yamaha Outboard Rigging Kit 6X9 / CLS DBW

Yamaha Outboard Rigging Kit 6X9 / CLS DBW featuring the CL5 Colour Display is the ultimate "Drive-by-Wire" (DBW) solution for modern boaters.

This kit replaces traditional mechanical cables with smooth, digital signals, offering effortless shifting and precise throttle response. Whether you are repowering your current vessel or finishing a new build, this genuine Yamaha kit brings professional-grade technology to your helm.

The Yamaha 6X9 / CL5 Rigging Kit is designed for outboards equipped with Digital Electronic Control (DEC). By removing the friction and "play" of mechanical cables, this system provides a premium, tactile feel and a cleaner dashboard. At the heart of the kit is the CL5 Touchscreen Display, a sleek, modern gauge that monitors everything from engine health to fuel flow in high-definition colour.

Yamaha Outboard Rigging Kit 6X9 / CLS DBW Key Features

• Digital Drive-by-Wire Precision: Say goodbye to stiff gear changes. The 6X9 binnacle provides effortless, "fly-by-wire" shifting and throttle control, ensuring smooth docking and precise speed adjustments.
• CL5 High-Definition Touchscreen: A compact but powerful 5-inch colour display. It’s thin, stylish, and packed with data including RPM, speed, trim levels, fuel management, and engine alerts—all accessible via an intuitive touch interface.
• Speed Control & Pattern Shift: Perfect for anglers and cruisers alike. Easily adjust your trolling speed with the touch of a button, or use "Pattern Shift" for slower-than-idle speeds to present your lures perfectly.
• Integrated Neutral Hold & Trim Assist: Warm up your engine or charge your batteries in neutral with ease. The built-in Trim Assist automatically adjusts your engine's trim as you accelerate, helping your boat get on the plane faster and improve fuel economy.
• Station Selection & Second Station Ready: If you have a flybridge or a second helm, this "plug-and-play" digital system makes integration seamless compared to complex mechanical setups.
• Enhanced Safety & Diagnostics: The CL5 display provides real-time alerts for oil pressure, water-in-fuel, and battery voltage, giving you total peace of mind while offshore.

What’s Included in the Kit?

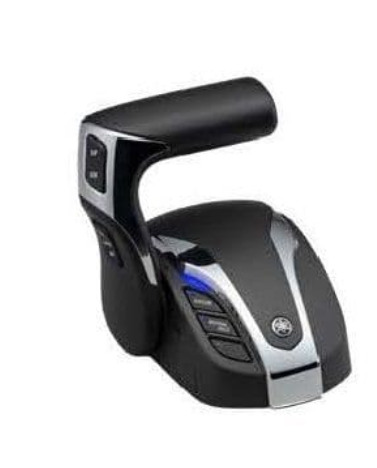

• • Yamaha 6X9 Top-Mount Control Box: Ergonomically designed with a polished chrome finish and built-in Power Trim/Tilt switch.

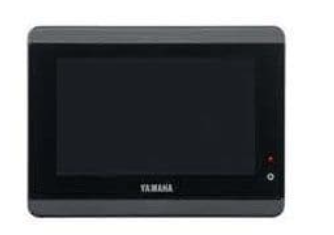

  • CL5 Digital Colour Display: The latest touchscreen gateway to your engine’s data.
  • Electronic Key Switch (EKS): Modern ignition panel for secure and reliable starting.
  • Complete Wiring Harness: All necessary digital bus cables and pigtails for a clean, professional installation.

Dealer Recommendation:

This kit is compatible with Yamaha’s latest range of DEC-ready outboards (typically 150hp through to the XTO 450hp).

Not sure if your engine is DBW compatible?

The team here at Morgan Marine is ready to help. Contact us with your engine serial number, and we can ensure this is the perfect fit for your boat. We also offer professional fitting services at our workshop to ensure your new rigging is calibrated perfectly for the water.

Yamaha Outboard Rigging Kit 6X9 / CLS DBW FAQs

What does "Drive-by-Wire" (DBW) actually mean?

Traditional outboards use stainless steel cables to physically pull the throttle and shift gears. "Drive-by-Wire" replaces these with digital signals. When you move the 6X9 lever, an electrical signal is sent to an actuator on the engine. The result? Zero friction, incredibly smooth shifting, and precise throttle response that never goes out of adjustment.

Will this kit fit my existing Yamaha outboard?

This kit is designed for Yamaha’s digital range. Generally, it is compatible with:

F150 to F300 "Digital" Models: Specifically those with the "LCA" or "XCA" suffix.

XTO Offshore Models: (425hp – 450hp).

Note: It is not compatible with mechanical-control outboards (models where cables physically move at the engine). If you aren't sure which version you have, please contact the Morgan Marine team with your engine serial number.

What are the main benefits of the CL5 Display over older gauges?

The CL5 is a game-changer for your dashboard. Instead of having separate dials for RPM, Fuel, and Trim, the CL5 puts everything on one high-resolution screen. Key features include:

• • Customisable Data: Choose what you see, from fuel flow and battery voltage to engine temperature.
  • Monitoring: It can monitor up to four engines simultaneously.
  • NMEA 2000® Compatibility: It can share data with your GPS/Chartplotter.
  • Sleek Design: Its thin profile and modern glass-bridge look suit the latest luxury consoles perfectly.

Does this kit support Yamaha’s "Speed Control" and "Trim Assist"?

Yes! One of the biggest perks of the 6X9 digital control is the "Single-Touch" functionality. Through the CL5 display, you can activate:

• • Trim Assist: Automatically adjusts the engine trim based on engine RPM for the most efficient ride.
  • Speed Control: Acts like "cruise control" for your boat—ideal for maintaining a steady speed in choppy waters or when towing.
  • Neutral Hold: Allows you to increase engine RPM while in neutral (useful for warming up the engine).

Can I install this kit myself?

While the system is "plug-and-play" in terms of wiring, the initial configuration requires Yamaha-specific software to "marry" the controls to the engine and calibrate the tilt/trim limits. For safety and to ensure your warranty remains valid, we strongly recommend professional installation by our certified technicians here at Morgan Marine.

Is the 6X9 control available in different styles?

Indeed. Depending on your boat’s console, we can provide the 6X9 as a Top Mount (sitting on top of the dash) or a Flush Side-Mount (integrated into the side of the gunwale or console). Both feature the same ergonomic "palm-grip" design and built-in Power Trim and Tilt switches.

Why buy from Morgan Marine?

As an authorised Yamaha dealer, we don't just sell boxes; we provide the expertise to ensure your rigging is correct for your specific hull. Every kit we sell comes with the full backing of Yamaha’s UK warranty and our aftersales support.

Need more help?

If you have a specific question about your boat’s layout or compatibility, pop into our Brightlingsea showroom or give the Morgan Marine team a call. We're here to help you get the very best out of your Yamaha outboard.
