Ultra Flip Swivel & Hook
Ultra Flip Swivel & Hook are a premium anchoring accessory designed to connect an anchor chain directly to an anchor without the need for additional shackles. It is engineered to ensure the anchor always recovers in the correct orientation on the bow roller.

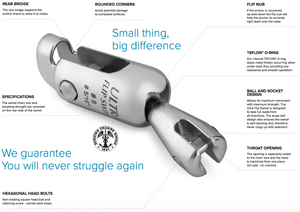

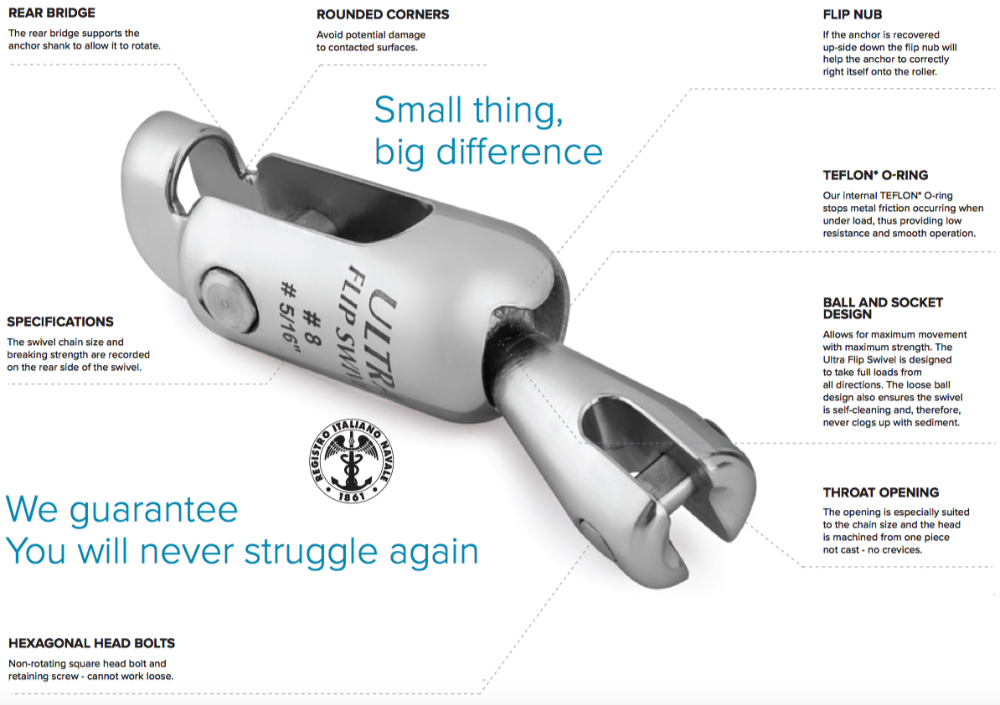

Ultra Flip Swivel & Hook Key Features
- Self-Righting "Flip Nub": A unique flipping nub and rear bridge assist the anchor in rotating to the correct "right-way up" position as it reaches the bow roller.
- Full Articulation: The design allows for a 360° swivel and 30° rotation, preventing chain twists and allowing the anchor to move freely under load.
- Exceptional Strength: Fabricated (rather than cast) from 316L stainless steel, it typically has a higher breaking strength than the chain it connects to.
- Shackle-Free Connection: Connects directly to the anchor shank, creating a slimline profile that passes easily through narrow bow rollers or stem heads.
-
- Material: Hand-polished 316 or 316Ti stainless steel for high corrosion resistance and aesthetic appeal.
- Smooth Operation: Includes an internal Teflon O-ring to reduce metal-on-metal friction and prevent seizing under heavy loads.
- Safety Locking: Uses hexagonal head locking bolts that do not require safety wires or additional grub screws to stay secure.
- Safety Hook: Often supplied with a retaining hook that secures the anchor to the swivel once it is seated on the bow roller

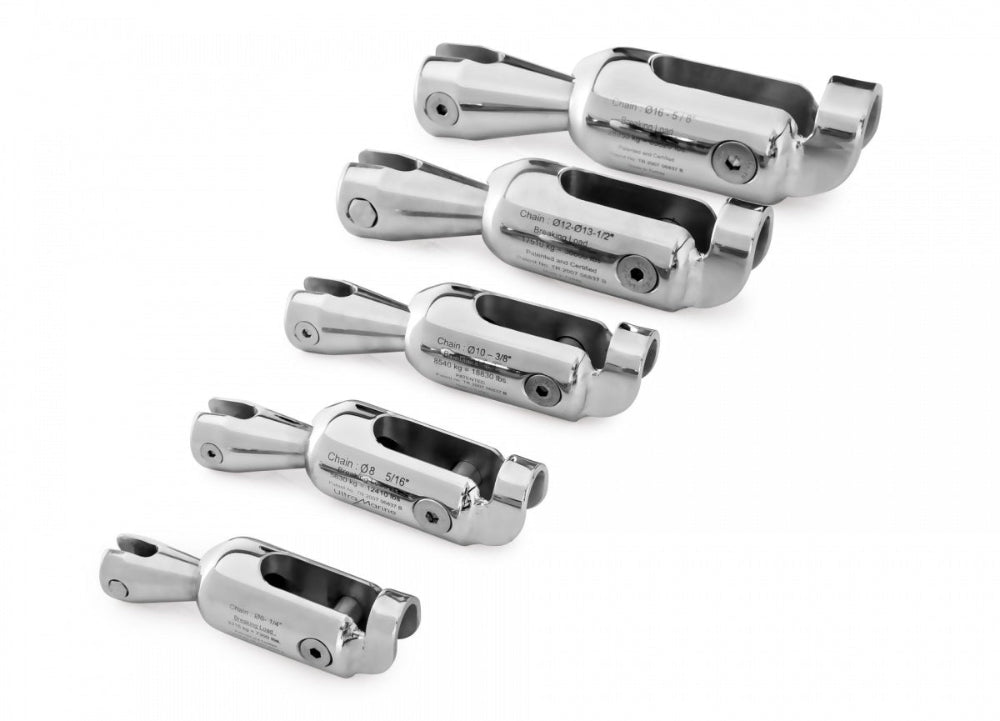

| Model | Chain Size | Max Anchor Weight |
|---|---|---|
|
UFS 6-12
|
6 mm | 12 kg |
|
UFS 8-21
|
8 mm | 21 kg |
|
UFS 10-35
|
8–10 mm | 35 kg |
|
UFS 13-60
|
10–13 mm | 60 kg |
|
UFS 16-100
|
13–16 mm | 100 kg |
|
UFS 20-160
|
16–20 mm | 160 kg |
Ultra Flip Swivel & Hook FAQs
What is the "flip" mechanism?
The Ultra Marine Flip Swivel & Hook features a unique "flipping nub" and a rear bridge that helps the anchor orient itself correctly as it is recovered onto the bow roller. This ensures smooth, safe, and damage-free stowage on the bow roller.
How does the swivel rotate?
It allows for 360 degrees of rotation and 30 degrees of movement on its axis, facilitated by a self-cleaning semi-spherical ball and an internal Teflon O-ring that prevents metal-on-metal friction.
Does it require safety pins or clips?
No, the swivel is designed to be strong and slimline, using hexagonal head locking bolts that cannot work loose unintentionally, eliminating the need for additional safety wires or pins.
How strong is it?
The body and head are fabricated (not cast) as one piece to ensure maximum strength. The breaking strength is typically higher than that of the linked anchor chain, with the specific breaking load stamped on the back of the swivel.
What chain and anchor sizes is it suitable for?
The swivel is available in different sizes designed for specific chain diameters and maximum anchor weights (e.g., UFS 8-21 for 7mm and 8mm chain and a 21kg anchor; UFS 13-60 for 10-12-13mm chain and a 60kg anchor). The appropriate size should be selected based on the maximum anchor weight, and may even be upsized for high-grade chains like G70.
Is it compatible with all anchors?
It is designed to fit most anchor types. However, it works best with anchors that have a connecting hole on the shank. If connecting to a traditional anchor with a slot instead of a hole, minor modification might be necessary to block the void in the slot and prevent potential issues with longitudinal movement.
What is the Warranty?
All Ultra Marine swivels are supplied with a standard five-year warranty.
