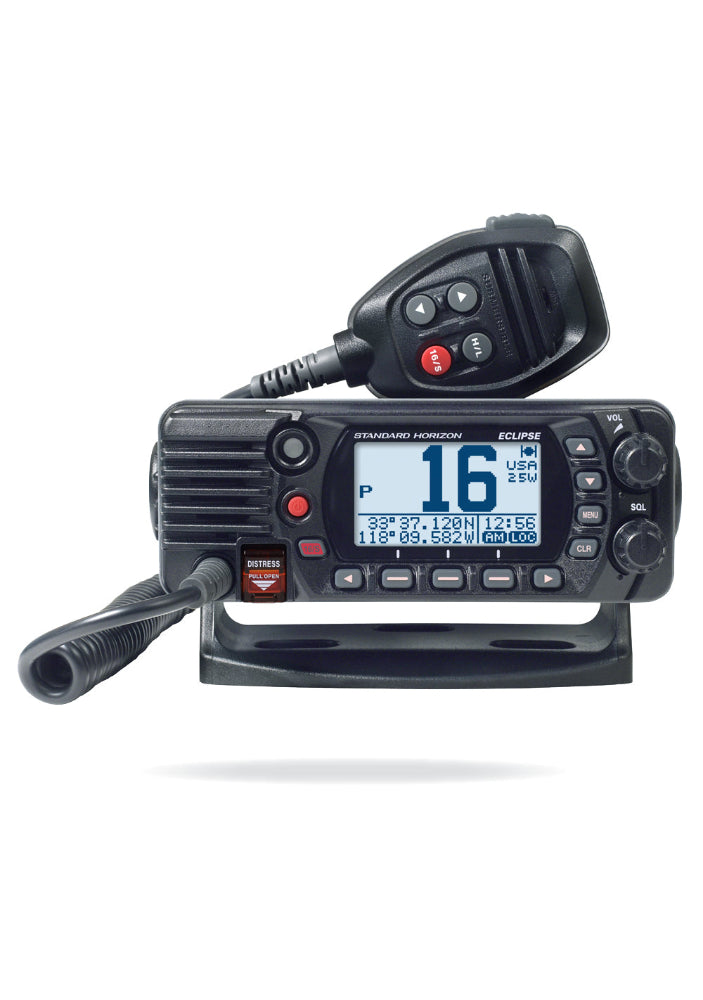

Standard Horizon GX1400GPS/E VHF radio

INCLUDES UK MARINA CHANNELS M1 & M2

Easy Installation!
With its incredibly compact size and in-built GPS, the GX1400G makes installation a breeze. With an internal 66 Channel GPS built into the front panel, there is no need to hassle with wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling, position sharing, waypoint navigation, navigation to DSC distress calls can all be performed with just a few simple steps.

ITU-R M493-13 Class D Digital Selective Calling
The GX1400 Eclipse Series is an ITU-R M493-13 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.

The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.

New Dot Matrix Display
A new High-resolution dot-matrix display makes navigating the radios many features smooth and easy. Now with a new brighter backlight for better display contrast

E2O Easy to Operate Menu System
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.

Flush Mount Capability
Two mounting options are available. Bracket mount with the bracket and knobs included or use the optional MMB-84 to flush mount into a bulkhead.

Specifications:

Built-in 66 Channel WAAS GPS receiver
Ultra Compact Class D Fixed Mount VHF Radio. Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
Clear Voice noise cancelling speaker microphone with channel selection and 16/9 key
E2O Easy to Operate Icon/Menu System
Oversized Full dot matrix display (31 mm x 55 mm)
DSC test call and Auto DSC channel change selection
GPS position and Time Shown on a Full-dot Matrix Display
NMEA In and Output Connections to a Compatible GPS Chart Plotter
Programmable soft keys
Automatically poll the GPS position of up to 6 ships using DSC
Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
All USA/International and Canadian Marine Channels
Pre-set key used to recall up to 10 favourite channels
Programmable Scan, Priority Scan, and Dual Watch
All USA/International and Canadian Marine Channels
ATIS Mode for European Inland Waterways
3 Year Waterproof Warranty

Package Includes:

Mounting Bracket, two Mounting Knobs, and hardware
Power Cord with 6 Amp fuse and holder
DSC Warning Sticker
Owner’s Manual
Warranty Card
