SBS R4/2000EL Boat Trailer

SBS R4/2000EL Boat Trailer

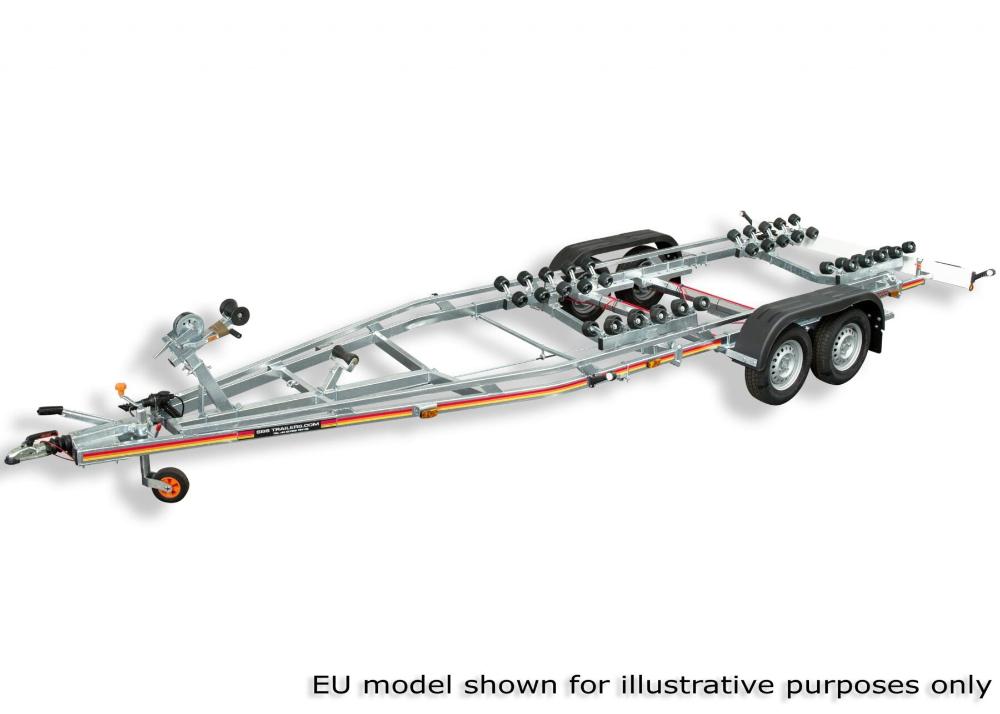

SBS R4/2000EL Boat Trailer are a premium twin-axle, braked boat trailer designed by the UK-based manufacturer SBS Trailers. It is part of the "Easy Loader" range, engineered for the efficient launch and recovery of boats and RIBs.

SBS R4/2000EL Boat Trailer Key Features

• Capacity: 2000kg Gross Capacity, with a maximum load capacity of 1500kg.
• Boat Size: Optimized for boats up to 5.8 meters (approximately 19 feet) in length, measured from Bow Eye to Transom (BET).
• Dimensions: Approximately 7.0m in length and 2.3m in width.
• Chassis: Fully welded "A" frame chassis constructed from certified steel, hot-dip galvanized to EN ISO 1461 standards for corrosion resistance.
• Roller System: Features a total of 32 non-marking wobble rollers distributed across two cranked swing beam cross members for smooth loading.
• Running Gear: Equipped with an Al-Ko axle featuring oversized sealed bearings to extend life and reduce maintenance requirements.
• Recovery System: Includes a height-adjustable snubber post and an 1100kg twin-speed winch with a strap.
• Safety & Compliance: Built to current UK/EU legislation, including stainless steel brake cables, a breakaway cable, and a 50mm locking ball coupling.
• Lighting: Comes with a removable 12V LED lighting board on extending arms, side lights, and forward-facing white LED marker lights.
• Maintenance: Standard features include a hub flush kit for washing out saltwater.

SBS R4/2000EL Boat Trailer FAQs

• What are the key weight capacities?
  • Gross Capacity: 2000kg (maximum weight of the trailer combined with its load).
  • Load Capacity: 1500kg (maximum weight the trailer can support, i.e., the weight of the boat and all its equipment).
• What is the maximum boat size the trailer can handle? The trailer is designed for boats up to 5.8m (19 ft) in length when measured from the bow eye to the transom (BET).
• Is it a single or twin axle trailer? It is a twin axle braked trailer.
• What are the trailer's physical dimensions and tire size?
  • Length: 7.0m.
  • Width: 2.3m.
  • Tire Size: 165/R13.
• How should the boat be positioned on the trailer? All rollers should be in contact with the hull and clear of any strakes. The end of the rollers should be flush with the transom, and the bow eye should reach the winch post. The winch post is fully adjustable to help attain proper support and optimum towing characteristics.
• Can the winch be used to pull the trailer up a slipway? No, never use the winch to pull the trailer up or let it down a slipway.
• What type of lights and plug does the trailer use? It features forward-facing LED marker lights and a removable rear light board with a 13-pin plug.
