SBS R2/1900EL Boat Trailer

SBS R2/1900EL Boat Trailer

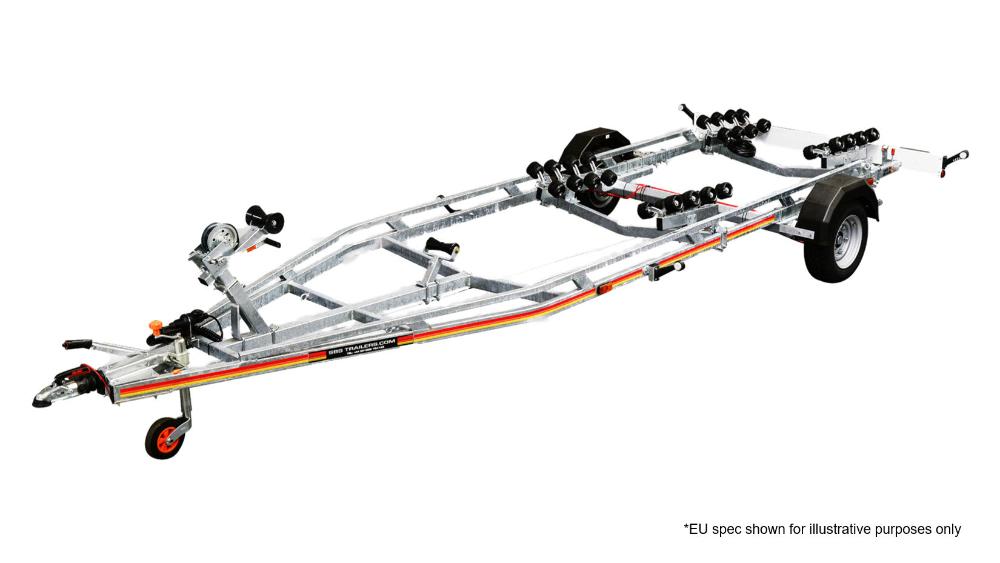

SBS R2/1900EL Boat Trailer are a single-axle, braked "Easy Loader" roller boat trailer designed for high-end support and ease of use. It is primarily built to carry motorboats and RIBs up to approximately 5.2m to 5.3m in length.

SBS R2/1900EL Boat Trailer Key Features

• Weight Capacity: It has a gross capacity of 1,900kg and a maximum payload capacity of 1,450kg.
• Dimensions: The trailer typically measures 6.6m in length and 2.3m in width.
• Boat Size: Optimized for boats up to 5.3m (measured from bow eye to transom).
•  Chassis: Constructed with a fully welded, hot-dipped galvanised A-frame chassis for superior corrosion resistance.
• Suspension & Axles: Equipped with an Al-Ko axle featuring oversized sealed unitised bearings, which are virtually maintenance-free and designed for extended life.

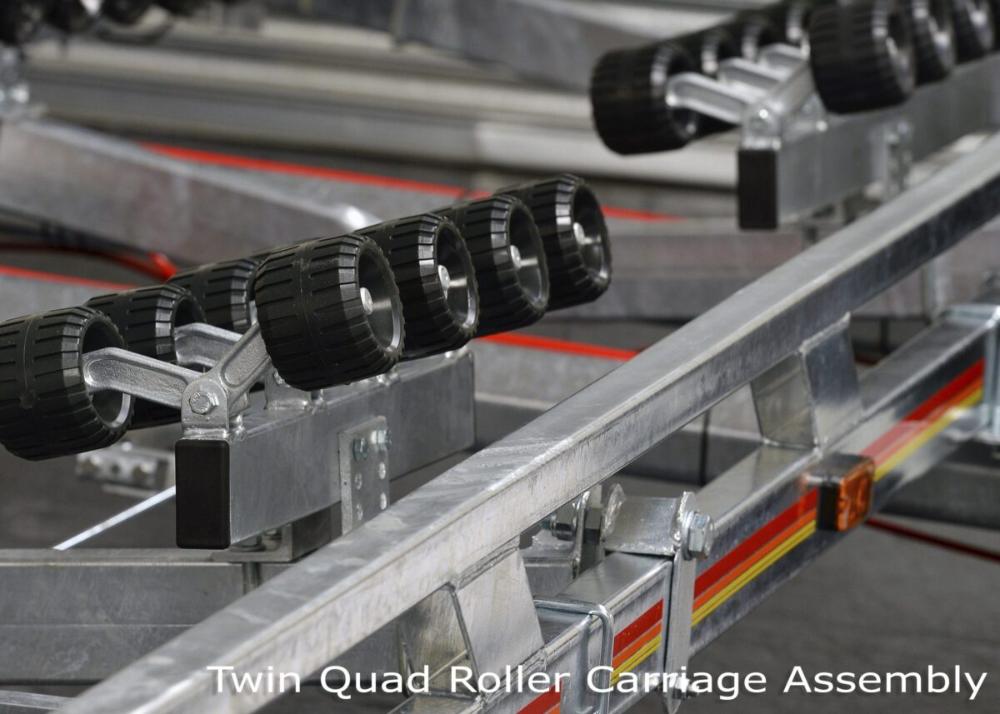

• Roller System: Features a "Multi Roller" design with a total of 32 non-marking wobble rollers (16 rollers per side) mounted on swinging rocker carriages to provide maximum hull support during launch and recovery.
• Braking System: Fully braked, often using stainless steel brake cables to prevent salt-water corrosion.
• Lighting: Includes a removable 12V rear light board on extending arms, plus forward-facing white LED marker lights and side lights.

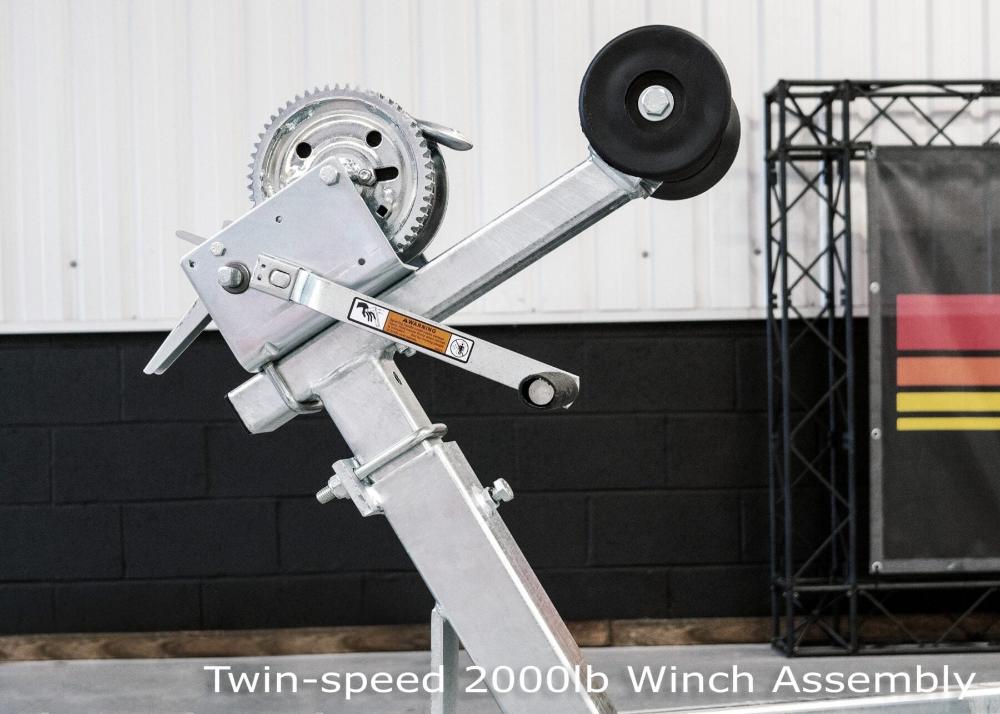

• Winch & Hitch: Comes standard with a heavy-duty 1100kg twin-speed winch with strap and a 50mm locking ball coupling with a breakaway cable.
• Maintenance: Includes a integrated hub flush kit to rinse salt water from the brakes and bearings.

• Certification: Fully compliant with the latest UK and EU legislation, supplied with a Certificate of Conformity as standard.

SBS R2/1900EL Boat Trailer FAQs

• What is the maximum weight capacity? The SBS R2/1900EL has a gross capacity of 1900 kgs (combined trailer and load weight) and a maximum load capacity of 1450 kgs.
• What size boat is it suitable for? It is designed for boats up to 5.3 meters (approximately 17.4 feet) in length, measured from bow eye to transom.
• Does it have brakes and what type of axle? Yes, it is a single-axle, fully braked trailer using stainless steel brake cables. It features an Al-Ko axle with oversized sealed unitised bearings, which are designed for extended life and reduced maintenance.
• What are the dimensions and tire size? The overall length is approximately 6.6 meters and the width is 2.3 meters. It is fitted with 185/70R13 wheels and tyres.
• How should I determine my boat's weight for this trailer? When choosing a trailer, you should use your boat's "wet" weight, which includes the fully laden boat with fuel, engine(s), and all equipment, not the manufacturer's often-published "dry" weight.
• How do I adjust the rollers and winch post? The winch post, keel rollers, and swing beam system (with 32 wobble rollers in total) are fully adjustable to ensure proper hull support and optimal towing characteristics. Every roller should touch the hull and be clear of strakes, with inside rollers close to the keel.
• What maintenance is required, especially after saltwater use? The chassis is hot-dipped galvanized for corrosion resistance. However, if towed on salted roads or used in saltwater, the chassis should be thoroughly washed down immediately after use. Vulnerable parts treated with a lighter zinc coating (like U-bolt threads and winch gear) can benefit from a protective lanolin-based spray like Prolan.
• Does it come with a warranty? Yes, SBS Trailers offers a unique Limited Lifetime Warranty on all their trailer frames
