Rigging Screw Jaw to Jaw A4 Marine Grade Stainless steel

SKU:JAW/JAWM4

Regular price
£9.30
Sale price
£9.30
Regular price
Tax included. Shipping calculated at checkout.
Size
8 In Stock Now

AISI316 / A4 Stainless Steel

Product Description :

Also known as a tension screw or a turn buckle, these fasteners are used to adjust and tighten loads, allowing increased tension between two components. Often used in marine, sailing, boating and industrial applications.

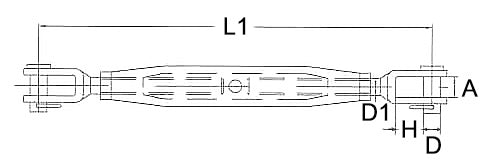

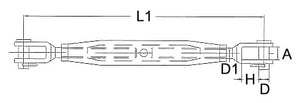

A D D1 H L1 Min. Breaking Load
5.5 4 M4 8 110 3.4 kN
6.5 5 M5 10 130 5.6 kN
7.5 6 M6 10 150 7.7 kN
11 8 M8 11 165 13.9 kN
12 9 M10 14 190 21.8 kN
14 12 M12 20 245 32 kN
17 16 M16 26 310 57 kN
20 19 M20 30 360 89 kN
