Raymarine Ray53 VHF Radio - Integrated GPS Receiver

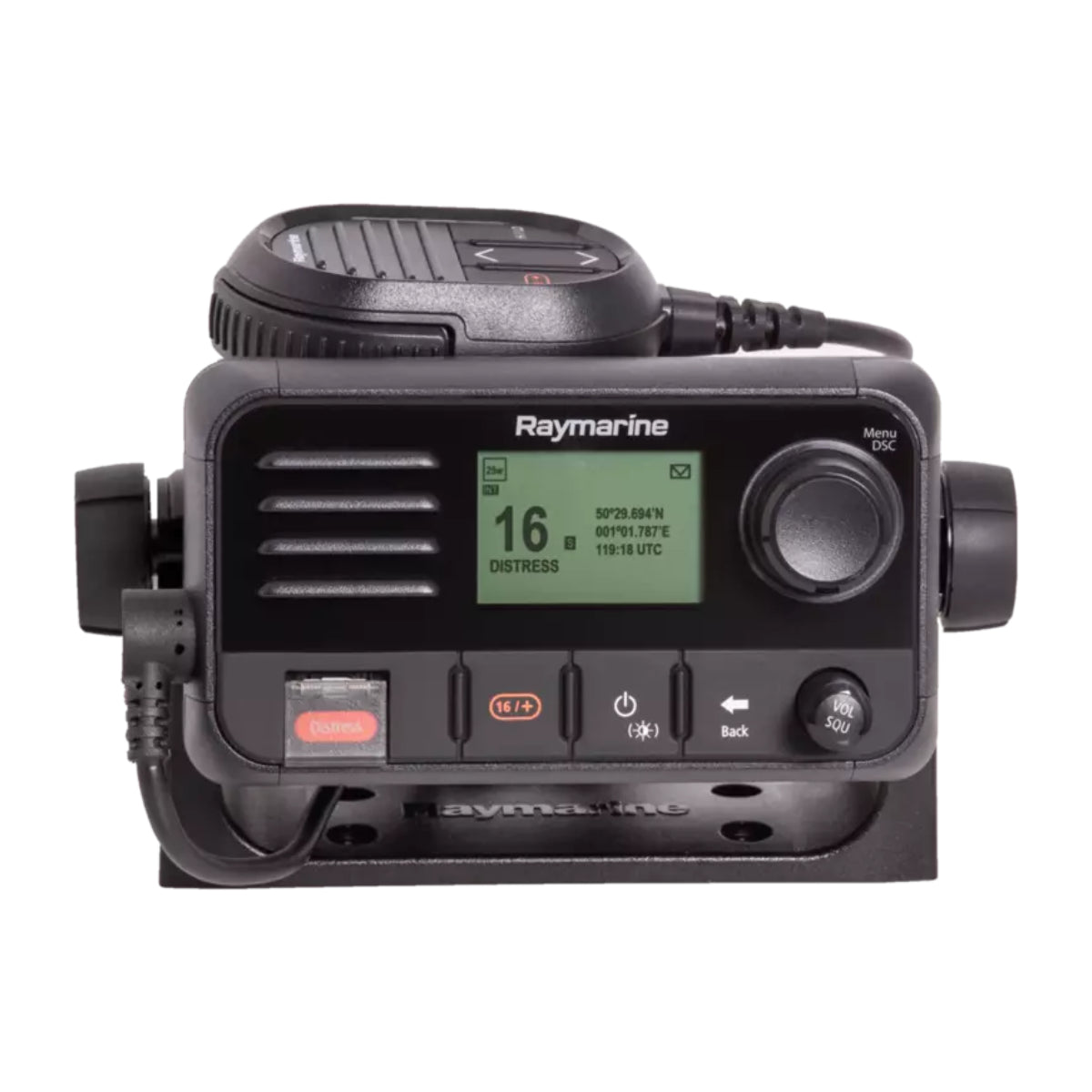

The Raymarine Ray53 radio is small in size but big on features and performance. It is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC.

Raymarine Ray53 Key Features

• Compact marine VHF with Digital Selective Calling
• Built-in GPS/GNSS receiver with a connection point for an optional external antenna
• NMEA2000 and NMEA0183 networking for integration with onboard systems
• Audio output connection for optional passive remote speaker (A80542)
• Surface and trunnion mount kits included
• Styled to compliment the Axiom family of chartplotter displays

In the box you'll find the VHF radio, suncover, panel mount gasket, mounting bracket (Trunnion), mounting bracket knobs, Fistmic hook plate, 4 x M4x25 screws (for bracket mounting), documentation, 4 x M4 nuts, spring washers and M4x25 machine screws (for panel mounting), protective antenna boot, 2 x M4x12 screws (for Fistmic hook plate mounting), SeaTalkng blanking plug, and SeaTalkng 400 mm (15.7 in.) spur cable.

Raymarine Ray53 Spec

ENVIRONMENTAL SPECIFICATION

• Operating temperature: -20ºC (-4ºF) to +60ºC (140ºF)
• Storage temperature: -25ºC (-13ºF) to +70ºC (158ºF)
• Relative humidity: 95%
• Water proofing: IPx6 & IPx7
• Connections:
  - 1 x NMEA 0183
  - 1 x SeaTalkng® / NMEA 2000
  - 1 x Audio (RCA)
  - 1 x GNSS (GPS) antenna (TNC)

POWER SPECIFICATION

• Nominal supply voltage: 12 V dc (Reverse polarity and over voltage protection)
• Operating voltage range: 9 V dc to 16 V dc
• Current consumption:
  - Less than 6 A at high power (13.6 V)
  - Standby: 600 mA
  - Receive: 2 A

TRANSMITTER

• Channels: All available US, International and Canadian VHF marine bands
• Frequency range: 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
• Frequency stability: +/- 1.5 ppm
• Channel spacing: 25 kHz
• Power output:
  - Low power setting - 1 W
  - High power setting - 25 W
• Spurious emissions: Better than –36 dBm at 25 W (Less than 0.25 μW)
• Maximum deviation: +/- 5 kHz
• Antenna impedance: 50 Ohms (typical)

RECEIVER

• Receiver type: Double conversion super heterodyne
• Channels: All available US, International and Canadian VHF marine bands
• Frequency range: 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
• Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
• Squelch sensitivity: Less than —2 dBμ EMF
• Hum and noise: Better than –40 dB
• Audio distortion: Less than 10%
• Receiver sensitivity:
  - Distance - 119dBm (0.25uV) @ 12dB SINAD (typical)
  - Local - 110dBm (0.7uV) @ 12dB SINAD (typical)
• Adjacent channel selectivity: More than 70 dB
• Spurious response rejection: More than 70 dB
• Inter modulation rejection: More than 68 dB

SPEAKERS

• Base station speaker power output: 2.5 W (8 Ω)
• Fistmic speaker power: 1 W (16 Ω)
• External speaker power: 5 W (8 Ω)

GNSS (GPS)

• Channels: 72
• Cold start: < 2 minutes
• Receiver IC sensitivity: –167 dBm (Tracking) / –148 dBm (Acquisition)
• GNSS compatibility:
  - GPS
  - GLONASS
  - Beidou*
• SBAS compatibility:
  - WAAS
  - EGNOS
  - MSAS
• Special features: Active Jamming and Interference Reduction
• Operating frequency:
  - GPS L1 C/A
  - GLONASS L10F
  - Beidou B1
• Signal acquisition: Automatic
• Almanac update: Automatic
• Geodetic datum: WGS-84 (alternatives available through Raymarine MFD)
• Refresh rate: 10 Hz (10 times per second, concurrent GNSS)
• Antenna:
  - Internal - Ceramic chip mounted near top of unit
  - External - Passive antenna connection via TNC connector
• Position accuracy:
  - Without SBAS: ≤ 15 metres 95% of the time
  - With SBAS: ≤ 5 metres 95% of the time
