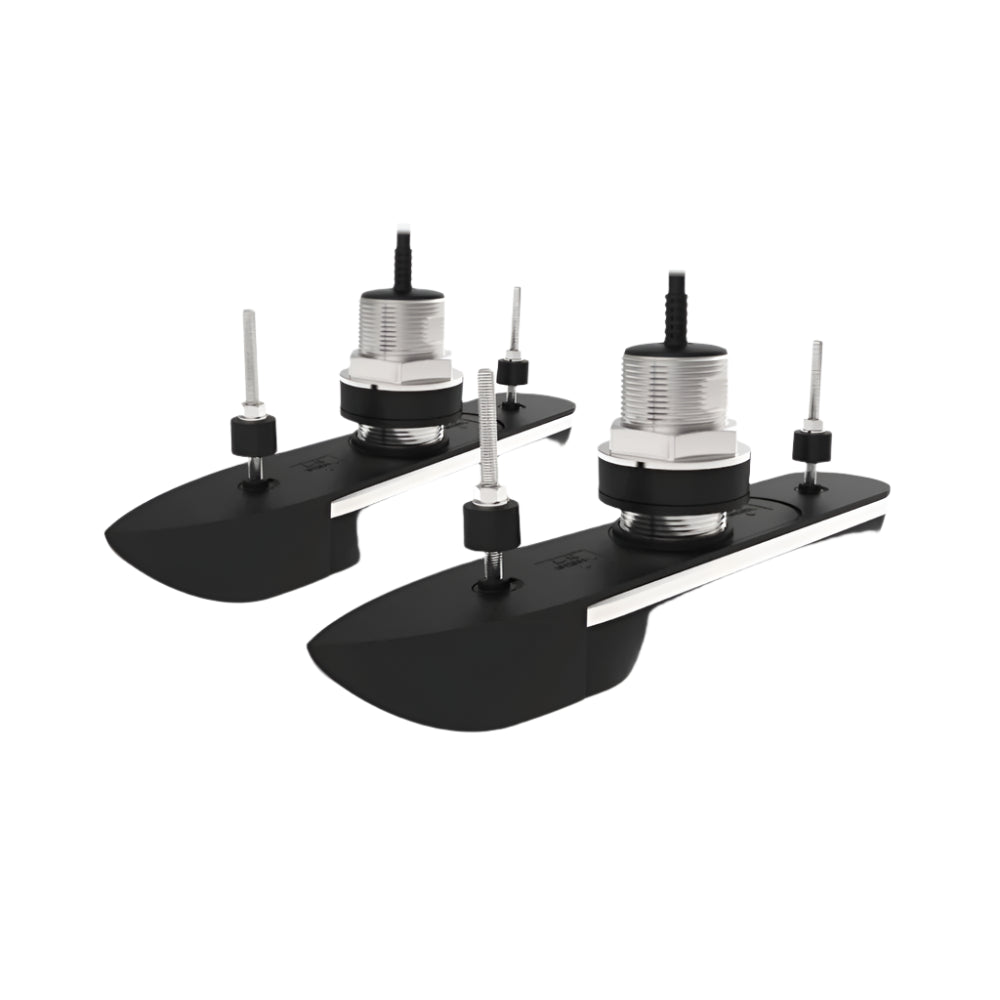

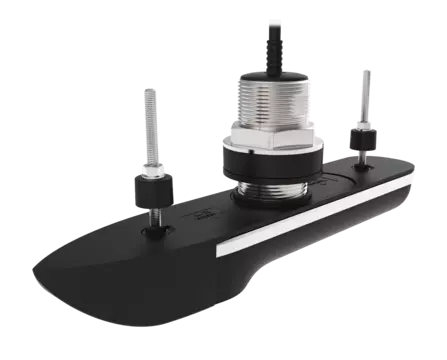

Raymarine Pack of RVM-412 RealVision 3D Stainless Steel Thru Hull Txds, Port & Starboard 12°, Direct connect to AXIOM2 and RVM1600 (2 x 2m, Y-cable and 8m extension cable)

Raymarine Pack of RVM-412 RealVision 3D Stainless Steel Thru Hull Txds

Raymarine Pack of RVM-412 RealVision 3D Stainless Steel Thru Hull Txds are a high-performance, all-in-one sonar solution designed specifically for powerboats with a hull deadrise of between 5° and 15°. This port and starboard pair features 12° internal tilted elements, which compensate for your hull's angle to ensure the sonar beams are aimed straight down. This clever design provides a crystal-clear, symmetrical view of the bottom without the need for bulky, drag-inducing fairing blocks.

Engineered with Raymarine’s latest RealVision MAX technology, these rugged stainless steel transducers deliver unmatched clarity and range. Whether you are hunting for elusive pelagics or navigating tricky coastal waters, the RVM-412 provides a comprehensive 180° view of the world beneath your boat.

This pack is a "plug-and-play" solution for the Axiom 2 Pro RVM series or the RVM1600 sonar module, including all necessary cabling to get you on the water faster

Raymarine Pack of RVM-412 RealVision 3D Stainless Steel Thru Hull Txds Key Features

• RealVision MAX Technology: Experience life-like underwater imagery with upgraded 600W High CHIRP power, providing deeper range and sharper target separation than ever before.
• Four-Channel Performance: A single installation provides four distinct sonar channels:
  • RealVision MAX 3D: For an immersive, 360-degree perspective of structure and fish.
  • DownVision™: For photo-like detail of what’s directly beneath the keel.
  • SideVision™: High-definition scanning to the port and starboard.
  • Conical High CHIRP: Traditional fish-targeting sonar with improved 600W performance.
• 12° Tilted Element Design: Specifically engineered for boats with 5° to 15° of deadrise. The internal tilt ensures perfect beam alignment while maintaining a low-profile, "near-flush" fit that eliminates drag and cavitation.
• AHRS Stabilisation: Built-in Attitude and Heading Reference System (AHRS) sensors automatically compensate for vessel motion—swells, waves, and turns—ensuring your 3D imagery remains rock-steady.
• Rugged Stainless Steel Construction: Built to withstand the harshest marine environments, these transducers are suitable for installation in fiberglass, wood, or metal hulls.

Complete Installation Kit: This professional-grade pack includes:

• • 1 x Port Transducer (2m cable)
  • 1 x Starboard Transducer (2m cable)
  • 1 x Y-Cable to join the pair
  • 1 x 8m Extension Cable (providing 10m total length to your MFD or sonar module)
  • Built-in Temperature Sensor: Provides fast and highly accurate water temperature readings.

Technical Specifications

• • Compatibility: Direct connect to Axiom 2 Pro RVM / RVM1600 Sonar Module.
  • Hull Material: Wood, Fiberglass, Metal.
  • Typical Sonar Ranges: * CHIRP Sonar: Up to 366m (1,200ft)
  • DownVision: Up to 183m (600ft)
  • SideVision/3D: Up to 91m (300ft)
  • Waterproof Rating: IPX6 (exterior), IPX7, IPX8.

Raymarine Pack of RVM-412 RealVision 3D Stainless Steel Thru Hull Txds FAQs

What hull materials are suitable for this transducer pack?

The rugged stainless steel construction is suitable for fiberglass, wood, or metal hulls.

What hull deadrise angle do these transducers accommodate?

The RVM-412 pair features a 12° tilted element in each transducer to compensate for hull angles between 5° and 15°. This design ensures optimal sonar performance without the need for a separate fairing block.

How do the transducers connect to my Raymarine display?

This pack is designed for a direct connection to an Axiom 2 Pro RVM chartplotter. For other compatible Axiom systems, you can connect using the Raymarine RVM1600 sonar module.

What cables are included in the pack?

The pack includes one port and one starboard transducer, each with a 2-meter pigtail cable, a Y-cable harness to join them, and an 8-meter extension cable, giving an overall length of 10 meters.

What sonar technologies are included?

These are all-in-one, 4-channel transducers that support RealVision MAX 3D, DownVision, SideVision, and 600W High CHIRP sonar.

What is RealVision MAX?

RealVision MAX is an enhanced version of Raymarine's RealVision technology, offering superior clarity and detail in 3D sonar imagery. It provides a life-like, 180° underwater view around and beneath your vessel.

Does the system compensate for boat movement?

Yes, a built-in Attitude and Heading Reference System (AHRS) sensor electronically stabilises the 3D sonar images, automatically adjusting for motion caused by waves, swells, and vessel maneuvering.

Are temperature readings available?

Yes, a built-in, fast-response water temperature sensor provides quick and accurate readings.

Will these transducers create a lot of drag?

No, the low-profile, near-flush design is engineered to slip effortlessly through the water without causing significant drag or cavitation, making them suitable even for trailered boats.
