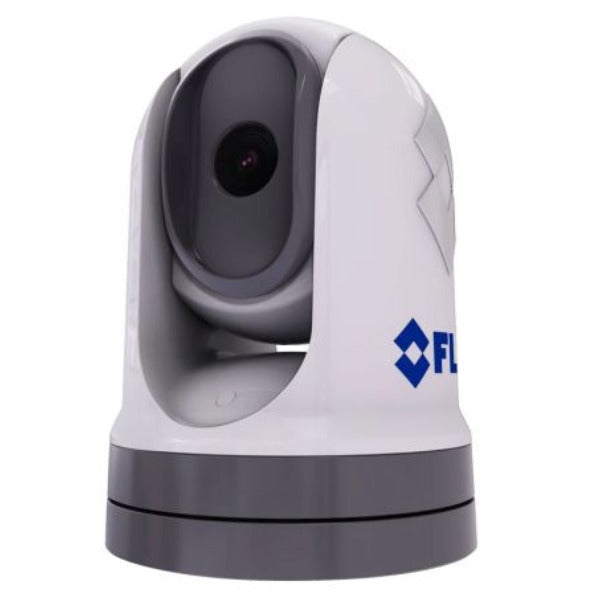

Raymarine M332 Stabilised Pan & Tilt Thermal IP Camera (320 x 256, 24° FoV) with electronic zoom

Raymarine M332 Stabilised Pan & Tilt Thermal IP Camera (320 x 256, 24° FoV) with electronic zoom

Raymarine M332 Stabilised Pan & Tilt Thermal IP Camera (320 x 256, 24° FoV) with electronic zoom delivers high-performance thermal imaging for enhanced situational awareness and safe navigation in all visibility conditions, especially total darkness, glare, and light fog. Its advanced gyro-stabilization ensures a steady view even in rough seas.

Raymarine M332 Stabilised Pan & Tilt Thermal IP Camera (320 x 256, 24° FoV) with electronic zoom Key Features

• High-Performance Thermal Imaging: The camera is powered by an advanced FLIR Boson thermal imaging core, providing vision in complete darkness and through light fog or glare.
• Active Gyro-Stabilization: Two-axis mechanical stabilization (pitch, heave, and yaw compensation) virtually eliminates the effects of rough sea conditions, ensuring a stable, clear image. An integrated Attitude Heading Reference Sensor (AHRS) provides horizontal stabilization, keeping the camera's view fixed on a selected bearing as the vessel manoeuvres.
• Pan & Tilt Functionality: It offers full 360° continuous pan and +/- 90° tilt adjustment ranges, allowing for horizon-to-horizon viewing.
• Resolution and Zoom: The camera features a 320 x 256 VOx Microbolometer detector and a 24° x 18° field of view. It has a 4x continuous electronic zoom capability.
• Seamless Integration: The M332 is an IP camera with a single H.264 network video stream output, enabling easy integration with navigation and security systems. It is compatible with Raymarine Axiom Multifunction Displays (MFDs) for enhanced features like ClearCruise™ Augmented Reality (AR).
• ClearCruise™ Augmented Reality (AR): When combined with a Raymarine Axiom MFD, ClearCruise AR overlays critical navigation information, such as AIS targets, chart objects, and waypoints, directly onto the thermal video feed, enhancing safety and awareness. The system also uses video analytics to intelligently identify non-water objects and provide audible and visual alerts.
• Rugged Design: Built to withstand the harsh marine environment, it has an IPX6 water ingress rating (heavy seas, power jets of water) and can withstand winds up to 100 knots (115.2 MPH). It also features automatic window defrost standard at power-up.
• Target Recognition Range: According to information from svb24.com, it can detect a person in the water up to approximately 457 meters (0.3nm) and a 30-foot vessel up to 1850 meters (1.0nm).

Raymarine M332 Stabilised Pan & Tilt Thermal IP Camera (320 x 256, 24° FoV) with electronic zoom FAQs

• What is the camera's resolution? The Raymarine M332 features a thermal detector with a resolution of 320x256 VOx Microbolometer.
• Does the camera have optical or electronic zoom? The camera uses a 4x continuous electronic zoom (e-zoom); it does not have an optical zoom.
• What is the field of view (FoV)? The thermal field of view is 24° x 18°.
• Is the camera stabilized? Yes, it features two-axis mechanical stabilization which virtually eliminates the effects of pitch, heave, and yaw caused by rough seas, ensuring a steady view.
• What are its pan and tilt capabilities? The camera offers 360° continuous pan and +/- 90° tilt adjustment range.
• Can it see in total darkness or fog? Yes, thermal imaging technology detects heat instead of light, providing vision in complete darkness, glare, and light fog.
• How does the camera connect to other systems? It is an IP camera with exceptional connectivity to navigation and security systems. It provides a single H.264 network video stream, as well as HD-SDI lossless and analogue video output options.
• Is it compatible with Raymarine Axiom displays? Yes, the M332 can be combined with Raymarine Axiom® Multifunction Displays (MFDs) to enable features like ClearCruise™ Augmented Reality, which overlays AIS targets and chart objects onto the thermal image.
• Are there specific installation requirements for ClearCruise AR? ClearCruise features are available on conventional ball-up installations. They are not available on ball-down installations.
• Is the camera waterproof? The camera has a water ingress rating of IPX6, meaning it is protected against heavy seas and power jets of water.
• What are the operating temperature limits? The operating temperature range is -13°F to +131°F (-25°C to +55°C).
• How much does the camera weigh? The camera alone weighs approximately 13.9 lbs (6.3 kg).
