Raymarine HS-5 Network Switch (Raynet)

Raymarine HS-5 Network Switch (Raynet)

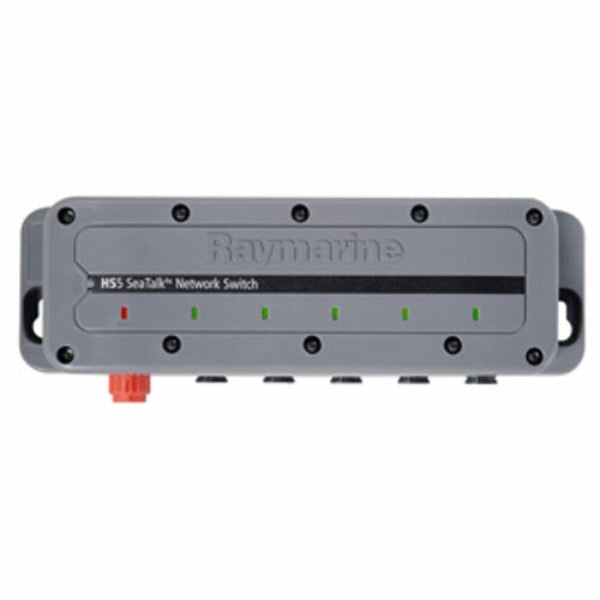

The Raymarine HS5 SeaTalkhs Network Switch works with Raymarine's latest c-Series and e-Series Multifunction Displays and accessories and serves as the central connection point for the SeaTalk High Speed Network.

The Raymarine HS5 uses the new Raynet waterproof connection system found on c-Series and e-Series displays, and provides a secure, reliable weather tight connection. Up to 5 displays or other peripherals can be connected directly to the Raymarine HS5 network switch. The 5 ports all support 10 or 100 Megabit speeds when connected to peripherals like displays, scanners, sounder modules or thermal cameras. The 5th port also supports Gigabit speed for interconnecting multiple Raymarine HS5 switches together on very large networks.

The compact Raymarine HS5 works on both 12V and 24V dc power systems, and is simple to install with large keyhole mounting slots and front-facing status indicators.

Dimensions (L x D x H) 10 in x 3.5 in x 3 in, (252.5 mm x 88.6 mm x 75mm)

Nominal supply voltage 12 or 24 V dc

Operating voltage range 9 - 32 V dc

Power consumption < 2.5 W, < 600 mA @ 12 V

Operating temperature = -13 ºF to 131 ºF (-25 ºC to +55 ºC)

Storage temperature = -13 ºF to 158 ºF (-25 ºC to +70 ºC)

Relative humidity: max 93%

Waterproof to IPX6

Conformance Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2, China: CCS certification

Supported connection protocols Sea Talkhs

Supported connection speeds 10 Mbit/S, 100 Mbit/S, 1000 Mbit/S
