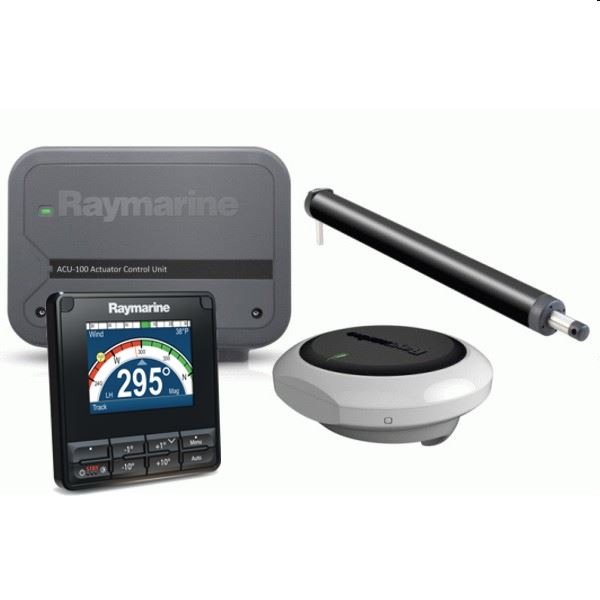

Raymarine Evolution Tiller Pilot with p70s control head, ACU-100, EV1 Sensor Core, EV1 Cabling kit & Tiller Drive

Raymarine Evolution Tiller Pilot with p70s control head, ACU-100, EV1 Sensor Core, EV1 Cabling kit & Tiller Drive

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

Features:

-Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change

-Flexible installation options. Mount above or below deck

-Simple SeaTalkng connectivity to the control head and ACU

-Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions

-Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70s Autopilot Control Head (Sail)

The p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

The p70s control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.
