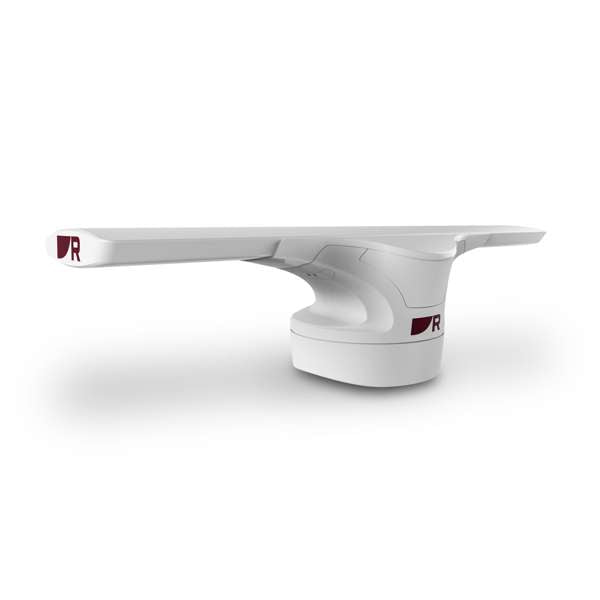

Raymarine Cyclone Pro 110 Watts 4ft Open Array Radar with 15m Cables

Raymarine Cyclone Pro 110 Watts 4ft Open Array Radar with 15m Cables

Raymarine Cyclone Pro 110 Watts 4ft Open Array Radar with 15m Cables are a high-performance, solid-state marine radar system designed for superior situational awareness, offering features like Doppler target tracking, RangeFusion technology, and a 96 nautical mile range.

Raymarine Cyclone Pro 110 Watts 4ft Open Array Radar with 15m Cables Key Features

• Solid-State Transmitter: Features a powerful 110-watt solid-state transmitter, which provides performance equivalent to a 12 kW magnetron radar, offering extended range and resolution.
• Max Range: The radar has a maximum range of 96 nautical miles.
• High-Speed Imaging: Delivers an ultra-fast 60 RPM rotational speed, which ensures real-time 360-degree awareness and accurate tracking of targets in motion.
• Doppler Target Tracking: Automatically identifies and color-codes moving targets as "dangerous" (red) or "safe" (green) for simplified interpretation and enhanced safety.
• RangeFusion™ Technology: Combines short-range and long-range radar pulses into a single, high-clarity image, providing exceptional detail in both nearby and distant areas simultaneously.
• Enhanced Bird Mode: Performance-tuned settings (using CHIRP pulse compression technology) help locate distant seabirds, which is a key indicator of fish activity, a valuable tool for anglers.
• Rugged Design: The aircraft-wing-inspired design is engineered for extreme weather conditions with a best-in-class 100-knot wind rating and a waterproof rating of IPX6.
• Professional Grade ARPA: Provides automatic tracking of up to 50 (or 100 on some listings) ARPA targets, utilizing the same technology used by commercial vessels and the U.S. Coast Guard.
• Compatibility: Seamlessly integrates with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL chartplotter multifunction displays.
• Installation: Features a low-profile design (13.1 inches tall) and an innovative pedestal design that conceals cable connections for a cleaner installation.


Raymarine Cyclone Pro 110 Watts 4ft Open Array Radar with 15m Cables FAQs

• What is the maximum range of the radar? The Raymarine Cyclone Pro 110 Watts 4ft Open Array Radar has a maximum range scale of 96 nautical miles.
• What is the power output? It features a powerful 110-watt solid-state transmitter, which is equivalent to the performance of a 12 kW magnetron radar.
• What power source is required? The system requires a nominal supply voltage of 12 V dc or 24 V dc, with an operating range of 10.2 V dc to 31.2 V dc.
• Is it waterproof? Yes, the radar pedestal has a waterproof rating of IPX6.
• What is its wind rating? The unit is engineered for extreme conditions with a best-in-class 100-knot wind rating.
• What displays is it compatible with? It integrates seamlessly with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays.
• What is RangeFusion technology? RangeFusion™ technology is a feature that combines short and long radar pulses into a single, high-clarity image, providing exceptional short-range and long-range target detection simultaneously.
• How does the Bird Mode work? The Enhanced Cyclone Bird Mode intelligently optimizes gain and tune settings to image and locate distant sea birds, helping identify potential fishing grounds.
• How fast does the antenna rotate? It has a fast rotational speed of 60 RPM, which delivers real-time 360-degree awareness and accurate target tracks, even at high vessel speeds.
• What is Doppler target tracking? Doppler target tracking (also known as Target Analyzer™) simplifies the interpretation of potential collision threats by automatically highlighting dangerous targets (moving toward your vessel) in red and safe or stationary targets in green.
