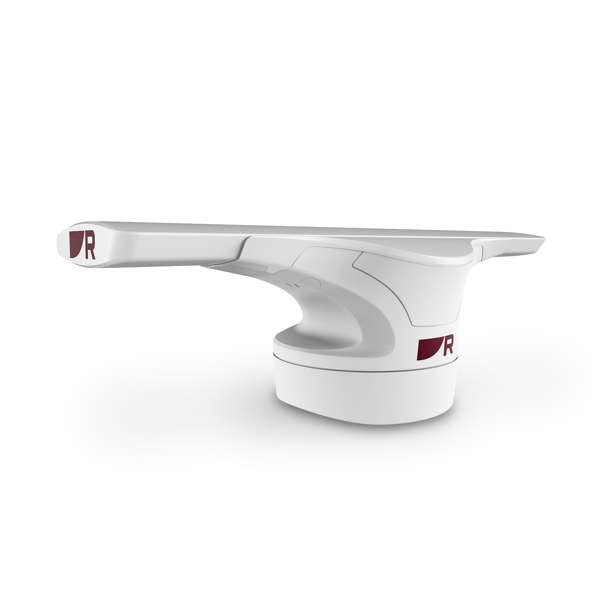

Raymarine Cyclone Pro 110 Watts 3ft Open Array Radar with 15m Cables

Raymarine Cyclone Pro 110 Watts 3ft Open Array Radar with 15m Cables

Raymarine Cyclone Pro 110 Watts 3ft Open Array Radar with 15m Cables are is a high-performance, solid-state marine radar system designed for superior target separation and situational awareness in all conditions.

Raymarine Cyclone Pro 110 Watts 3ft Open Array Radar with 15m Cables Key Features

• Solid-State CHIRP Technology: Utilizes 110 Watts of solid-state power and CHIRP pulse compression technology, equivalent to a 12 kW magnetron radar, for enhanced resolution and long-range target detection.
• Extended Range: Offers a maximum range of up to 96 nautical miles (NM).
• High-Speed Imaging: Features a fast 60 RPM rotational speed for real-time 360-degree awareness and accurate tracking of fast-moving targets.
• Advanced Target Tracking: Includes integrated Doppler target tracking to automatically color-coded dangerous (red) and safe (green) targets, and professional-grade ARPA (Automatic Radar Plotting Aid) that tracks up to 50 simultaneous targets.
• RangeFusion™ Technology: Combines short- and long-range radar pulses into a single, high-clarity image, providing excellent near and far views simultaneously.
• Enhanced Bird Mode: The system's gain and tune settings are intelligently optimized for locating distant sea birds, which is a key indicator for finding fish.
• Rugged Design: Engineered to meet the commercial-grade IEC 62388 standard, with a best-in-class 100-knot wind rating and IPX6 waterproofing.
• Low Profile & Easy Installation: The aircraft-wing inspired design features a low 13.1-inch (335 mm) profile and an innovative pedestal that conceals cable connections for a cleaner setup.
• Compatibility: Compatible with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL chartplotter multifunction displays.

Raymarine Cyclone Pro 110 Watts 3ft Open Array Radar with 15m Cables FAQs

• Which Raymarine displays are compatible with the Cyclone Pro radar? The
  Raymarine Cyclone Pro radars  are designed to integrate seamlessly with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays (MFDs). They are not compatible with older a-Series MFDs.
• Can I use my existing radar cables? In most cases, installing a new radar scanner requires changing the interconnect cable. Raymarine may offer adapters for specific older models (e.g., Digital or HD Digital radar scanners), but you should consult with technical support or an installer for specific options.
• What are the power requirements? The system operates using a nominal 12V dc or 24V dc power source (via the VCM100 module included in the package). The minimum voltage is 10.2V dc, and the maximum is 31.2V dc.
• What is the maximum range of the radar? The Cyclone Pro 110W radar has a maximum theoretical range of 96 nautical miles (nm). Actual detection range depends on factors like the mounting height and target height.
• What is the equivalent magnetron power? The 110-watt solid-state power output is equivalent to a 12 kW magnetron radar.
• What is "Bird Mode" and "RangeFusion"?
  • Bird Mode intelligently optimizes gain and tune settings to help locate distant sea birds, which is useful for finding fish.
  • RangeFusion technology combines short and long pulse radar images into a single, high-clarity display, providing excellent short-range and long-range situational awareness simultaneously.
• How fast is the radar imaging? The radar has a high-speed rotational capability, up to 60 RPM, delivering real-time, 360-degree awareness
