Raymarine Cyclone 55 Watts 4ft Open Array Radar with 15m Cables

Raymarine Cyclone 55 Watts 4ft Open Array Radar with 15m Cables

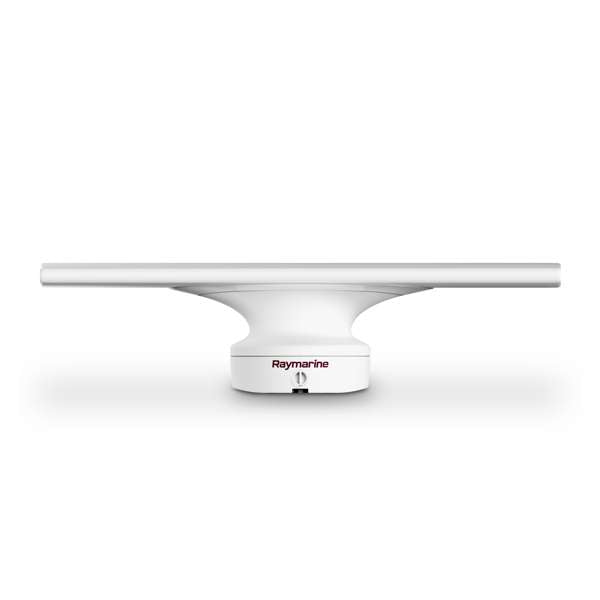

Raymarine Cyclone 55 Watts 4ft Open Array Radar with 15m Cables are a high-performance, solid-state marine radar system that delivers superior target separation and long-range resolution, equivalent to a 6kW magnetron radar. It is engineered for extreme weather conditions and provides advanced situational awareness through several innovative technologies.

Raymarine Cyclone 55 Watts 4ft Open Array Radar with 15m Cables Key Features

• Solid-State CHIRP Pulse Compression: This technology provides excellent target separation and long-range resolution, with a maximum range scale of up to 72 nautical miles.
• RangeFusion™ Technology: This feature combines short and long radar pulses into a single, high-clarity image, offering exceptional near and distant target detection simultaneously for easy interpretation.
• Doppler Target Tracking: The system automatically tracks up to 50 targets and uses a color-coding system (red for dangerous/inbound targets, green for safe/outbound targets) to simplify the interpretation of potential collision threats.
• High-Speed Imaging: A fast rotational speed of up to 60 RPM provides 360 degrees of awareness and accurate, real-time target tracks, which is especially useful in high-traffic situations or at high boat speeds.
• Cyclone Bird Mode: This performance-tuned feature intelligently optimizes gain and tune settings to help locate sea birds, which can be an indicator of fish presence.
• Rugged Design: The radar features an aircraft-wing-inspired design with a best-in-class 100-knot wind rating and is designed to meet the commercial-grade IEC 62388 standard for shipborne radar.
• Clean Installation: The innovative pedestal design includes a built-in cable gland that conceals all cable connections for a cleaner, more professional installation.

Specifications:

Raymarine Cyclone 55 Watts 4ft Open Array Radar with 15m Cables FAQs

• What is the power output and range? The radar has a peak power output of 55 Watts, which is equivalent to a 6 kW magnetron radar. It offers a maximum range scale of 72 nautical miles (NM).
• What innovative technologies does it include? It features CHIRP pulse compression and beam sharpening technology for excellent target separation and long-range resolution. It also includes Doppler target tracking (inbound targets are coloured red, outbound are green), Bird Mode (adjusts settings to locate sea birds and fish schools), and RangeFusion technology for a clear, single high-resolution image of both near and distant targets.
• What are the physical specifications and durability? The pedestal is 335 mm (13.1 inches) tall. The total weight of the pedestal and antenna is approximately 26 kg (57.3 lbs). It has a commercial-grade IPX6 waterproof rating and is engineered to withstand winds up to 100 knots.
• What power and data connections does it use? It uses a VCM100 Voltage Converter Module and is compatible with 12V or 24V DC systems. It has one power connector and one RayNet connector for data.
• What displays are compatible with this radar? The Raymarine Cyclone 55 Watts 4ft Open Array Radar  is designed to work with Raymarine Axiom chartplotter displays (requires the LightHouse Hvar 3.16 software update) and other compatible Raymarine MFDs. It is generally only compatible with displays from the same manufacturer.
• Can I use my existing radar mounting or old cables? The Cyclone radar requires a specific mounting. Existing mounts and cables from older analogue or different brand radars are likely not compatible.
