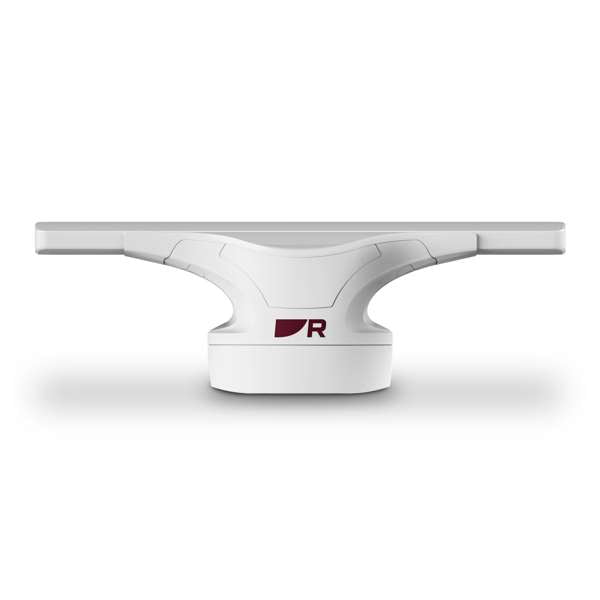

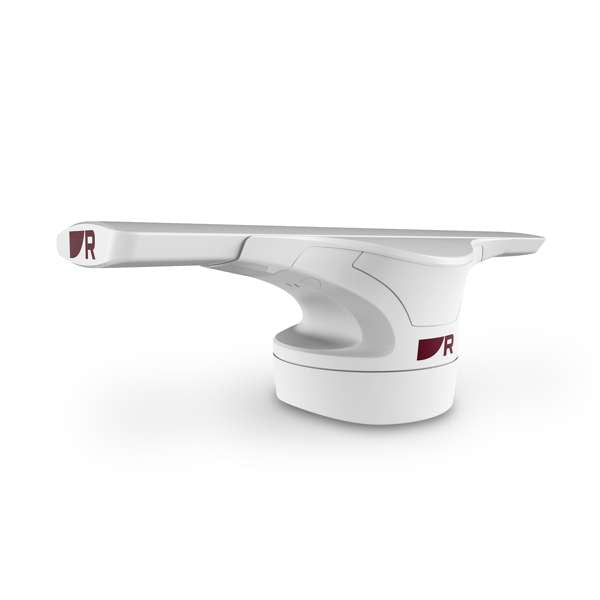

Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables

Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables

Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables are a solid-state marine radar system that uses CHIRP pulse compression and beam sharpening technology to provide excellent target separation and long-range resolution. Its 55W power output is equivalent to a 6kW magnetron radar, offering a maximum range of up to 72 nautical miles.

Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables Key Features

• Technology: The radar uses solid-state CHIRP pulse compression and Raymarine beam sharpening technology for high-resolution imaging and target separation.
• Performance: It has a maximum range scale of 72 nautical miles and is engineered to withstand extreme weather conditions with a best-in-class 100-knot wind rating.
• Situational Awareness:
  • High-speed 60 RPM imaging provides 360 degrees of awareness and accurate target tracks in real-time.
  • Doppler target tracking simplifies the interpretation of dangerous targets (highlighted in red) and safe targets (highlighted in green).
  • RangeFusion™ technology combines short- and long-range pulses into a single, high-clarity image for simultaneous display of near and distant targets.
  • Cyclone Bird Mode is performance-tuned to automatically optimize gain and tune settings for locating distant sea birds.
• Tracking: It features professional-grade ARPA target tracking, automatically tracking up to 50 targets.
• Design & Installation:
  • Features a low profile design (13.1 inches tall) and an innovative pedestal with a built-in cable gland for a cleaner installation.
  • Meets the commercial grade IEC 62388 standard for shipborne radar.
  • Includes 15m data and power cables.
• Connectivity: Equipped with one RayNet (Ethernet) connector and a power connector.
• Compatibility: Integrates seamlessly with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays (requires Lighthouse Hvar 3.16 software update or later)

Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables FAQs

• What is the maximum range? The Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables has a maximum range scale of 72 nautical miles.
• How powerful is the transmitter? It features a 55-watt solid-state transmitter, which is equivalent to a 6kW magnetron radar in performance.
• How much does the scanner weigh? The total weight of the pedestal plus the 3ft antenna array is 23 kg.
• What are the physical dimensions and wind rating? The radar scanner has a low profile of 335 mm (13.2 in) tall. It is engineered to withstand wind speeds up to 100 knots (185 km/h).
• What are the power requirements? The maximum power consumption is 170W, with a standby power of 30W.
• What is the waterproof rating? The unit has a waterproof rating of IPX6.
• What advanced features does it offer?
  • Key features include CHIRP pulse compression technology for superior target separation, Doppler target tracking to color-coded dangerous targets (moving toward you in red, moving away in green), Range Fusion™ technology for combining short and long-range images into a single display, and an enhanced Bird Mode for finding distant sea birds.
• What is the rotational speed? It offers a fast rotational speed of up to 60 RPM, which provides real-time 360-degree awareness and accurate target tracking.
• Is it a commercial-grade product? Yes, it is designed to meet the commercial-grade IEC 62388 standard for shipborne radar.
• What displays is it compatible with? The radar integrates seamlessly with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays.
• Does it come with cables? Yes, a 15m data and power cable is included.
• Where should I mount the radar scanner? The scanner should be mounted as high as practical above the waterline. Because radar is a line-of-sight device, a higher mounting position improves long-range performance and minimizes exposure to electromagnetic radiation above head level.
