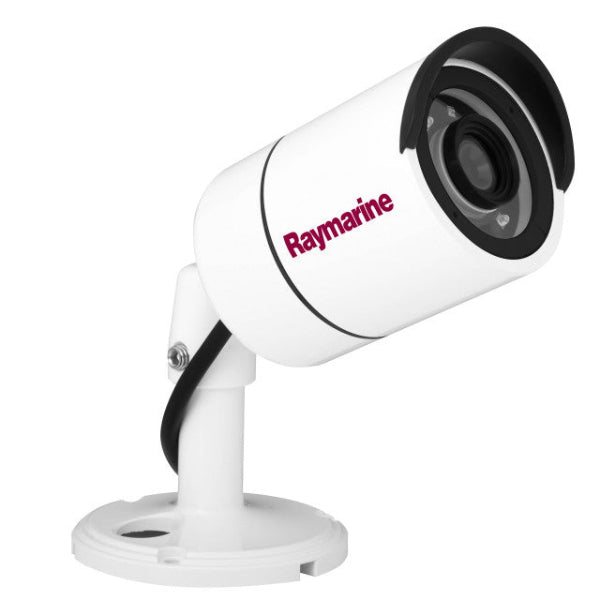

Raymarine CAM210 Bullet CCTV Day and Night Video Camera (IP Connected)

Raymarine CAM210 Bullet CCTV Day and Night Video Camera (IP Connected)

The NEW Raymarine CAM210 IP Marine Camera is a ruggedised, high definition, day and night network bullet video camera suitable for all above deck applications. Featuring plug and play integration with Raymarine multifunction displays running Lighthouse II, high bright IR LEDs for operation in total darkness, intelligent IR technology for clear video images at night in all conditions, integrated sun-cover for maximum visibility and compact size for easy installation anywhere on the boat. In addition, the Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke), also the CAM210 can be powered over Ethernet (PoE) or direct 12v DC power supply.

• Day & Night Bullet Video Camera
• High Bright IR LEDs
• Integrated Suncover
• Compact Size - Easy Installation
• Compatible with Raymarine MFD’s running Lighthouse II & Lighthouse III
• Digital Defog
• Image Sensor - 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
• Lens - 6.0mm Megapixel Board Lens
• Total Pixels - 1952(H) x 1116(V) 2.18 Megapixel
• Effective Pixels - 1944(H) x 1104(V) 2.15 Megapixel
• FOV Diagonal - 63.6 deg +/- 3 deg
• FOV Horizontal - 53.3 deg +/- 3 deg
• FOV Vertical - 33.1 deg +/- 3 deg
• IR Distance - 20m
• Video Compression - H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps
• Resolution - Up to 1920 x 1080 (Full HD)
• Frame Rate - H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
• Digital Pan, Tilt and Zoom
• CPU - 32-bit ARM9 RISC CPU up to 432MHz
• Flash - 128MB | SDRAM - 128MB
• Dimensions (Including Bracket) - 83.8mm x 155mm x 178.1mm | W x H x D
• Power over Ethernet (PoE) or Direct 12v DC Power Supply
