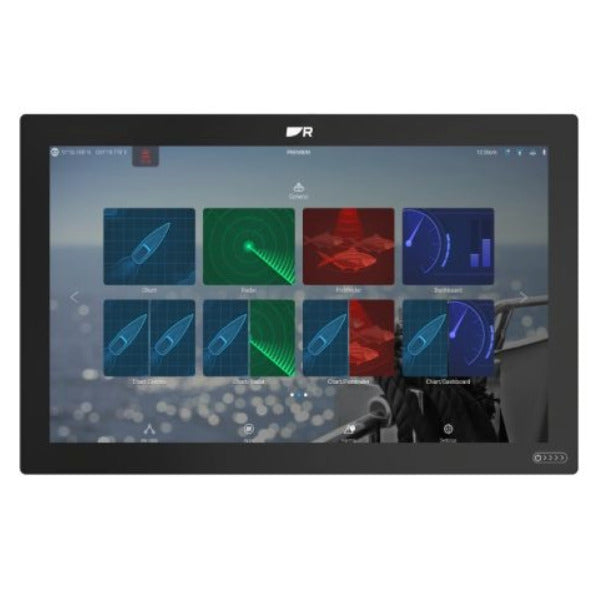

Raymarine AXIOM2 XL 22- 21.5" Glass Bridge Multi-function Display

Raymarine AXIOM2 XL 22- 21.5" Glass Bridge Multi-function Display

Raymarine AXIOM2 XL 22- 21.5" Glass Bridge Multi-function Display is the flagship chartplotter of the Axiom family, offering powerful performance and extensive networking capabilities for a premium marine navigation experience. Designed for all weather conditions with rugged, ultra-bright displays, it runs on the intuitive LightHouse operating system.

Raymarine AXIOM2 XL 22- 21.5" Glass Bridge Multi-function Display Key Features

• Powerful 6-Core Processor: Allows for faster chart rendering and smoother video frame rates, improving overall speed and performance.
• HydroTough™ Display Technology: The exclusive nano-coating repels water, ensuring confident touchscreen control and superior visibility in direct sunlight. An ambient light sensor automatically adjusts the brightness for day and evening conditions.
• Extensive Networking & Integration: Features three Power-over-Ethernet (PoE) ports, NMEA2000, and NMEA 0183 support for seamless integration with a wide array of marine systems including radar, sonar modules, autopilot, FLIR thermal cameras, and engine data from brands like Mercury and Yamaha.
• Advanced Navigation & Safety Tools:

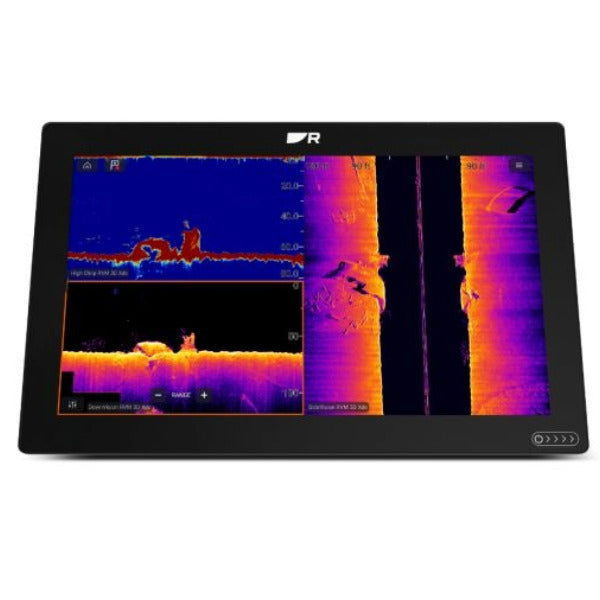

  • Sonar: Compatible with high-performance CHIRP sonar modules like the CP570 or RVM1600 with RealVision MAX (SideVision, DownVision, and 3D fish finder) for detailed underwater views.
  • Augmented Reality: Supports ClearCruise augmented reality by adding a CAM300 and AR200 sensor, overlaying AIS, waypoints, and chart objects onto high-definition video.
  • Sailing Features: Includes advanced sailing tools such as layline overlays, preloaded polars, and race timers to optimize performance.
• Multimedia and Connectivity: Features HDMI input and output for connecting to remote monitors or integrating onboard PC applications, along with analogue audio output for marine entertainment systems. Built-in dual-band Wi-Fi allows for control and viewing on a compatible smartphone or tablet via the Raymarine Mobile App.
• Ample Storage: Comes with 64 GB of internal solid-state storage for waypoints, apps, and LightHouse Charts.

Raymarine AXIOM2 XL 22- 21.5" Glass Bridge Multi-function Display FAQs

• What is the display size and resolution? The display is a 21.5-inch IPS LCD with a 1920 x 1080 resolution.
• Is the display visible in direct sunlight? Yes, it features an ultra- bright HydroTough™ nano-coating which repels water and oils and improves visibility in sunlight. It also has an ambient light sensor that automatically adjusts brightness for various lighting conditions.
• What operating system does it use? It runs on Raymarine's intelligent LightHouse 4 operating system.
• What kind of processor does it have? It is powered by a 6-core processor designed for faster performance, including quicker chart rendering and smooth video.
• Does it have built-in GPS? Yes, it has an integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation.
• Can I connect other devices like radar or sonar Yes, it has extensive connectivity options, including three Power-Over-Ethernet (PoE) ports, NMEA2000 support, HDMI input and output, and USB, allowing integration with radar, sonar modules, autopilot, thermal cameras, and more.
• Does it support Wi-Fi and Bluetooth? Yes, it has built-in dual-band Wi-Fi and Bluetooth V4.0 for connectivity, including the ability to view and control the display from a mobile device using the Raymarine mobile App.
• Where are the SD card slots located? External storage requires a remote card reader (RCR-SD reader is included as an accessory). There are no built-in SD card slots on the display unit itself.
