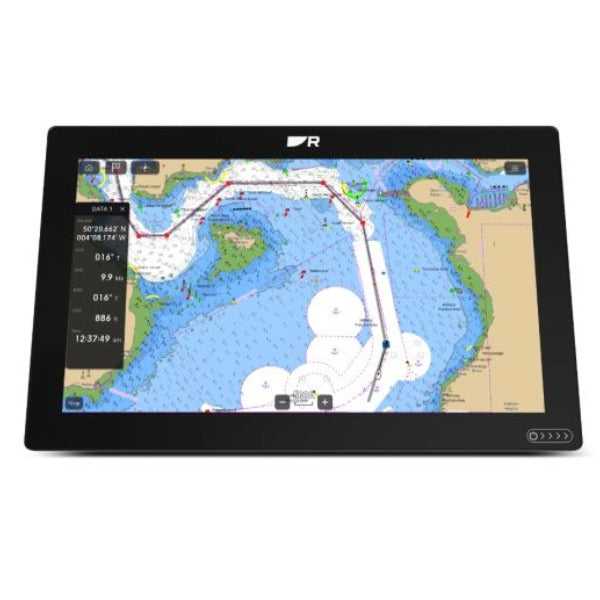

Raymarine AXIOM2 XL 19 - 18.5" Glass Bridge Multi-function Display
Raymarine AXIOM2 XL 19 - 18.5" Glass Bridge Multi-function Display are a 18.5" flagship glass bridge multifunction display (MFD) designed for premium vessels and large-format navigation. It is engineered to perform in all weather conditions, from open cockpits to enclosed bridge stations.
Raymarine AXIOM2 XL 19 - 18.5" Glass Bridge Multi-function Display Key Features
- Performance: Powered by a 6-core processor for responsive chart rendering (30% faster than previous models) and fluid multi-touch performance.
- Display: Features an 18.5-inch IPS LCD with 1920 x 1080 Full HD resolution. Its HydroTough™ nano-coating repels water and oils to ensure reliable touch control and 1,200 nits of sunlight visibility.
- Connectivity: Includes three Power-over-Ethernet (PoE) ports for connecting cameras, radar, and other MFDs. It also features HDMI input/output, NMEA 2000, and built-in Wi-Fi and Bluetooth.
- Integration: Supports advanced engine integration with Mercury SmartCraft and Yamaha Command Link, as well as full control of FLIR thermal cameras and sonar modules.
- Operating System: Runs LightHouse 4, which offers a fast, intuitive interface and supports third-party apps like Netflix and Spotify.
- Dimensions: 461.78 x 289.44 x 174.95 mm (18.18 x 11.40 x 6.89 in).
- Internal Storage: 64 GB Solid State (expandable via remote card reader).
- Power: 12/24 V DC nominal supply; consumption is approximately 85.42W at 12V.
- Waterproofing: Rated IPX6 and IPX7.
Raymarine AXIOM2 XL 19 - 18.5" Glass Bridge Multi-function Display FAQs
- What is the display resolution and brightness? The display has a 1920 x 1080 pixels resolution and a brightness of 1200 nits (or cd/m2).
- Is the screen visible in direct sunlight? Yes, it features an ultra-bright HydroTough nano-coating which repels water and ensures excellent sunlight visibility and reliable touchscreen control.
- How fast is the processor? The display is equipped with a powerful 6-core processor which enables faster chart rendering (30% faster) and smooth video frame rates compared to the previous generation.
- Does the display brightness adjust automatically? Yes, an ambient light sensor automatically adjusts the display brightness for optimal viewing in both day and evening conditions.
- Can I connect external devices like radar, sonar, and cameras? Yes, the AXIOM 2 XL has extensive networking options including three Power-over-Ethernet (PoE) ports and NMEA 2000 support, simplifying the integration of radar, sonar modules (like the CP570 or RVM1600), autopilot, FLIR thermal cameras, and more.
- Does it have Wi-Fi and Bluetooth? Yes, it has built-in dual-band Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth V4.0, allowing you to view and control the display on a compatible smartphone or tablet using the Raymarine Mobile App.
- Can I connect it to my engine systems? Yes, it supports integration with NMEA2000-compatible engines and offers advanced integration capabilities for Mercury SmartCraft and Yamaha Command Link engines.
- What are the available video and audio ports? It includes HDMI input and output ports for connecting remote monitors/HDTVs or integrating onboard PC applications, as well as analogue audio output (left and right RCA connectors via a power cable) for marine entertainment systems.
