Raymarine AXIOM2 XL 16 - 15.6" Glass Bridge Multi-function Display

Raymarine AXIOM2 XL 16 - 15.6" Glass Bridge Multi-function Display

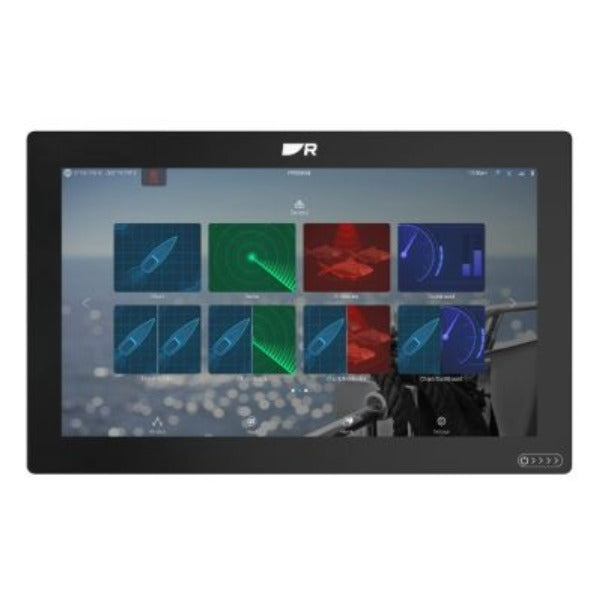

Raymarine AXIOM2 XL 16 - 15.6" Glass Bridge Multi-function Display is the flagship of the Axiom family, delivering powerful performance and advanced networking capabilities for premium marine navigation. It is a rugged, all-weather touchscreen display designed for both open cockpits and enclosed glass bridge stations, running on the intuitive LightHouse operating system

Raymarine AXIOM2 XL 16 - 15.6" Glass Bridge Multi-function Display Key Features

• Powerful Processing: The display is equipped with a powerful 6-core processor, which enables faster chart rendering (30% faster) and smooth video frame rates, allowing seamless integration of radar, sonar, autopilot, and video.
• Superior Display Technology: It features an ultra-bright 15.6" Full HD (1920 x 1080 pixels) IPS display with 1300 nits of brightness, ensuring excellent visibility in direct sunlight and wide viewing angles. The exclusive HydroTough™ nano-coating technology repels water for reliable touchscreen control in all conditions.
• Extensive Integration and Networking:
  • Connectivity: Features three Power-over-Ethernet (PoE) ports, NMEA 2000, HDMI input and output, USB, Bluetooth, and dual-band Wi-Fi.
  • System Integration: Can be expanded with a wide range of modules including Quantum 2 or Cyclone radar, CHIRP and 3D sonar modules (like the RVM1600 RealVision Max), FLIR thermal cameras, and engine integration for NMEA2000-compatible or Mercury/Yamaha engines.
  • Augmented Reality: Supports ClearCruise augmented reality by adding a CAM300 and AR200 sensor, overlaying AIS data, waypoints, and chart objects on high-definition video.
• Intuitive Operation: It runs on the LightHouse operating system, which provides an intuitive, fluid interface for managing all navigation data. An ambient light sensor automatically adjusts the display brightness for day and evening conditions.
• Multimedia and Control: Allows streaming of entertainment apps like Netflix and Spotify, and audio output can be integrated with marine entertainment systems. Full control is available via the touchscreen or the optional RMK-10 remote keypad.
• Durable Design: The unit has a rugged, waterproof rating of IPx6 and IPx7, designed to perform in extreme marine environments. It has 64 GB of internal solid-state storage for charts, waypoints, and apps

Raymarine AXIOM2 XL 16 - 15.6" Glass Bridge Multi-function Display FAQs

• What is the display type and resolution? The display is a 15.6" IPS (In-Plane Switching) LCD with a resolution of 1920 x 1080 pixels. This provides wide viewing angles and clear visibility.
• Is the display easy to see in direct sunlight? Yes, it features a high brightness of approximately 1,300 nits and HydroTough™ nano-coating technology to repel water and ensure excellent visibility and reliable touchscreen control even in bright sunlight.
• What operating system does it use? It runs on the intelligent LightHouse operating system.
• How fast is the processor? The unit is equipped with a powerful 6-core processor, which allows for faster chart rendering (up to 30% faster) and smooth operation when multitasking with radar, sonar, and video.
• Does it have built-in sonar? No, a separate sonar module (like the RVM1600 RealVision Max) is required to enable full sonar capabilities.
• Can I connect external devices? Yes, it offers extensive connectivity options including three Power-over-Ethernet (PoE) ports, NMEA 2000 support, HDMI input/output, and analog audio output for integrating various marine systems, cameras, remote displays, and entertainment systems.
