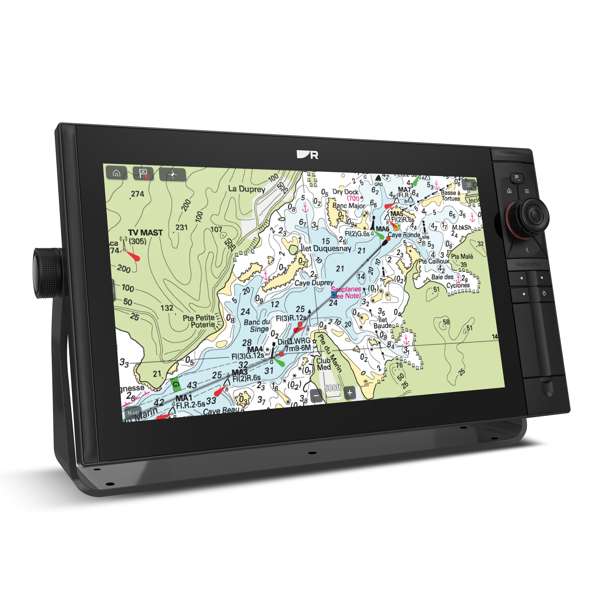

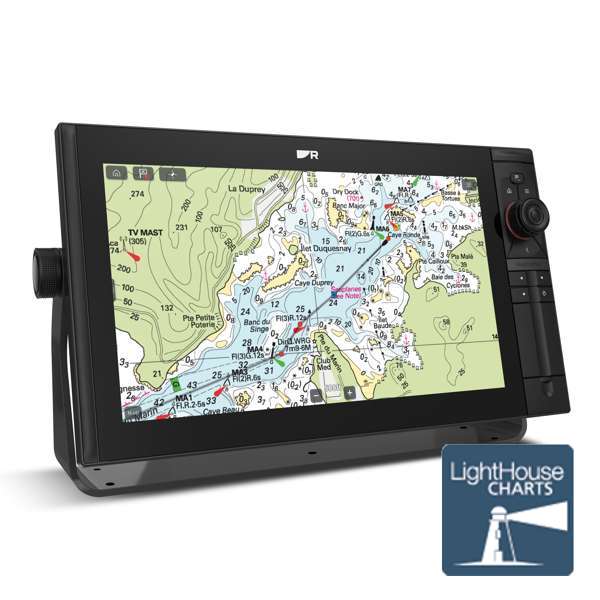

Raymarine AXIOM2 Pro 16 S, HybridTouch 16" Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S are a powerful all-in-one marine navigation system featuring a 16-inch full-HD touchscreen with integrated High CHIRP Conical Sonar for reliable depth sounding. It runs on a fast 6-core processor and the intuitive LightHouse operating system, combining chartplotting, sonar, radar, autopilot, and video integration.

Raymarine AXIOM2 Pro 16 S, HybridTouch 16" Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S Key Features

• Display: A 15.6-inch (16:10 aspect ratio) optically bonded IPS display with a bright 1200 nits illumination and Full HD resolution (1920 x 1080) for excellent sunlight visibility. It features HydroTough™ nano-coating technology which repels water for reliable touchscreen control.
• Control: The unit offers HybridTouch™ control, allowing seamless switching between responsive touchscreen operation and reliable keypad control for use in rough seas. The keypad is interchangeable with an optional dedicated Evolution autopilot keypad.
• Processor: Powered by a fast 6-core processor that ensures quick chart rendering and seamless integration of all functions and connected devices.
• Integrated Sonar: Features built-in single-channel High CHIRP conical sonar, which is designed for reliable depth monitoring and general underwater exploration. It supports CPT-S series transducers (transducer not included in some packages) and has a depth range of up to 274 meters (900 feet).
• Networking and Expansion: The system is highly expandable with two RayNet Ethernet ports and NMEA 2000 connectivity, allowing integration with radar, external sonar modules (like the CP470 or CP570 for 1kW CHIRP), FLIR thermal cameras, and other marine electronics.
• Navigation & Sailing Tools: Supports LightHouse Charts, Navionics, and C-MAP cartography. It includes advanced sailing tools like dynamic laylines, preloaded polar profiles for over 500 sailboats, and a SmartStart™ starting line tool for racing.
• Connectivity: Built-in Wi-Fi and Bluetooth enable smartphone control, display mirroring on mobile devices, and streaming of apps like Netflix and Spotify.

In essence, the Raymarine AXIOM2 Pro 16 S serves as a central, high-performance navigation hub for cruisers and sailors, providing a comprehensive set of features in a durable, user-friendly interface.

Raymarine AXIOM2 Pro 16 S, HybridTouch 16" Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S FAQs

• What operating system does it use? The unit runs on Raymarine's intuitive LightHouse operating system, enabling seamless integration of chartplotter, radar, autopilot, and video functions.
• Does it have both touchscreen and keypad control? Yes, it features HybridTouch control, offering the flexibility of both a water-repellent touchscreen (HydroTough™ nano-coating) and reliable keypad control for use in rough seas.
• What kind of processor does it have? It is powered by a powerful 6-core processor for ultra-fast performance and the ability to run multiple apps simultaneously.
• Can I control it with my smartphone or tablet? Yes, the built-in Wi-Fi allows you to view and control the display on a compatible phone or tablet using the Raymarine mobile app.
• Can I stream entertainment on the display? Yes, you can stream apps like Netflix and Spotify and connect to compatible marine audio systems, or use the HDMI output for remote displays.
• What type of sonar is integrated? The AXIOM2 Pro 16 S model features an integrated High CHIRP conical sonar for reliable depth soundings and underwater discovery.
• What is the maximum depth range of the integrated sonar? The High CHIRP conical sonar has a depth range of approximately 0.6 m (2 ft) to 274 m (900 ft), depending on water conditions.
• What type of transducer connection does it use? It uses a 25-pin RealVision type connector. To connect CPT-S style transducers, an A80490 adapter cable is required.
• Can I add other types of sonar, like SideVision or 3D? The "S" variant only has built-in High CHIRP conical sonar. For features like CHIRP DownVision, SideVision, or RealVision 3D, you would need the Raymarine mobile app.  or connect external sonar modules (CP100, CP200, CP370, CP470, CP570) via RayNet.
• Does the 16-inch model come with a trunnion bracket? No, the trunnion bracket for the 16-inch model is a separate purchase. It supports both flush mounting and trunnion bracket mounting.
• How many network ports does it have? The unit is equipped with two RayNet Ethernet ports and one NMEA 2000 port, allowing for a flexible and expansive network of devices like radar and extra displays.
• What power supply does it require? It operates on both 12V and 24V DC systems.
