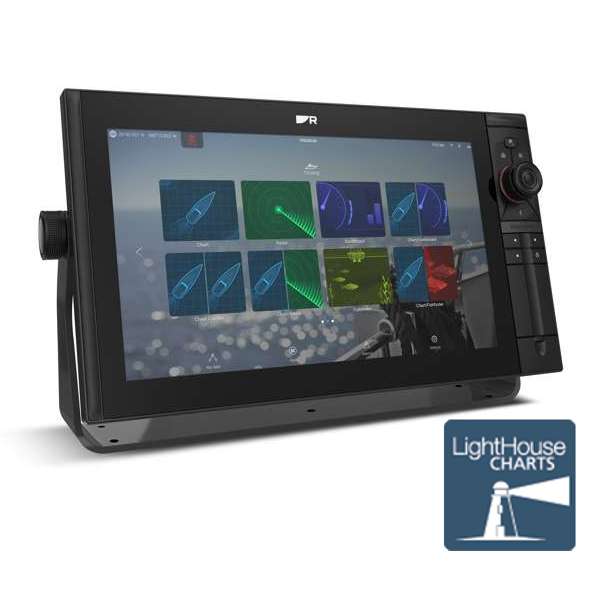

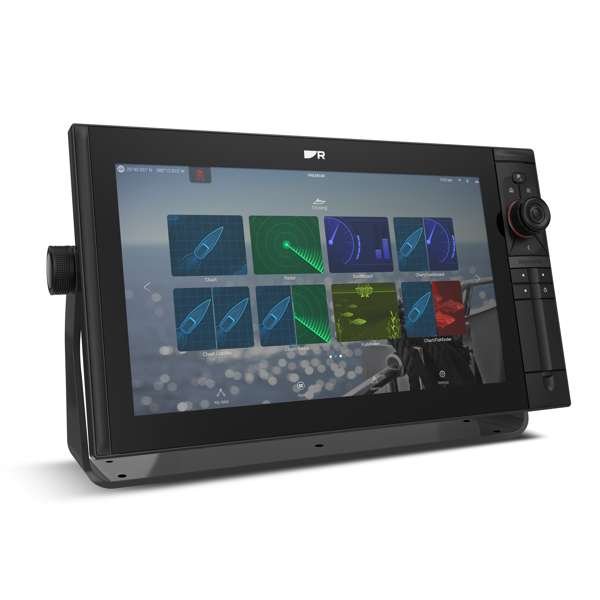

Raymarine AXIOM2 Pro 16 RVM, HybridTouch 16" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar

Raymarine AXIOM2 Pro 16 RVM, HybridTouch 16" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar

Raymarine AXIOM2 Pro 16 RVM, HybridTouch 16" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar are a high-performance 16-inch multi-function display (MFD) designed as an all-in-one navigation and fishing system for 2026. It features a fast 6-core processor and runs on the intuitive LightHouse operating system.

Raymarine AXIOM2 Pro 16 RVM, HybridTouch 16" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar Key Features

• Increased Performance: RealVision MAX offers improved range, better resolution, and sharper fish targets compared to previous generations.

Raymarine AXIOM2 Pro 16 RVM, HybridTouch 16" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar FAQs

• Can I integrate the AXIOM2 Pro with my existing marine electronics? Yes, it integrates via NMEA 2000, SeaTalkng, Ethernet, and HDMI.
• Is it compatible with mobile devices? Yes, built-in Wi-Fi supports use with the Raymarine mobile app.
• What power supply is required? It operates on 12V or 24V DC systems.
• What is HydroTough nano-coating? This coating repels water for better touchscreen use and visibility on the 16-inch display.
• Does the screen brightness adjust automatically? Yes, an ambient light sensor automatically adjusts brightness.
• What are the mounting options? It supports flush and trunnion bracket mountin
• What is the primary difference between the AXIOM2 Pro and its predecessor, the AXIOM Pro? The AXIOM2 Pro features a faster six-core processor for seamless multitasking, the enhanced Lighthouse 4 operating system, and improved screen brightness. It also includes the advanced RealVision MAX sonar technology in the RVM models and the water-repellent HydroTough™ nano-coating on the display for reliable performance in all conditions.
• What is HybridTouch control? HybridTouch provides the flexibility of both a responsive touchscreen for ease of use in calm conditions and robust, reliable keypad controls for confident command when seas are rough.
• Can I network the AXIOM2 Pro 16 RVM  with other devices? Yes, the unit is designed for extensive networking, featuring two RayNet Ethernet ports and one NMEA 2000 port. This allows for seamless integration with additional AXIOM displays, radar systems (like Quantum 2 radome or Cyclone open array), autopilot, and video cameras.
• Is the display compatible with my smartphone? Yes, built-in Wi-Fi allows you to connect your smartphone or tablet to view and control the
  AXIOM2 Pro  Raymarine mobile app
• What specific sonar technologies are integrated into the AXIOM2 Pro 16 RVM model ? The RVM model includes an integrated multi-channel fish finder with RealVision MAX CHIRP sonar, providing built-in DownVision, SideVision, and RealVision 3D imaging, plus a powerful 1kW dual-channel CHIRP traditional sonar for deep water fishing.
• What are the depth capabilities of the built-in sonar? According to Raymarine, the RealVision MAX capabilities offer depth ranges of up to 366 m (1,200 ft) for High CHIRP conical sonar, 183 m (600 ft) for DownVision, and 91 m (300 ft) for both SideVision and RealVision 3D. The 1kW CHIRP port can reach depths of up to 914.4 m (3,000 ft) in optimum conditions with a compatible 1kW transducer.
• Does the unit come with a transducer? No, the display unit typically does not include a transducer; it must be purchased separately to match your specific boating and fishing needs. Compatible options include Raymarine RVM-100 and RVM-400 series transducers.

• What power supply is required for the display? The AXIOM2 Pro 16 RVM
   operates on both 12V or 24V DC systems.
• How can I customize the data displays on the screen? You can customize data items (such as water temperature or GPS position) in the sidebar or as floating overlays. Long-press on a data readout, and you can edit it via the data library within the page settings menu.
• What sonar technologies are built-in? RVM models feature RealVision MAX sonar, including CHIRP DownVision, SideVision, RealVision 3D, and dual channel 1kW CHIRP sonar.
• What is RealVision MAX? RealVision MAX provides increased range, better resolution, and sharper fish targets.
• What are the depth capabilities? The system offers various depth ranges depending on the specific sonar technology used and transducer. Maximum depth ranges for different sonar types and a 1kW transducer in optimum conditions can be found on Raymarine website.
• Is a transducer included? No, a transducer is typically purchased separate
