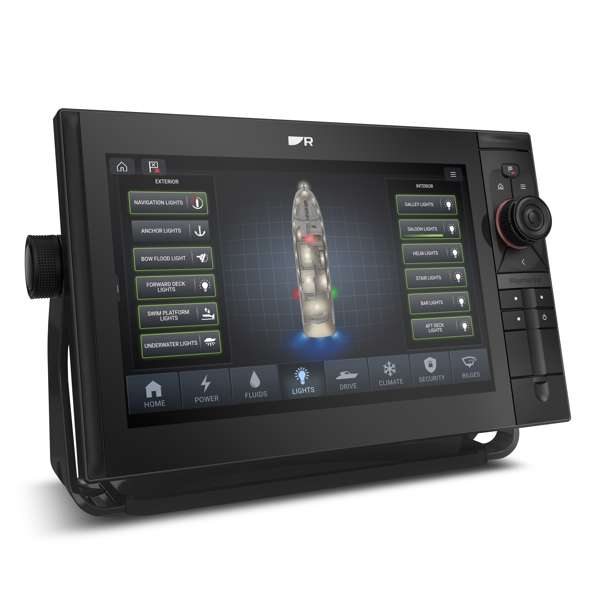

Raymarine AXIOM2 Pro 12 S, HybridTouch 12" Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S

Raymarine AXIOM2 Pro 12 S, HybridTouch 12" Multi-function Display

Raymarine AXIOM2 Pro 12 S, HybridTouch 12" Multi-function Display is a professionally crafted product description and feature list for the Raymarine Axiom 2 Pro 12 S, written specifically for the Morgan Marine Shopify store to engage your customers and drive conversions.

Raymarine Axiom 2 Pro 12 S – 12" HybridTouch MFD with Integrated High CHIRP Sonar
The Ultimate All-in-One Command Centre for the Serious Cruiser

At Morgan Marine, we know that when you’re navigating coastal waters or heading offshore, you need a system that is as reliable as it is powerful. The Raymarine Axiom 2 Pro 12 S is the successor to the legendary Axiom Pro, now supercharged with a lightning-fast 6-core processor and a stunning HydroTough™ display.

The "S" model is specifically engineered for sailors and cruisers. It features an integrated high-frequency CHIRP sonar, designed for exceptionally reliable depth tracking and clear underwater discovery without the complexity of multi-channel fishing sonar. Whether you are anchoring in a secluded cove or navigating a busy channel, the Axiom 2 Pro 12 S provides the clarity and speed you need to make informed decisions at the helm.

Confident Control in All Conditions

One of the reasons we recommend the Axiom 2 Pro series at Morgan Marine is the HybridTouch™ interface. It gives you the best of both worlds: intuitive multi-touch screen control for planning routes and a full physical keypad for when the weather turns snotty and you need the tactile security of buttons and a rotary controller.

Raymarine AXIOM2 Pro 12 S, HybridTouch 12" Multi-function Display Key Features

• Blazing Fast 6-Core Processor: Get underway in seconds. The upgraded processor ensures charts render instantly and multitasking between radar, sonar, and video is seamless.
• 12.1" HydroTough™ IPS Display: A super-bright (1200 nits) high-definition screen that is easy to read even in direct sunlight. The nano-coating repels water, oil, and smudges, ensuring your touch commands work perfectly even when the screen is wet.
• Integrated High CHIRP Sonar: Built-in single-channel CHIRP sonar (compatible with CPT-S transducers) provides accurate depth soundings and crisp bottom imagery down to 274m (900ft).
• Advanced Sailing Tools: Preloaded with over 500 polar profiles. View real-time dynamic laylines, race timers, and a "SmartStart" starting line tool to give you a tactical edge on the water.
• Evolution Autopilot Integration: Take full command of your Raymarine Evolution autopilot directly from the screen or use the interchangeable keypad for dedicated pilot control.
• ClearCruise™ Augmented Reality: Connect a CAM300 and AR200 sensor to see AIS targets, waypoints, and chart objects overlaid directly onto live high-definition video.
• Expandable Networking: Equipped with dual RayNet Ethernet ports and NMEA2000 connectivity, allowing you to build a massive system including Radar, FLIR Thermal, and multiple networked displays.
• Onboard Entertainment: Stream your favourite content with built-in apps for Spotify and Netflix, or output your display to a larger cabin TV via the micro-HDMI port.

Why Buy from Morgan Marine?

As a trusted Raymarine dealer for over 50 years, the team at Morgan Marine doesn't just sell boxes—we know this gear inside out. Whether you need advice on transducer compatibility (the Pro 12 S works perfectly with the CPT-S range) or help designing a full NMEA2000 backbone, we are here to ensure your installation is a success.

Technical Quick-Specs:

• • Screen: 12.1" WXGA (1280 x 800) IPS Touchscreen
  • Storage: 64GB Internal Solid State
  • GNSS: Built-in 10Hz GPS/GLONASS/Galileo/Beidou
  • Waterproofing: IPX6 and IPX7
  • Sonar Depth Range: 0.6m to 274m (subject to water conditions)

Morgan Marine Expert Tip: "

If you're upgrading from an older eSeries or original Axiom, the jump in speed with the Axiom 2 Pro is incredible. The new HydroTough screen is also a massive improvement for anyone who sails in the typical British 'drizzle'—it actually works when it's wet!"

Raymarine AXIOM2 Pro 12 S, HybridTouch 12" Multi-function Display FAQs

What is the difference between the "S" and the "RVM" models?

The Axiom 2 Pro S is designed primarily for sailors and cruisers. It features a built-in single-channel High CHIRP sonar, which is perfect for reliable depth tracking and clear bottom imaging. The RVM (RealVision MAX) model is geared more towards serious fishing, featuring multi-channel sonar for 3D imaging and SideVision. If you want a dependable, high-speed chartplotter with clear depth sounding, the "S" model is the perfect choice.

Do I need an adaptor cable for my transducer?

Yes. The Axiom 2 Pro S uses a 25-pin RealVision-style connector. To connect a standard CPT-S transducer (which we highly recommend for this unit), you will need the A80490 adaptor cable. This ensures a secure, waterproof connection for your sonar data.

Will the touchscreen work if it’s raining or if I have wet hands?

Absolutely. The Axiom 2 Pro features Raymarine’s new HydroTough™ nano-coating technology. This specially engineered surface repels water, oil, and smudges. Even in heavy rain or spray, the touchscreen remains responsive. Plus, if the weather gets truly rough, you have the physical HybridTouch™ keypad for total tactile control.

Can I customise the physical buttons on the unit?

Yes! One of the best features of the Axiom 2 Pro is the interchangeable keypad. You can choose to have a dedicated Evolution Autopilot control pad or use the user-programmable "soft" keys. This allows you to set up one-touch access to your most-used functions, such as your favourite radar page or a specific dimming level.

How much faster is the Axiom 2 Pro compared to the original Axiom Pro?

The difference is significant. The Axiom 2 Pro is powered by a new 6-core processor. This means the unit boots up faster, charts render almost instantly when panning or zooming, and there is zero "lag" when running multiple apps like Radar, Sonar, and AIS simultaneously.

Can I use this display to control my Autopilot?

Yes. The Axiom 2 Pro 12 S integrates perfectly with Raymarine Evolution Autopilots. You can engage the pilot, change headings, or follow a track directly from the touchscreen or the physical keypad. It essentially acts as a second (or primary) autopilot controller.

Does it support UK Hydrographic Office charts?

Yes. The unit is compatible with Raymarine LightHouse Charts (which are created from official UKHO data), as well as Navionics and C-MAP. This gives you the best possible detail for navigating UK coastal waters and beyond.

Can I watch TV or stream music on the Axiom 2 Pro?

You certainly can. The LightHouse OS includes built-in apps for Spotify and Netflix. You can connect the unit to your boat's audio system via Bluetooth or NMEA 2000. Additionally, the micro-HDMI output allows you to "mirror" your display onto a larger TV in the saloon or cabin.

What is "ClearCruise AR" and what do I need for it?

ClearCruise™ Augmented Reality overlays important navigation data—like AIS targets and waypoints—directly onto a live video feed from a camera. To use this on your Axiom 2 Pro 12 S, you would need to add a CAM300 camera and an AR200 sensor module. It’s a fantastic tool for making sense of busy shipping lanes at a glance.

Can I network this with my older Raymarine displays?

The Axiom 2 Pro 12 S uses RayNet (Ethernet) for high-speed networking. It is fully compatible with other Axiom, Axiom+, Axiom Pro, and Axiom XL displays. If you have older "eSeries" or "cSeries" displays, please contact us at Morgan Marine; while some data can be shared via NMEA 2000, they cannot share full radar or sonar imagery over the network.
