Raymarine AXIOM2 Pro 12 RVM, HybridTouch 12" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar

Raymarine AXIOM2 Pro 12 RVM, Hybrid Touch 12" Multi-function Display with integrated 1kW Sonar, DV, SV and Real Vision 3D Sonar

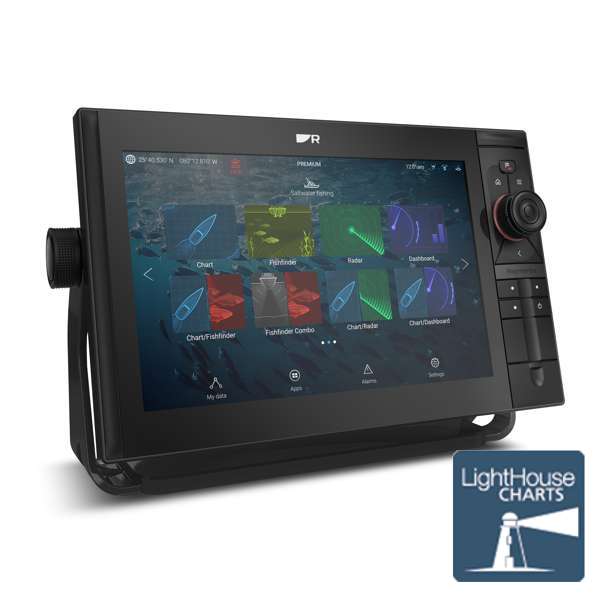

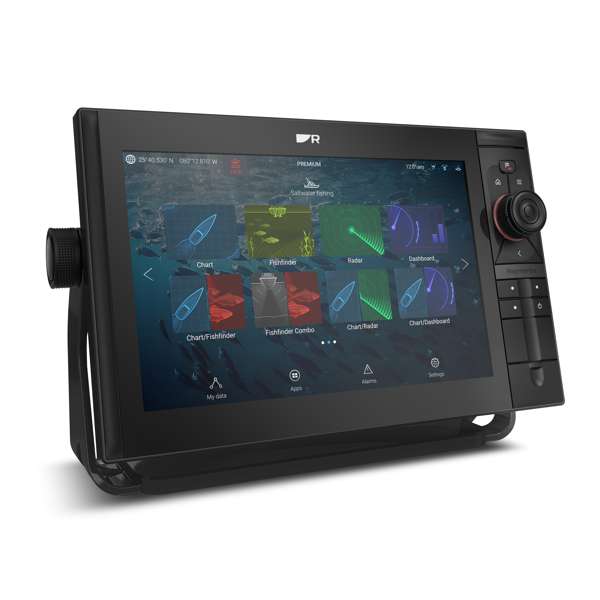

Raymarine AXIOM2 Pro 12 RVM, Hybrid Touch 12" Multi-function Display with integrated 1kW Sonar, DV, SV and Real Vision 3D Sonar are a high-performance 12.1-inch Hybrid Touch multifunction display that serves as an all-in-one navigation and fish-finding system, featuring a powerful 6-core processor and integrated Real Vision MAX sonar technology.

Raymarine AXIOM2 Pro 12 RVM, Hybrid Touch 12" Multi-function Display with integrated 1kW Sonar, DV, SV and Real Vision 3D Sonar Key Features

• Powerful Performance: The unit is powered by a fast 6-core processor for quick, seamless integration of GPS, sonar, radar, and video, running the intuitive Light House operating system.
• Hybrid Touch Control: It offers flexible operation with both a responsive, water-repellent Hydro Tough™ touchscreen and dedicated keypad controls for reliable command in all sea conditions.
• Superior Display: The 12.1" IPS (In-Plane Switching) display with 1200 nits brightness provides enhanced colours and excellent visibility, even in direct sunlight, with smart backlighting that adjusts automatically to ambient light.
• Advanced Sonar Technology: The RVM model features built-in multi-channel Real Vision MAX CHIRP sonar, which includes:
  • Down Vision (DV): Provides photo-like imagery of the world directly beneath your boat (up to 183m or 600ft).
  • Side Vision (SV): Offers a wide view of fish and structure to the sides of the vessel (up to 91m or 300ft).
  • Real Vision 3D: Creates a detailed, three-dimensional view of the underwater environment, structure, and fish targets.
  • 1kW Traditional CHIRP Sonar: A dual-channel 1kW high CHIRP fish finder port is included for deep water fishing, capable of reaching depths up to 914.4m (3,000ft) in optimal conditions (transducer dependent).
• Networking and Integration: The
  Axiom 2 Pro 12 RVM
   can be expanded into a comprehensive marine navigation system via two Ray Net Ethernet ports and NMEA 2000 connectivity. It supports:
  • Radar: Integration with Ray marine Quantum 2 or Cyclone solid-state radars.
  • Autopilot: Seamless control and integration with Evolution autopilots.
  • Video and Audio: HDMI output for remote displays, analogue video input, and full control of compatible marine audio systems (Fusion, JL Audio, etc.).
  • Augmented Reality: Compatible with the CAM300 camera and AR200 sensor for Clear Cruise augmented reality, overlaying navigation objects on video feeds.
  • Engine Data: Advanced integration with NMEA2000-compatible engines like Mercury Smart Craft and Yamaha Command Link.
• Connectivity: Built-in Wi-Fi and Bluetooth allow for smartphone control and viewing via the Raymarine Mobile App, as well as streaming entertainment apps like Netflix and Spotify.
• Durability and Mounting: The display features an IPX6 and IPX7 waterproof rating and a HydroTough™ nano-coating that repels water and smudges. It supports both trunnion bracket and flush/surface mounting options.

Raymarine AXIOM2 Pro 12 RVM, Hybrid Touch 12" Multi-function Display with integrated 1kW Sonar, DV, SV and Real Vision 3D Sonar FAQs

• What is the primary control method?
  • The unit features HybridTouch™ control, meaning you can use the responsive touchscreen or the physical keypad and rotary knob, which is particularly useful in rough seas or wet conditions.
• How does the display perform in sunlight and wet conditions?
  • It uses a bright 1200 nits IPS (In-Plane Switching) LCD display with HydroTough™ nano-coating technology to repel water for reliable touchscreen control, enhanced colors, and excellent visibility even in direct sunlight.
• Is the display brightness automatically adjusted?
  • Yes, it has smart backlighting and an ambient light sensor that automatically adjusts display brightness for both day and evening lighting conditions.
