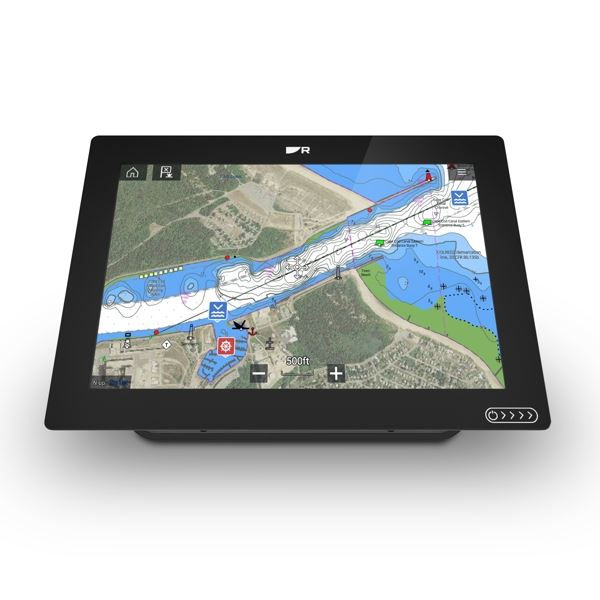

Raymarine AXIOM+ 12, Multi-function 12" Display

Raymarine AXIOM+ 12, Multi-function 12" Display

Raymarine AXIOM+ 12, Multi-function 12" Display is the next generation of the award-winning Axiom series, engineered for speed, responsiveness, and ultimate clarity. At its core is a powerful quad-core processor that ensures fluid chart redrawing and instantaneous response times, even when running multiple apps or complex sonar.

The standout feature of the Axiom+ is the upgraded IPS display. With 25% more brightness than previous models, it remains perfectly visible in direct sunlight. Combined with the innovative HydroTough™ nano-coating, the screen is impact-resistant and repels water and oils, ensuring your touch controls remain accurate even in the roughest, wettest conditions.

Running on the intuitive LightHouse 3 operating system, the Axiom+ 12 is remarkably easy to use, allowing you to customise your helm with the data that matters most to you—from radar and AIS to engine diagnostics and entertainment.

Raymarine AXIOM+ 12, Multi-function 12" Display Key Features

• Ultra-Bright IPS Display: The 12.1-inch high-density display (1280 x 800 WXGA) provides 1,800 nits of brightness and extra-wide viewing angles, making it readable from any position in the cockpit.
• HydroTough™ Technology: An all-weather, nano-coated glass screen that dispels water, grease, and smudges. It’s built to handle the marine environment while providing precise touch control.
• Performance Tuned: Powered by a quad-core processor, the Axiom+ delivers industry-leading speed. Experience seamless navigation, rapid chart zooming, and the power to run advanced features like RealVision™ 3D sonar without lag.
• Enhanced GPS Navigation: Features a next-generation 10Hz GPS/GNSS receiver with four times the sensitivity of previous models, ensuring pin-point accuracy even in challenging locations.
• LightHouse 3 OS: Fast, fluid, and easy to learn. The LightHouse 3 interface allows you to navigate intuitively and expand your system with ease.
• Ready to Network: Easily expandable via RayNet Ethernet and NMEA2000. Integrate multiple displays, Quantum radar, Evolution autopilots, FLIR thermal cameras, or ClearCruise™ Augmented Reality for total situational awareness.
• Increased Storage: Comes with 16GB of internal solid-state storage for your personal data, waypoints, and additional apps.

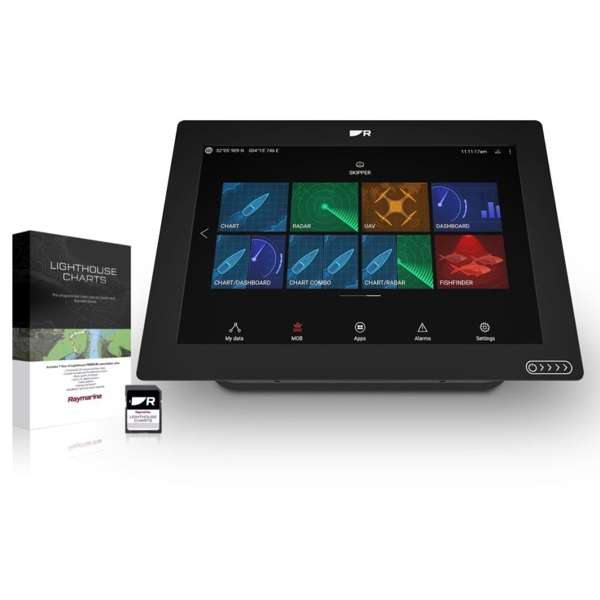

• Versatile Mapping: Compatible with the best charts in the business, including Raymarine LightHouse Charts, Navionics, and C-MAP.

What’s in the Box?

• • Axiom+ 12 Multifunction Display
  • Trunnion bracket and knobs
  • Suncover
  • Panel mount gasket for surface/flush mounting
  • Rear mounting brackets
  • Power/NMEA 2000 cable (1.5m power / 0.5m NMEA 2000)
  • Documentation pack

Morgan Marine Expert Tip: The Axiom+ 12 is the "sweet spot" for many of our customers. It offers a significantly larger screen area than the 9-inch model, making it much easier to use split-screen views for simultaneous chartplotting, radar, and sonar without sacrificing detail.

Raymarine AXIOM+ 12, Multi-function 12" Display FAQs

What makes the Axiom+ different from the original Axiom?

The Axiom+ is a performance-tuned upgrade. It features a HydroTough™ display (nanocoated, impact-resistant glass that repels water and oil), a significantly brighter screen (1,800 nits), and a faster quad-core processor for smoother chart redraws.

Can I use the touchscreen with wet hands or gloves?

Yes. The HydroTough™ coating is specifically designed to handle touch commands accurately even when the screen is splashed with saltwater. It also supports touch-in-all-weather, though heavy winter gloves might still require the optional RMK-10 remote keypad for precision.

Is the Axiom+ 12 sunlight-readable?

Absolutely. With an 1,800-nit high-brightness display and IPS (In-Plane Switching) technology, the screen remains clear even at extreme angles and through polarized sunglasses.

Which charts are compatible with the Axiom+ 12?

The unit runs

• • LightHouse 3 or 4 OS and supports:
  • Raymarine LightHouse Charts
  • Navionics (Gold, Platinum+, HotMaps)
  • C-MAP (Essentials and 4D MAX+)

Does it have a built-in GPS?

Yes, it features an integrated 10Hz GPS/GNSS receiver with 28 channels, providing fast and accurate position updates.

Does the Axiom+ 12 have "Built-in" Sonar?

It depends on the specific model variant:

• • Axiom+ 12: No internal sonar (requires a networked sonar module).
  • Axiom+ 12 RV: Includes built-in RealVision 3D and 600W Chirp sonar.
  • Axiom+ 12 Pro: (Different series) includes 1kW professional-grade sonar.

Can I connect my existing Raymarine radar?

Yes. It is fully compatible with Quantum, Quantum 2 (Doppler), and Cyclone open-array radars via RayNet (Ethernet).

Can I view my engine data on the screen?

Yes. By connecting to your boat's NMEA 2000 network, you can display engine instruments, fuel levels, and battery status. It is also compatible with Mercury VesselView and Yamaha Command Link systems.

Can I control the Axiom+ from my phone?

Yes. Using the Raymarine App (available on iOS and Android), you can stream the display to your tablet or phone and even take full control of the MFD remotely.

Does it support Bluetooth?

Yes. You can connect a Bluetooth remote or link it to your Fusion or Rockford Fosgate marine stereo to control your music directly from the chartplotter.
