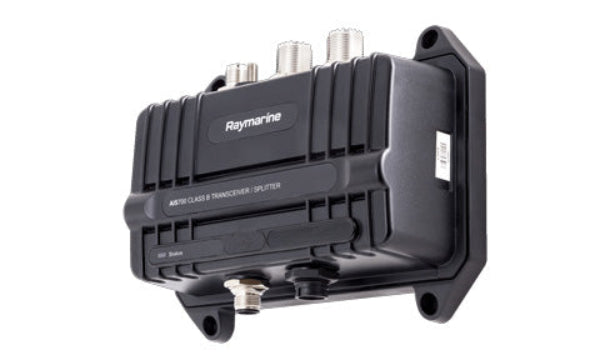

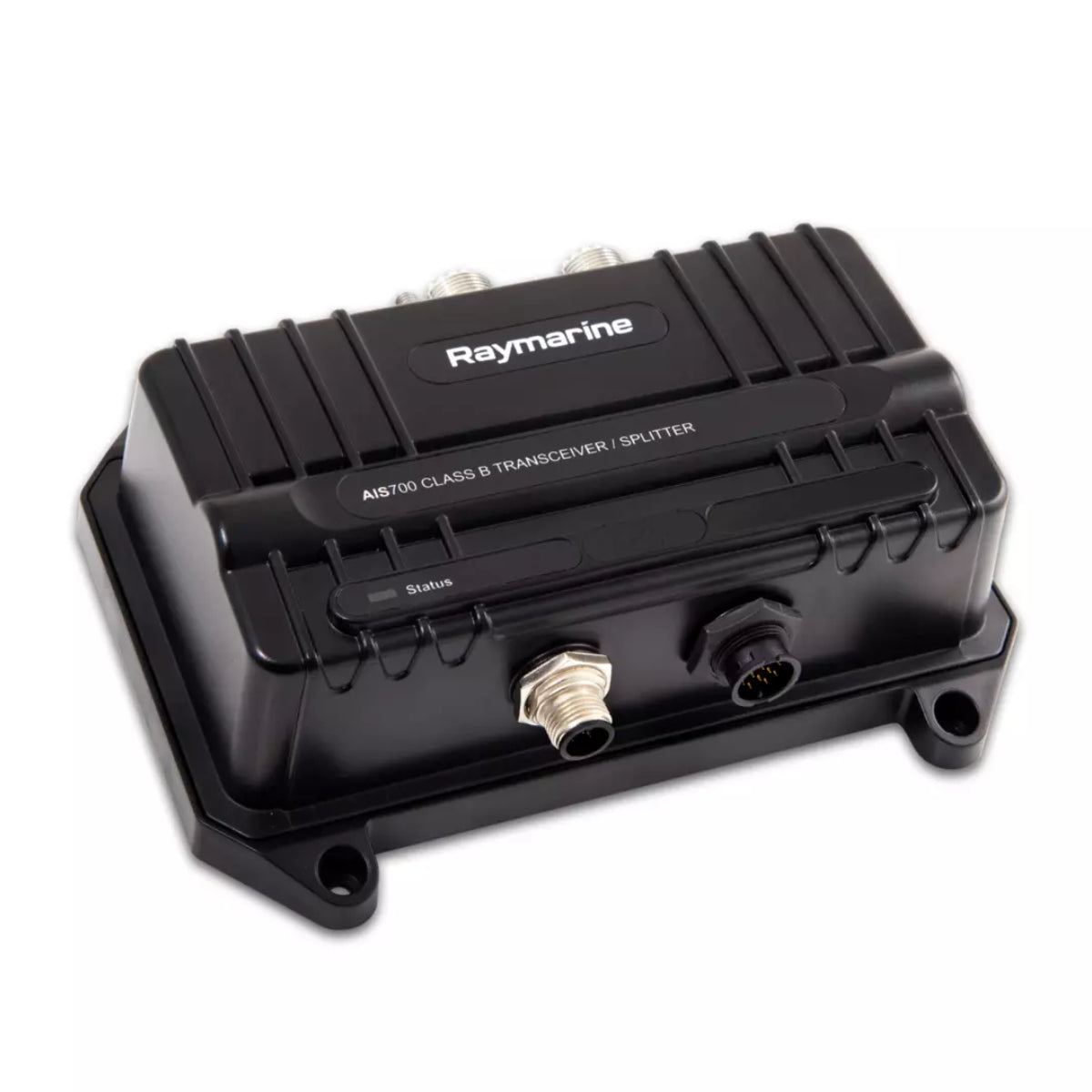

Raymarine AIS700 - Class B Transceiver with Antenna Splitter

The Raymarine AIS700 is a Class B Automatic Identification System (AIS) transceiver designed for use with any multifunction navigation display systems.

As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

Raymarine AIS700 Key Features

• Full transmit and receive AIS for enhanced situational awareness and safety
• Latest SO-TDMA technology for longer range and faster performance
• Built-in antenna splitter simplifies installation with existing VHF radio antenna
• NMEA2000, NMEA0183, PC (setup & diagnostics) and SeaTalk^ng compatible
• Software or hardware switchable Silent Mode for enhanced security when needed.

In the box you'll find the AIS transciever with built-in antenna splitter, GNSS antenna with 10m fitted cable, 2m power/data cable, 1m VHF radio cable, DeviceNet to SeaTalkng adaptor cable, GNSS antenna gasket, GNSS antenna pole mount, screws & fixings, and documentation.

Raymarine AIS700 Spec

Environmental

• Relative humidity: Up to 93% @ 40°C (104°F)

• Waterproof rating: IPx6, IPx7

• Storage temperature: -20°C to +75°C (-4°F to 167°F)

• Operating temperature: -15°C to +55°C (5°F to 131°F)

AIS

• Operating frequency:

  • Transmitting: 156.0MHz to 162.025 MHz

  • Receiving: 156.0MHz to 174.0 MHz

• Class: B (transceiver)

• AIS performance: 5 W SOTDMA

• Channel spacing: 25 kHz

Physical

• VHF antenna connection: SO-239 co-axial

• VHF radio connector type: SO-239 co-axial

• NMEA 0183 connection:

  • Port 1 (MFD connection): HS (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate

  • Port 2 (Instrument connection: (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate

• USB connection: Micro-B

• Dimensions:

  • Height: 132.55 mm (5.22 in)

  • Width: 171.65 mm (4.81 in)

  • Depth: 57 mm (2.24 in)

• NMEA 2000 connection: DeviceNet connector

• Silent mode switch connection: Bare-ended wires x 2

• GNSS antenna connector type: 50Ω TNC co-axial

GNSS

• GNSS compatibility: GPS, GLONASS

• Cold start acquisition: 26 seconds (nominal)

• Channels: 72

Power

• Operating voltage range: 9.6 V dc to 31.2 V dc

• Power consumption: 3 W

• Fuse rating: 3 A

• Peak current @ 12 V dc: 2.5 A

• Nominal supply voltage: 12 V dc / 24 V dc

• Peak current @ 24 V dc: 1.25 A

• LEN (NMEA 2000 Load Equivalency Number): 1
