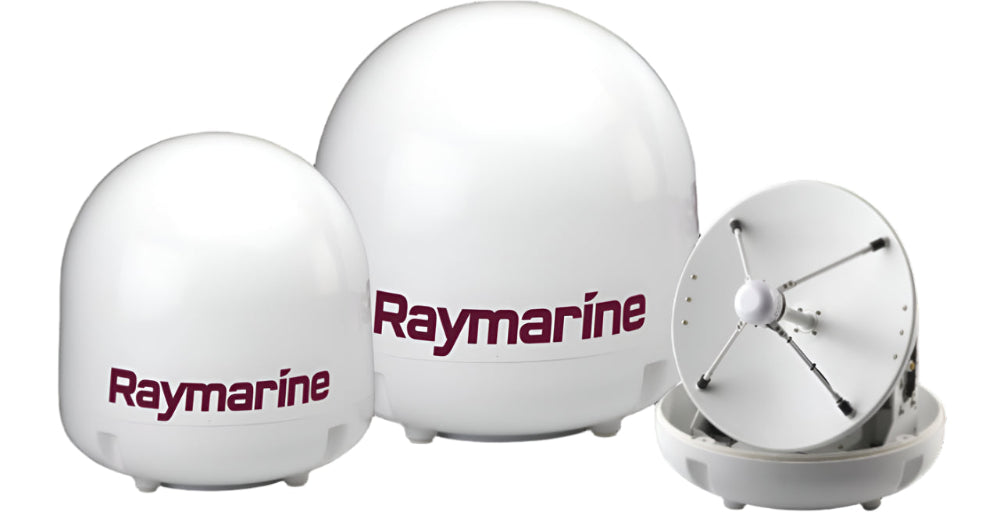

Raymarine 37STV - 37cm Satellite TV System for Europe, Brazil & Mexico
Raymarine 37STV - 37cm Satellite TV System for Europe, Brazil & Mexico are a high-performance, compact 37cm marine satellite TV system designed for vessels between 7.6m and 10.7m (25' – 35'). It provides reliable access to digital TV channels in challenging maritime conditions through advanced tracking and stabilization technologies.
Raymarine 37STV - 37cm Satellite TV System for Europe, Brazil & Mexico Key Features
- Dynamic Beam Tilting (DBT): Continuously measures and compensates for the vessel's heading, pitch, and roll to maintain a locked satellite signal and clear picture.
- Wide Range Search (WRS): An exclusive algorithm that allows the antenna to identify and acquire satellite signals with extreme speed and accuracy.
- Built-in GPS: Features an integrated GPS for faster signal acquisition and higher accuracy wherever the vessel sails.
- Coverage: This specific model is engineered for Europe, Brazil (SKY Brazil), and Mexico
- Satellite Support: Compatible with footprints including Hotbird, Astra 1G/1H, and Astra 2A South.
- Dish Diameter:37 cm (14.6 in).
- LNB Type: Dual LNB, allowing the connection of two separate television receivers to tune into different channels simultaneously.
- Resolution: DVB and High Definition (HD) compatible.
- Connectivity: Includes a Wi-Fi enabled Antenna Control Unit (ACU) for wireless management via smartphones or laptops using the Aptus mobile app.
- Construction: Rugged, water-resistant (IPX6) housing weighing less than 9 kg.
What's in the Box
Raymarine 37STV - 37cm Satellite TV System for Europe, Brazil & Mexico FAQs
- What are the key features of the Raymarine 37STV ? The 37STV . Key technologies include Dynamic Beam Tilting (DBT) to compensate for vessel movement and Wide Range Search (WRS) for rapid signal acquisition.
- Which regions does it support? Standard versions are available for Europe, North America, and Asia-Pacific (including China, Australia, and New Zealand).
- How many TVs can I connect? The 37STV features a Dual LNB design, allowing you to connect two separate television receivers and watch different channels simultaneously.
- Does it have built-in GPS? Yes, the 37STV includes a built-in GPS interface (NMEA 0183) for faster satellite acquisition and higher accuracy wherever the vessel sails.
- What are the power requirements? It operates on a DC power source between 9.0V and 30.0V. Typical power consumption is 30W, with a maximum of 50W.
-
What are its physical dimensions?
- Dish Diameter: 37 cm (14.6 in).
- Radome Dimensions: 43 cm diameter x 44 cm height.
- Weight: Less than 9 kg (19.8 lbs).
- How is the system controlled? It comes with an Antenna Control Unit (ACU) that provides power, displays status, and allows manual satellite selection. It can also be managed wirelessly via Wi-Fi using the Intellian Aptus mobile app on smartphones or tablets.
- What comes in the box? The standard package includes the antenna and radome, ACU, 15m antenna-to-ACU coaxial cable, 3m ACU-to-IRD cable, 10m DC power cable, and installation manuals.
- Can I use it for High Definition (HD) TV? Yes, the system is fully compatible with DVB (Digital Video Broadcast) and High Definition (HD) signals.
- Official documentation and software updates are available through the Raymarine Support Centre.
-
What is the warranty period?
The standard warranty can often be extended from 2 to 3 years by registering the product online within 90 days of purchase.
