Raymarine 12kW Magnum with Open Array and 15m RayNet Radar Cable
SKU:T70412
- Regular price
- £7,645.00 inc. VAT
- Sale price
- £7,645.00
- Regular price inc. VAT
-
FREE UK shipping on orders over £150. Exclusions apply.
Shipping calculated at checkout.
Click & Collect - available at Morgan Marine, Brightlingsea.
30-days Free Returns - see our returns policy
Rated - 4.6 / 5 on Google ⭐⭐⭐⭐⭐
Trusted - Marine supplier since 1972
Fast - UK delivery

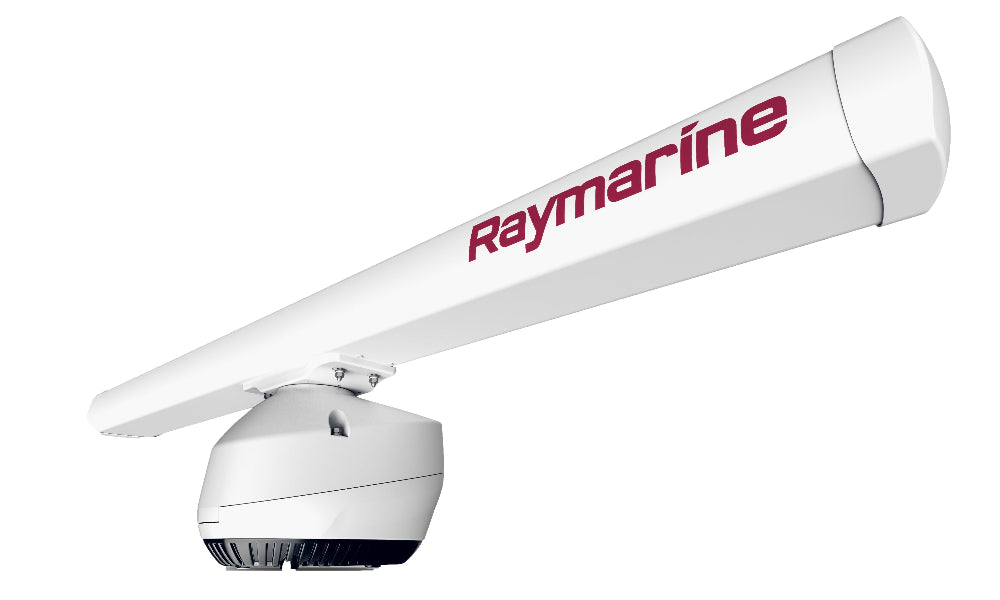

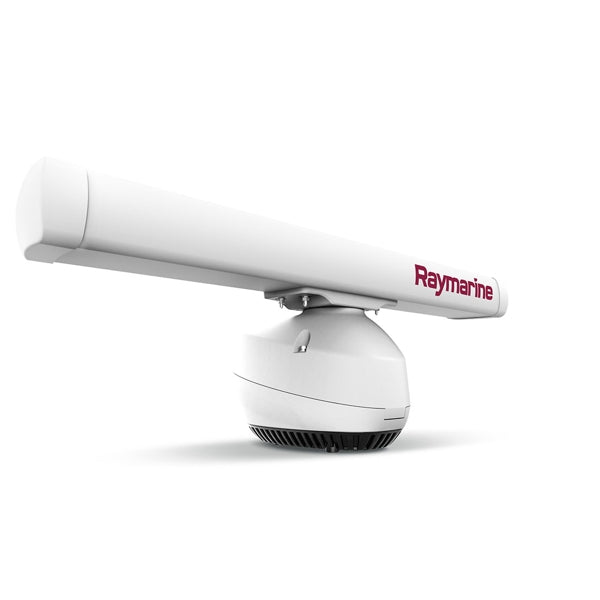

Raymarine 12kW Magnum with Open Array and 15m RayNet Radar Cable
Raymarine 12kW Magnum with Open Array and 15m RayNet Radar Cable are open array radar system is a high-performance radar that is compatible with most modern and many legacy Raymarine multifunction displays (MFDs), including the Axiom, Axiom Pro, Axiom XL, eS-Series, e-Series, gS-Series, c-Series, C-Series Widescreen, E-Series Widescreen, E-Series Classic, and G-Series units.
Raymarine 12kW Magnum with Open Array and 15m RayNet Radar Cable Key Features
- Power and Range: It features a 12kW power output and offers a maximum range of up to 96 nautical miles, making it ideal for blue water vessels and detecting weather systems.
- Target Detection: The system employs advanced features like Bird Mode to target flocks of birds (which helps anglers find baitfish) and beam sharpening technology for better than 1-degree bearing resolution.
- Situational Awareness: It provides enhanced target tracking with fully automatic MARPA (Mini Automatic Radar Plotting Aid) and the True Trails feature, which displays a historical "wake" behind moving contacts for easier interpretation of vessel motion.
- Connectivity: The unit connects via a 15m RayNet radar cable and includes the necessary VCM100 voltage converter module to operate on 12V or 24V DC systems.
- Axiom Family (LightHouse 3/4): Axiom, Axiom Pro, Axiom XL, Axiom+, and Axiom 2 Pro/XL displays are fully compatible, with most features available (specific software versions may be required for certain features like Auto MARPA or True Trails).
-
Legacy MFDs (LightHouse 2): The radar is backward compatible with the following series:
- a-Series (a75, a77, a78, a95, a97, a98, a125, a127, a128).
- c-Series (c95, c97, c125, c127).
- e-Series (e7, e7D, e95, e97, e125, e127, e165).
- eS-Series (eS95, eS97, eS98, eS125, eS127, eS128, eS165).
- gS-Series (gS95, gS125, gS165).
Widescreen and Classic MFDs: The C-Series Widescreen, E-Series Widescreen, E-Series Classic, and G-Series MFDs are also compatible, though some advanced Magnum features might be limited or unavailable on these older models
Note: The radar is not compatible with the older C-Series Classic (C70, C80, C120) or the Element series MFDs.
Raymarine 12kW Magnum with Open Array and 15m RayNet Radar Cable FAQs
- What is the maximum range of the 12kW Magnum radar? The Raymarine 12kW Magnum has a maximum range scale of 96 nautical miles. The actual target detection range is dependent on the height of the scanner above the waterline and the height of the target.
- Is the Magnum radar compatible with my current display? Magnum radars are compatible with Raymarine's Axiom and Axiom Pro multifunction displays (MFD) running the LightHouse 3 operating system. It is also backwards compatible with legacy models, including all LightHouse 2 MFDs (e.g., cSeries, eSeries, gS Series, etc.).
- Does the system come with the necessary cables? Yes, the system typically includes a 15m radar-to-RayNet and power cable as standard. Other lengths (5m, 10m, and 25m) are available as optional accessories.
- Can the radar detect birds for fishing? Yes, all Magnum radar models feature a specific "Bird Mode" which optimizes the transceiver for detecting sea bird activity, helping anglers find schooling baitfish more efficiently.
- What is the power consumption? The typical power consumption is <110W in transmit mode, <30W in standby, and <1.2W in sleep mode. It operates on 10.8 to 32 volts DC.
- What is the optimal mounting height? Mounting the radar scanner as high as practical enhances long-range performance due to the line-of-sight nature of radar.
- Is the radar radiation harmful? Marine radar transmits electromagnetic energy that can be harmful, particularly to the eyes. Raymarine advises installation above head height and away from personnel.
- Do I need a special license to operate a marine radar? Licensing requirements for marine radar installation and operation vary by national administration.
