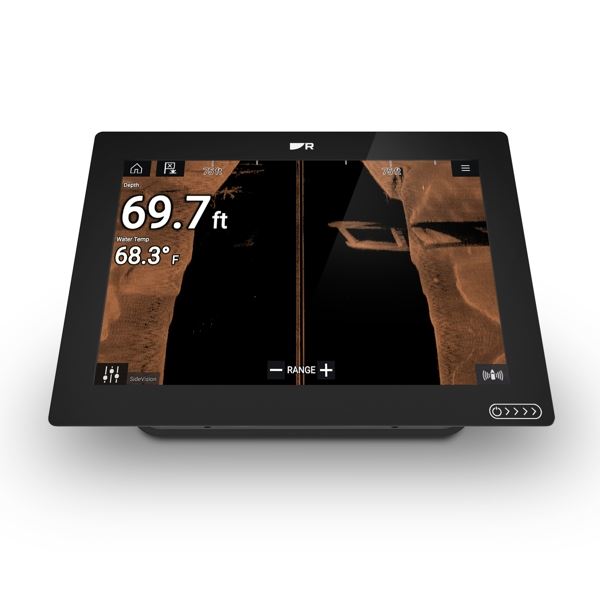

Raymarine AXIOM+ 12 RV, Multi-function 12" Display with integrated RealVision 3D and 600W Sonar

Raymarine AXIOM+ 12 RV, Multi-function 12" Display with integrated RealVision 3D

Raymarine AXIOM+ 12 RV, Multi-function 12" Display with integrated RealVision 3D is more than just a chartplotter; it is a performance-tuned hub designed to give you the ultimate edge on the water, whether you are navigating a tricky coastal passage or hunting for the perfect catch.

Below you will find everything you need to know about this flagship 12-inch display, written to help you decide if it is the right fit for your vessel. The Axiom+ 12 RV is the next generation of Raymarine’s award-winning multifunction displays. Upgraded for maximum speed and visibility, this "RV" (RealVision) model features built-in 600W sonar and RealVision 3D™ technology, providing an unparalleled view of what lies beneath your hull.

At its heart is a powerful quad-core processor that ensures the LightHouse operating system runs with lightning speed. Whether you are panning across high-detail charts or running multiple apps at once, the Axiom+ 12 delivers a fluid, smartphone-like experience. The 12.1-inch High-Density IPS display is 25% brighter than its predecessor, ensuring your data is crystal clear even in direct mid-day sun or through polarised sunglasses.

Raymarine AXIOM+ 12 RV, Multi-function 12" Display with integrated RealVision 3D Key Features

• HydroTough™ Display: The impact-resistant glass screen features a nano-coating that repels water, oil, and smudges. This ensures your touch controls remain accurate even when the screen is soaking wet.
• All-in-One Sonar: Built-in RealVision 3D, CHIRP SideVision, DownVision, and conventional 600W CHIRP sonar. This allows you to identify structure and locate fish with life-like clarity.
• Superior Visibility: The WXGA (1280 x 800) IPS display offers 88° viewing angles from all sides and 1,800 nits of brightness for perfect readability in all conditions.
• Blazing Performance: A quad-core processor provides instant chart redraws and the power to run advanced apps like Spotify, Netflix, or weather overlays without lag.
• ClearCruise™ Augmented Reality: Navigate smarter by overlaying AIS targets, waypoints, and chart objects directly onto a high-definition video feed (requires AR200 sensor).
• Expandable Ecosystem: Ready to network via RayNet Ethernet and NMEA2000. Easily add Quantum radar, Evolution autopilots, FLIR thermal cameras, or marine entertainment systems.

Raymarine AXIOM+ 12 RV, Multi-function 12" Display with integrated RealVision 3D FAQs

Do I need a separate sonar module for the Axiom+ 12 RV?

No. The "RV" model has the sonar hardware built directly into the unit. You can plug a compatible RealVision 3D transducer straight into the back of the display to access 3D, Side, Down, and Conical CHIRP sonar.

What is the benefit of the HydroTough™ screen?

In the UK, we know that spray and rain are part of the job. HydroTough™ is a specialised coating that makes water bead off instantly, preventing the "phantom touches" or loss of control that often plague standard touchscreens when they get wet. It also makes cleaning off salt streaks and fingerprints much easier.

Can I use my existing Navionics or C-MAP charts?

Absolutely. The Axiom+ 12 RV is fully compatible with Raymarine LightHouse Charts, Navionics, and C-MAP. The powerful processor ensures that even high-detail vector and raster charts load and pan effortlessly.

Does the unit come with a transducer?

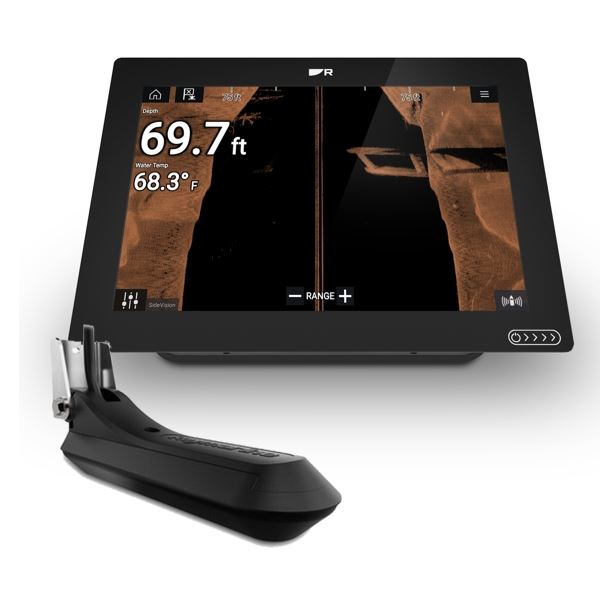

The Axiom+ 12 RV is available in several configurations. Some of our kits include the RV-100 transom-mount transducer, while others are "display only" to allow you to choose a through-hull or in-hull option. Please check the specific bundle details or speak to our team to ensure you have the right transducer for your hull type.

How does the "RealVision 3D" help me find fish?

Unlike traditional 2D sonar, RealVision 3D provides a "behind-the-boat" perspective of the seabed. It uses gyro-stabilised technology to compensate for the boat's movement, giving you a steady, life-like image of reefs, wrecks, and fish arches in three dimensions.

Is it easy to see at night?

Yes. The Axiom+ features updated LightHouse colour themes, including a dedicated "Night Mode" and "Dusk Mode" which reduces glare and preserves your night vision while you’re out on the water after dark.

Can I view the screen on my phone or tablet?

Yes, the Axiom+ has built-in Wi-Fi. By using the Raymarine Mobile App, you can mirror the display or even take full control of the MFD from your smartphone or tablet anywhere on the boat.

Need more help?

If you’re unsure about installation or which transducer is best for your boat, the team here at Morgan Marine is on hand to help. We are authorised Raymarine dealers and can provide expert advice to ensure your new Axiom+ system is perfectly configured for your needs.
