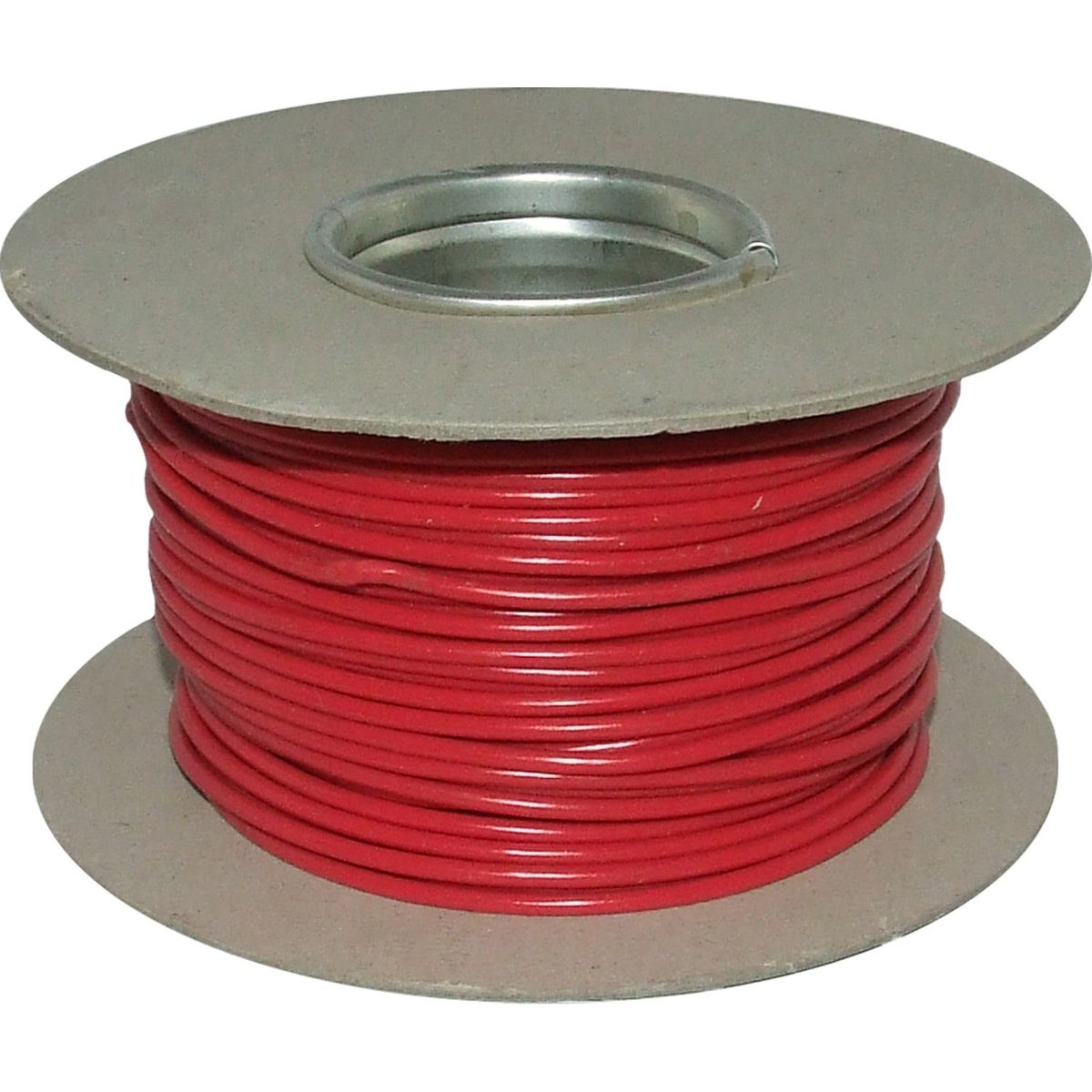

Oceanflex 1 Core Tinned Cable 35/0.30 2.5mm2 50m Red
SKU:
- Regular price
- £1.25 inc. VAT
- Sale price
- £1.25
- Regular price inc. VAT
-
FREE UK shipping on orders over £150.
Shipping calculated at checkout.
Click & Collect - available at Morgan Marine, Brightlingsea.
30-days Free Returns - see our returns policy
Rated - 4.6 / 5 on Google ⭐⭐⭐⭐⭐
Trusted - Marine supplier since 1972
Fast - UK delivery
Oceanflex thin wall tinned electrical cable, with 2.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a single core copper conductor manufactured to BS EN 60228:2005 which is tinned and then insulated in a hard grade PVC insulation. Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
Sold by the metre
| Material | Tinned Copper Conductor |
| Maximum Load Description | 12V = 348 Watts, 24V = 696 Watts |
| Primary Construction | Tinned Copper |
| Style | Thin Wall Cable |
| Cable Cores | 1 Core |
| Unit of Sale | 50 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 35/0.30 mm |
| Cable Conductor Cross Section Description | 2.5mm² |
| Replaces | 712125-K & 748125-K |
| Resistance Per Metre at 20degC | 0.00782 ohms |
| Shape Description | Round |
| Brand | Oceanflex |
| Colour | Red |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Amps Description | Nominal Current Rating: 29A |
| Approvals | Manufactured in accordance with ISO6722: 2011 (Class B) |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Diameter Description | Max Outside Diameter: 3.0mm |
| Country of Origin | United Kingdom |
