NASA Clipper Duet with Electromagnetic 3 Log transducer
SKU:CLIP-DUET-EM
- Regular price
- £313.35 inc. VAT
- Sale price
- £313.35
- Regular price inc. VAT
-
£364.38
FREE UK shipping on orders over £150.
Shipping calculated at checkout.
Click & Collect - available at Morgan Marine, Brightlingsea.
30-days Free Returns - see our returns policy
Rated - 4.6 / 5 on Google ⭐⭐⭐⭐⭐
Trusted - Marine supplier since 1972
Fast - UK delivery

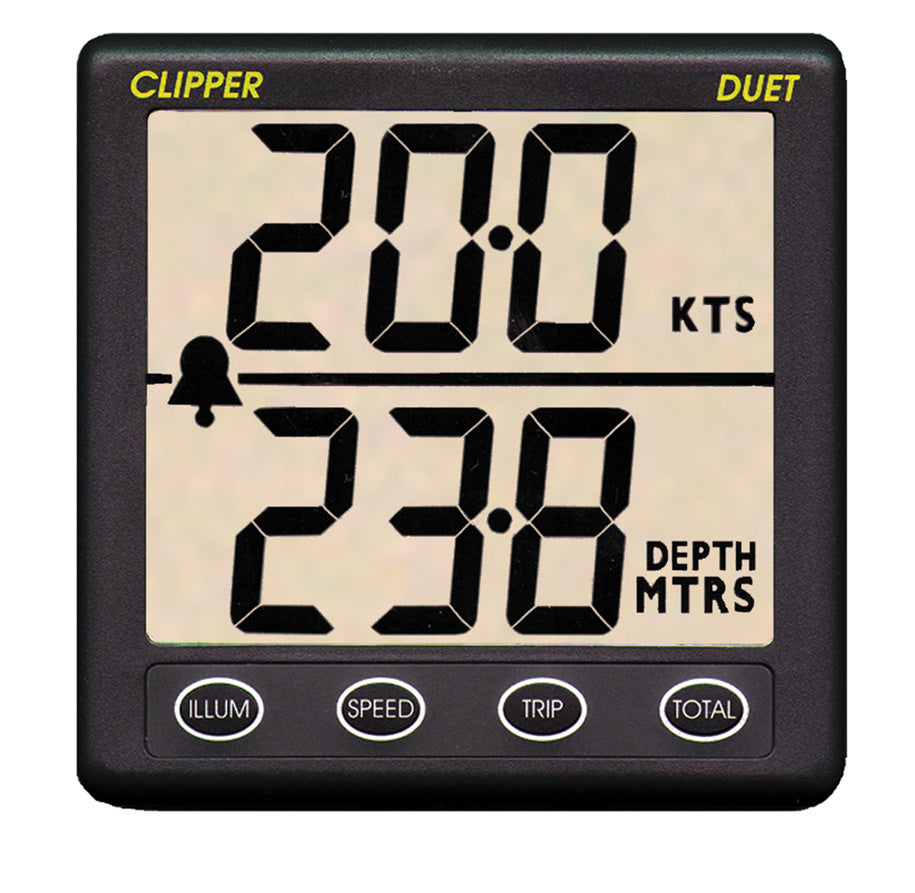

The best selling combined Speed/Distance Log and Echo Sounder in standard 110mm square size. Suitable for open cockpit mounting.

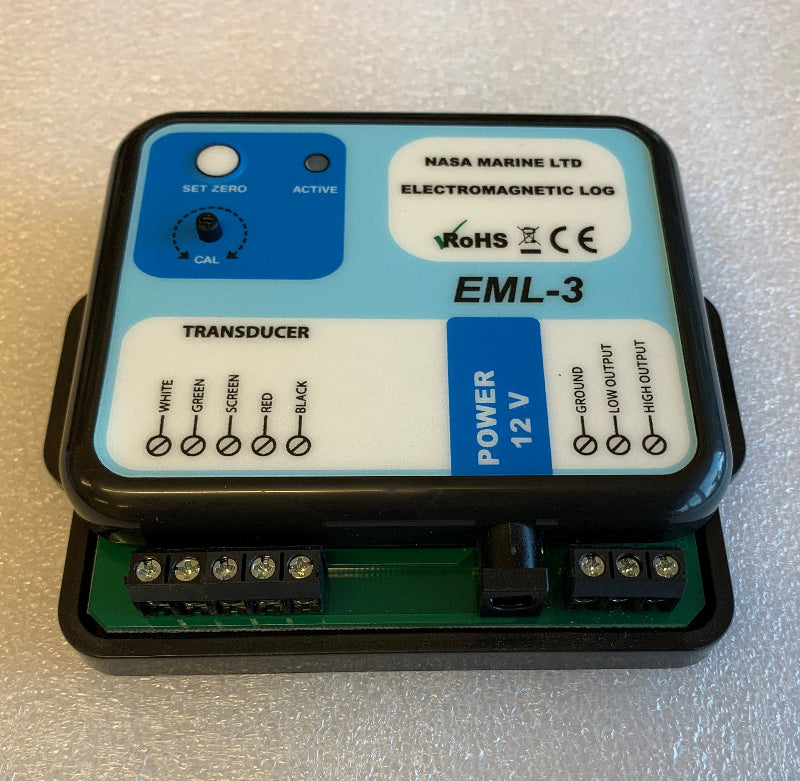

The Clipper Duet is supplied complete with the solid state electromagnetic speed transducer (for installation on most types of GRP hulls) and in hull depth transducer. Supplied with the EML-3 electromagnetic transducer, the log measures the boat speed through the water with no moving parts. Robust and accurate, the sensor generates an alternating magnetic field below the boat and measures the resulting electric field produced by the boat moving through the water. With excellent linearity and a resolution of 0.1 Knot, over the range 0.2 to 40 Knots, the control box converts the sensor signal to a pulse output to connect to the Clipper Duet display.
Technical Specifications
Depth Sounder in feet and metres.
Shallow Alarm and Keel Offset.
Complete with data box for log and speed and depth transducers.
Speed in MPH , Knots and Km/H.
Trip and Total Distance in Miles, Nautical Miles and Kilometres.
Speed Limit Alarm
Speed range 0.2 – 40 knots
Electromagnetic Log transducer dimensions
Hull skin fitting outer diameter = 50mm
Hull skin fitting inner diameter = 40mm
Hull skin fitting height = 70mm
Complete transducer overall height = 115mm*
*Allow 30mm minimum height clearance for cable
Transducer cable length 5.0 metres
Data box to display cable length 7.0 metres
(NOTE – NOT SUITABLE FOR METAL HULLS)
