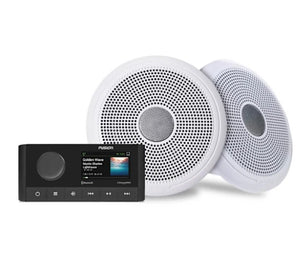

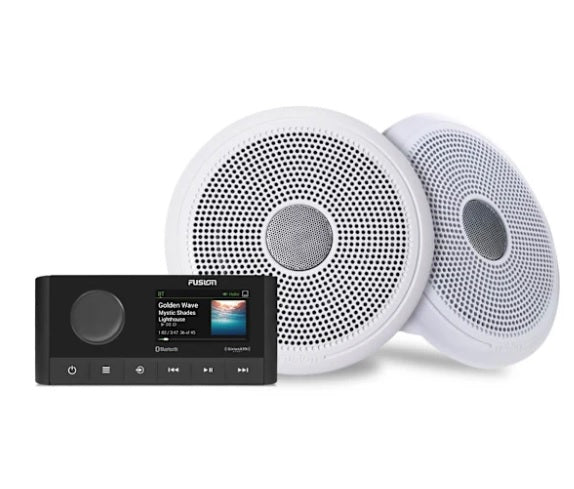

MS-RA210 and XS Classic Speaker Kit

Fusion® Stereo and Speaker Kits

MS-RA210 and XS Classic Speaker Kit

Stereo Specifications
Physical dimensions (HxWxD)    MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)
MS-RA210: 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm)
Weight    MS-RA60: 11.1 oz (316 g)
MS-RA210: 12.4 oz (350 g)
Water rating    IPX6 and IPX7 (front panel only, when properly installed)
Power input    10.8-16 VDC
Operating temperature range    32° to 122° F (0° to 50° C)
Current (max.)    15 A
NMEA 2000® LEN    MS-RA210: 1 (50 mA)
Bluetooth® wireless range    Up to 30 ft (10 metres)
ANT wireless range    Up to 10 ft (3 metres)
Wireless frequencies/protocols    Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance    5.9″ (150 mm)
Display    MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD
MS-RA210: 2.7″ optically bonded colour LCD
Built-in amplifier    Class-D (minimum 4 Ohm impedance)
Peak power    MS-RA210: 200 W
MS-RA60: 180 W
Rated power output (4 Ohm)    MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD
MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control    MS-RA60: Yes (with smartphone and Garmin watch)
MS-RA210: Yes (with MFD, smartphone and Garmin watch)
Built-in Digital Signal Processing    MS-RA210: Yes (with preconfigured DSP profiles)
Multi-Zone™ technology    2 zones
Bluetooth wireless technology    Yes
ANT wireless technology    Yes
DAB+ ready    MS-RA60: Yes (DAB tuner built in)
MS-RA210: Yes (requires DAB100A antenna module)
SiriusXM-ready    MS-RA210: Yes (requires SiriusXM Connect vehicle tuner)
Multi-language interface    MS-RA60: Dutch, English, French, German, Italian, Spanish
MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
NRX remote compatibility    MS-RA210: yes
Software updates    MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
MS-RA210: USB
Warranty    1 year
Sources    MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only)
Auxiliary input    One RCA input (AUX)
NMEA 2000    MS-RA210: 1 port
USB 2.0    MS-RA210: 1 port
SiriusXM satellite radio    MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio    One Motorola antenna connector port
Speaker    MS-RA60: 4 x speaker connections (2 zone amplified)
MS-RA210: 4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer)    MS-RA60: 1 zone (requires external amplification)
MS-RA210: 2 zones (requires external amplification)
Line out    MS-RA60: Zone 1 (L + R, requires external amplification)
MS-RA210: Zone 1, Zone 2 (1 x L + R per zone, requires external amplification)
Subwoofer out    MS-RA60: Zone 1 (requires external amplification)
MS-RA210: Zone 1, Zone 2 (requires external amplification)
Line out    MS-RA60: Zone 1 (L + R, requires external amplification)
Subwoofer out    MS-RA60: Zone 1 (requires external amplification)
Speaker Specifications
Physical dimensions (HxWxD)    EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm)
EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm)
XS Classic Speaker: 6.97″ x 3.19″ (177 x 81 mm)
XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm)
Water rating    IP65
Configuration    EL Speaker: Full range
XS Speaker: Coaxial
Speaker size    6.5″
Peak power (Watts)    EL Speaker: 80 W
XS Speaker: 200 W
RMS power (Watts)    EL Speaker: 20 W
XS Speaker: 50 W
Sensitivity (1 watt/1 metre)    EL Speaker: 88 dB
XS Speaker: 91 dB
Frequency response    EL Speaker: 45 Hz-16 kHz
XS Speaker: 80 Hz-18 kHz
Nominal impedance    4 ohm
Recommended amplifier power (RMS)    EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch
Operating temperature range    32° to 122° F (0° to 50° C)
Voice coil diameter    EL Speaker: 0.79″
XS Speaker: 1.18″
Cone material    Polypropylene cone with cloth surround
Tweeter type    XS Speaker: Aluminium dome
Compass-safe distance    EL Speaker: 100″ (254 cm)
XS Speaker: 122″ (310 cm)
Warranty    EL Speaker: 1 year
XS Speaker: 3 years
Mounting diameter clearance    EL Speaker: 5.12″ (130 mm)
XS Speaker: 5.31″ (135 mm)
Mounting depth clearance    EL Speaker: 1.69″ (43 mm)
XS Speaker: 2.64″ (67 mm)
Sealed enclosure volume    XS Speaker: 0.28 cubic ft (8 L)
