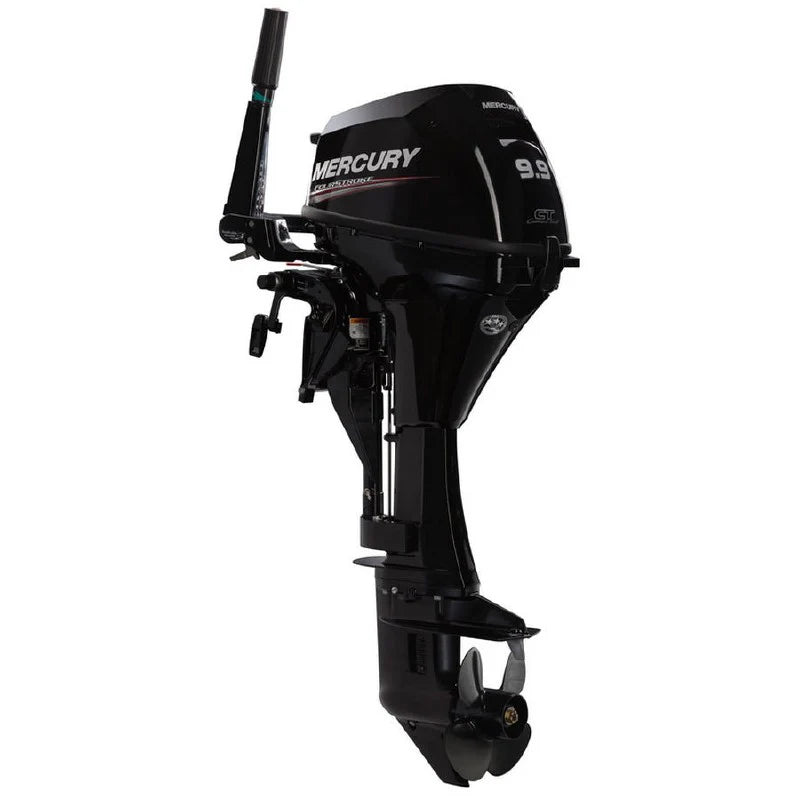

Mercury 9.9HP F9.9 4-Stroke Long Shaft Outboard Motor F9.9MLH CT EFI

4-Stroke
Long Shaft = L
Manual Start = M
Tiller Steering = H
Electronic Fuel Injection = EFI
Command Thrust = CT

Big-time power. With a longer design and bigger components, Mercury Command Thrust was made specifically to deliver the type of power, thrust and control that wider, heavier boats demand.

The Command Thrust Difference (Blue shaded areas represent prop and gearcase advantages)

• 20% larger prop increases control especially at low speeds
• Taller gearcase puts the prop deeper, below turbulent water, for improved performance
• A low 2.42:1 gear ratio delivers thrust and maneuveraility that big loads demand
• Oversized Antiventilation Plate. Oversized design prevents air from being drawn into the prop, which increases efficiency.



  9.9/7.3
  Engine type Inline 2
  Displacement (CID/CC) 12.8/208
  Full throttle RPM 5000-6000
  Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
  Recommended fuel Unleaded 90RON minimum
  Recommended oil Mercury FourStroke oil 10W-30
  Engine protection operator warning system Low oil pressure, overspeed, overheating
  Starting Manual Start
  Steering Tiller
  Shaft length 560 mm
  Gearcase ratio 2.42:1
  Dry weight (lightest model available) 38 kg
  CARB star rating 3
  Bore and stroke 2.16 x 1.73" / 55 x 44 mm
  Ignition System CDI with electronic spark advance
  Fuel systems Electronic fuel injection (EFI)
  Cooling system Water-cooled with thermostat
  Gear shift F-N-R
  Gearcase options Standard
  Trim positions (Trim system) Ratcheting (tilting range)
  Exhaust system Through prop
  Shallow water drive Yes
  Shallow water trim range (degrees) 16
  Remote fuel tank standard (gal/L) 3.2/12
