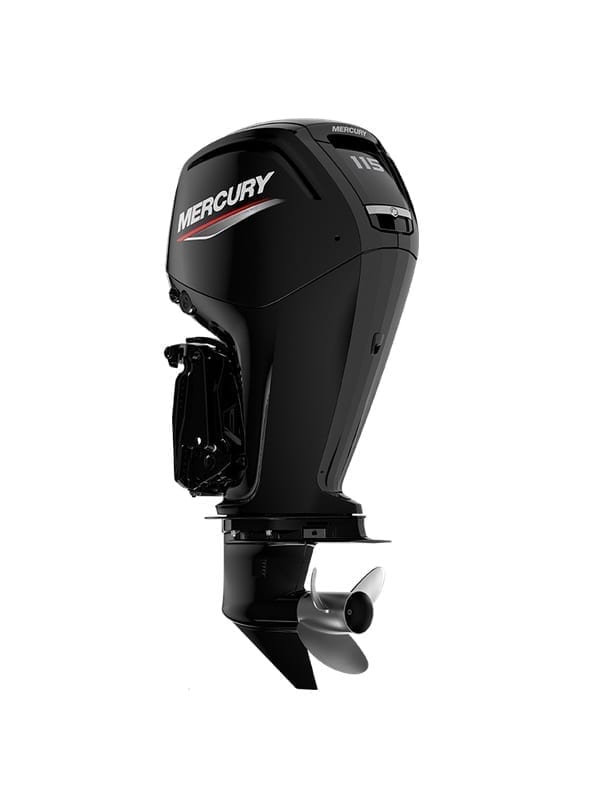

Mercury 115HP F115 4-Stroke XL Shaft Outboard Motor F115EXLPT EFI

Mercury 115HP F115 4-Stroke XL Shaft Outboard Motor F115EXLPT EFI

Mercury 115HP F115 4-Stroke XL Shaft Outboard Motor F115EXLPT EFI are a lightweight, fuel-efficient, and powerful engine known for its large displacement and quiet operation. It is designed for a variety of boats including deck, inshore fishing, and runabouts, and features the SmartCraft Engine Guardian system for protection.

Mercury 115HP F115 4-Stroke XL Shaft Outboard Motor F115EXLPT EFI Key Features

• Horsepower: 115 hp (85.1 kW)
• Engine Type: Inline 4-cylinder, 8-valve single overhead cam (SOHC)
• Displacement: 2.1 L
• Dry Weight: 163 kg (lightest model available)
• Shaft Length: 25" (Extra Long Shaft)
• Fuel System: Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
• Cooling System: Water-cooled with thermostat
• Starting: Smart Start Electric
• Controls: Mechanical throttle & shift (sold separately), compatible with Big Tiller and dual cable mechanical steering or hydraulic power steering
• Alternator: 35 amp / 441 watt with water-cooled voltage regulator
• Full Throttle RPM Range: 5000-6000
• Gearcase Ratio: 2.07:1 (Standard)
• Trim System: Power Trim & Tilt.
• Fuel Efficiency: The large displacement combined with less weight means the engine works "smarter, not harder," leading to improved fuel economy, especially at cruising speeds.
• Quiet Operation: Sound and vibration are minimized through a tightly sealed, thermo-bonded cowl, an Idle-Relief Muffler, a smooth clutch design, and Mercury's Focused Mount System.
• Durability: Features like specialized oil scrapers to minimize crankshaft friction contribute to longer engine life and enhanced durability. The engine also features a maintenance-free valve train, eliminating the need for costly valve adjustments.
• SmartCraft Technology: The motor is fully compatible with Mercury's SmartCraft digital gauges and sensors, providing the operator with engine protection warnings and system monitoring.

Mercury 115HP F115 4-Stroke XL Shaft Outboard Motor F115EXLPT EFI FAQs

• What is the recommended maintenance schedule?
  • Every 100 hours or once yearly: Change engine oil and filter, replace fuel filter, drain and replace gearcase lubricant, inspect spark plugs, and check corrosion control anodes.
  • Every 300 hours or three years: Replace the water pump impeller and inspect the thermostat, in addition to the 100-hour service items.
• What type of oil and fuel should I use?
  • Oil: Use NMMA Certified FC-W SAE 10W-30 Mercury FourStroke Oil.
  • Fuel: Unleaded Regular 87 Octane Minimum (R+M/2), 90 RON 10% Ethanol Maximum. Using fresh fuel and a fuel stabilizer is recommended to prevent issues related to ethanol and fuel degradation.
• How should I break in a new engine? For the first two hours, run the motor at varied throttle settings up to 4500 rpm. For the next eight hours, you can run the motor in standard fashion, but avoid running at wide-open throttle for more than five minutes at a time.
