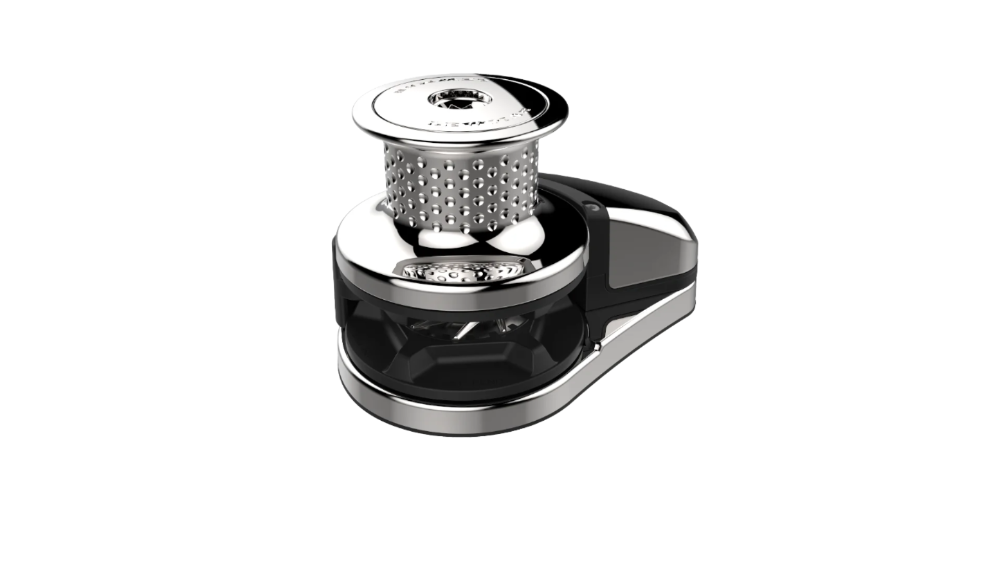

Lewmar VX3 Series Standard Kit - Gypsy Drum

Lewmar VX3 Series Standard Kit - Gypsy Drum

Lewmar VX3 Series Standard Kit - Gypsy Drum windlass is a standout in the new generation of vertical windlasses, specifically engineered for boaters who demand a blend of modern aesthetics, lighter weight, and unwavering reliability for vessels between 38ft and 46ft (12m – 14m).

By moving away from traditional all-metal builds toward high-tech composite materials and high-grade 316 stainless steel, Lewmar has created a windlass that is not only sleeker but also outperforms its predecessors in both durability and quiet operation.

Why Choose the VX3 for Your Boat?

The VX3 isn't just a powerful motor; it's a refined anchoring system. One of its most impressive features is the patent-pending hybrid gypsy. By combining a metal core with a polymer chain wheel, Lewmar has achieved a 15% reduction in weight and a 5% increase in strength. More importantly for those quiet mornings at anchor, it is significantly quieter than standard all-metal units, virtually eliminating that harsh metal-on-metal clatter during deployment.

This "Standard Kit" version comes with the added versatility of a Warping Drum, allowing you to use the windlass for independent rope handling or warping alongside your primary anchoring duties.

Lewmar VX3 Series Standard Kit - Gypsy Drum Key Features

• Robust Performance: Driven by a powerful 1500W motor, delivering a maximum pull of 1175kg and a working load limit of 294kg, ensuring you have the power to retrieve your anchor even in challenging conditions.
• Quiet & Smooth Operation: The innovative hybrid polymer gypsy provides a whisper-quiet anchoring experience while maintaining long-life durability.
• IP67 Rated Protection: The motor and gearbox are protected by a factory-fitted cover, certified to IP67 standards for water and dust ingress—vital for the harsh UK marine environment.
• Premium Construction: A stylish 316 stainless steel and composite deck unit that provides a modern look and superior corrosion resistance.
• Easy Installation & Upgrades: Designed with the same footprint as the popular Lewmar V2/3 models, making it a straightforward "drop-in" upgrade for many existing setups.
• Smart Ready: Each unit comes with a pre-installed magnet and sensor, making it ready for the addition of an electronic chain counter if you choose to install one.
• Manual Override: Includes a manual clutch release, giving you peace of mind that you can always deploy or retrieve your anchor manually should you ever lose power.
• Orientation Flexibility: The motor and gearbox can be set in multiple orientations by the end user, allowing for a custom fit in tight locker spaces.

What’s in the Standard Kit?

• • Lewmar VX3 Deck Unit (Gypsy and Drum configuration)
  • 1500W Motor Gearbox
  • IP67 Rated Contactor (Solenoid)
  • Hybrid Gypsy (sized to your selection)

At Morgan Marine, we recommend the VX3 for owners looking for a premium, lightweight, and exceptionally quiet anchoring solution. If you have any questions regarding chain sizing or installation for your specific vessel, please don't hesitate to get in touch with our team.

Lewmar VX3 Series Standard Kit - Gypsy Drum FAQs

Is the VX3 suitable for my boat size?

The Lewmar VX3 is optimised for motorboats and sailboats in the 30ft to 48ft (9m to 14m) range. With a maximum pull of 1175kg, it provides substantial power for vessels within this bracket, ensuring reliable anchoring even in tidal conditions.

What is included in the "Standard Kit"?

The Standard Kit is designed for those who may already have their own switching systems or are performing a specific refit. It includes:

• • The Deck Unit (Stainless steel and composite construction).
  • The Motor Gearbox (IP67 rated).
  • The Solenoid (Dual contactor).
  • The Gypsy (Calibrated for your specific chain).

Please note: Unlike the Extended Kit, the Standard Kit does not include a rocker switch or circuit breaker.

What are the benefits of the Gypsy Drum (GD) version?

The Gypsy Drum configuration allows you to use a warping drum independently of the gypsy. This is incredibly useful for hauling heavy mooring lines or providing an extra hand when warping into a tight berth. If you only require anchor retrieval, the "Gypsy Only" (GO) version is a more compact alternative.

Can I install this in place of my old Lewmar V2 or V3?

Yes! One of the best features of the VX3 Series is that it shares the same footprint as the older V2 and V3 models. This makes it an ideal choice for a "drop-in" replacement, saving you from having to drill new holes in your deck.

How "waterproof" is the motor?

The VX3 features a motor gearbox protected by a robust composite cover, self-certified to IP67 Ingress Protection. This means it is completely protected against dust and can withstand immersion in water up to 1 metre for 30 minutes—giving you peace of mind in heavy seas.

What chain and rope should I use?

The VX3 is highly versatile. Depending on the gypsy selected, it typically accepts:

• • Chain: 8mm (5/16") or 10mm (DIN/ISO).
  • Rope: 12mm to 16mm (1/2" to 5/8") 3-strand or 8-plait.

The hybrid gypsy is engineered for quiet operation and a seamless transition between rope and chain.

Does it have a manual override?

Yes, the unit features a manual clutch release, allowing you to free-fall the anchor or retrieve it manually should you encounter an electrical issue on board.

Product Recommendation
The Lewmar VX3 Gypsy Drum Standard Kit is our top recommendation for owners of mid-sized cruisers looking for a lightweight yet incredibly strong vertical windlass. The combination of 316 stainless steel and high-tech composites makes it more efficient and corrosion-resistant than many older designs.
