Lewmar V6 Series Deck Unit - Gypsy Only

Lewmar V6 Series Deck Unit - Gypsy Only

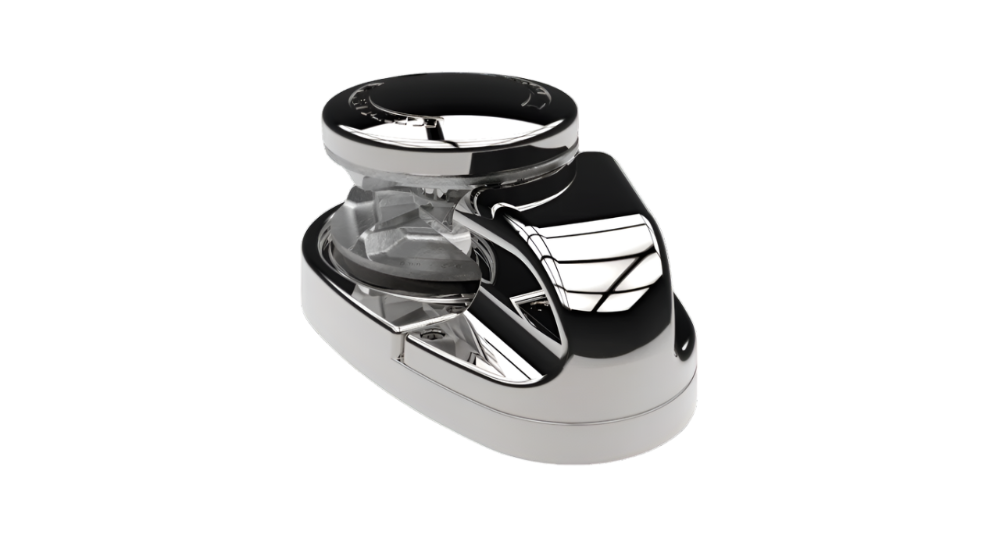

Lewmar V6 Series Deck Unit - Gypsy Only are a professional-grade vertical windlass component designed specifically for larger yachts and commercial craft requiring high-performance chain handling.

Crafted entirely from 316-grade stainless steel, this deck unit is built to withstand the harshest marine environments while maintaining its sleek, premium appearance. As a "Gypsy Only" configuration, it offers a lower profile on deck compared to drum versions, making it an ideal choice for owners who prioritising a clean, snag-free foredeck without compromising on pulling power.

This unit features Lewmar’s renowned cone clutch for smooth, progressive control and comes with Lloyd’s Type Approval, giving you total peace of mind when it comes to quality and safety standards.

Please Note:

This is the deck unit only. To complete your installation, you will require a compatible Lewmar V6 motor gearbox (available in 24V or Hydraulic options), the appropriate gypsy for your chain size, and the relevant electrical control kit.

Lewmar V6 Series Deck Unit - Gypsy Only Key Features

• Marine Grade Construction: Manufactured from high-quality 316 stainless steel for ultimate corrosion resistance and durability.
• Lloyd’s Type Approval: Certified for quality and performance, meeting the rigorous standards required for larger vessels.
• Versatile Power Options: Designed to be paired with either high-torque 24V DC motor gearboxes or powerful hydraulic drives to suit your yacht's systems.
• Precision Control: Equipped with a cone clutch for smooth, easy, and controlled anchor release and retrieval.
• Flexible Orientation: Available in both Left-Hand and Right-Hand versions to suit your specific deck layout or twin-windlass setups.
• Manual Overdrive: Includes a manual chain release feature, ensuring you remain in control even in the event of a power failure.
• W.A.R.P. Technology: Features Lewmar's Wear and Abrasion Resistant Pattern to reduce wear on the unit and extend the life of your equipment.
• Chain Only Reliability: Specifically engineered for chain-only rodes, providing the most secure anchoring solution for vessels up to 24m (80ft).

Technical Specifications

• • Boat Length: Recommended for vessels from 17m to 26m (approx. 55ft – 85ft).
  • Material: 316 Stainless Steel.
  • Compatibility: To be used with 10mm, 12mm, or 14mm gypsies (sold separately).
  • Dimensions: Length 326mm | Width 212mm | Height 145mm.
  • Installation: Requires a minimum deck thickness of 40mm.

If you are unsure which configuration is right for your boat, or if you need help selecting the correct motor gearbox and gypsy to match, the team here at Morgan Marine is on hand to provide expert advice.

Lewmar V6 Series Deck Unit - Gypsy Only FAQs

What exactly is included with the "Gypsy Only" Deck Unit?

This is a deck unit only component. It includes the 316 stainless steel housing, the main shaft, and the control arm. To have a fully functional windlass, you will need to separately purchase the motor gearbox (24V or Hydraulic), the gypsy (sized to your chain), and the electrical control kit (contactor, breaker, and switches).

What is the difference between the 'Gypsy Only' and 'Gypsy Drum' versions?

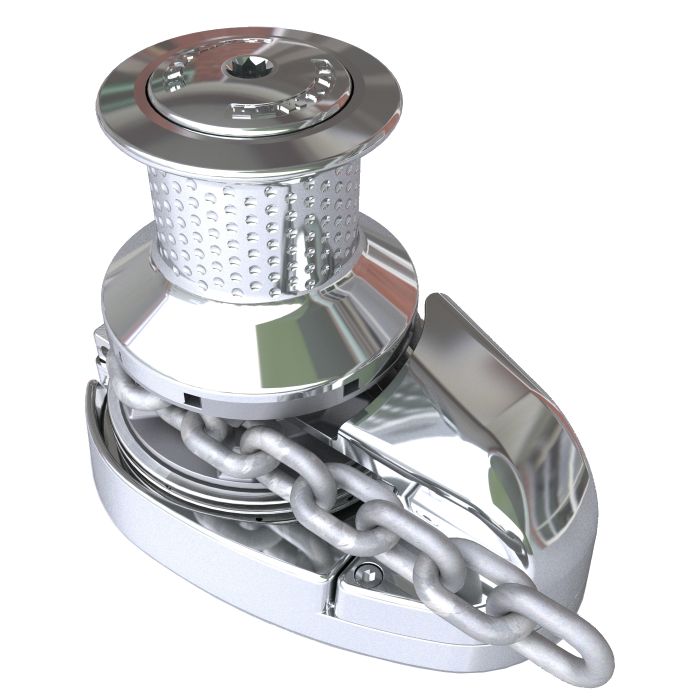

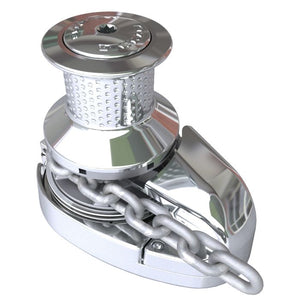

The "Gypsy Only" version (often called 'Low Profile') does not have a warping drum on top. It is designed for owners who only use chain and want a cleaner, lower look on the foredeck. The "Gypsy Drum" version includes an additional drum for independent hauling of ropes or secondary mooring lines.

How do I know if I need a Left-Hand or Right-Hand version?

This depends on your deck layout and where your chain locker is situated. If you are installing twin windlasses, you would typically have one of each. If you are unsure which orientation matches your existing setup or hawse pipe position, please contact our team at Morgan Marine for a consultation.

Can I use this unit with 12V power?

No, the V6 Series is a high-power unit designed for larger vessels. The electric motor gearboxes for the V6 are only available in 24V DC or Hydraulic configurations.

What size chain is this deck unit compatible with?

The V6 is a heavy-duty unit capable of handling 10mm, 12mm, or 14mm chain. Because the gypsy itself is sold separately, you can choose the specific gypsy that matches your chain’s calibration (e.g., DIN766 or ISO). For 14mm chain, we specifically recommend using the Remote Chain Pipe version of this deck unit for optimal performance.

Is this unit suitable for my boat size?

The Lewmar V6 is typically recommended for vessels between 17m and 26m (approx. 55ft – 85ft). However, suitability also depends on your vessel's displacement and windage. A good rule of thumb for the V6 is to ensure the total weight of your anchor and rode multiplied by two is less than the unit's maximum pull.

Does this windlass have a manual override?

Yes. The V6 features a manual chain release and a cone clutch, allowing you to deploy the anchor safely in the event of a power failure.

What maintenance is required for the stainless steel finish?

While the 316 stainless steel is highly resistant to corrosion, we recommend rinsing the unit with fresh water after every trip to remove salt deposits. Periodically, the gypsy and clutch should be stripped, cleaned, and lightly greased with a marine-grade lubricant to ensure smooth operation.
