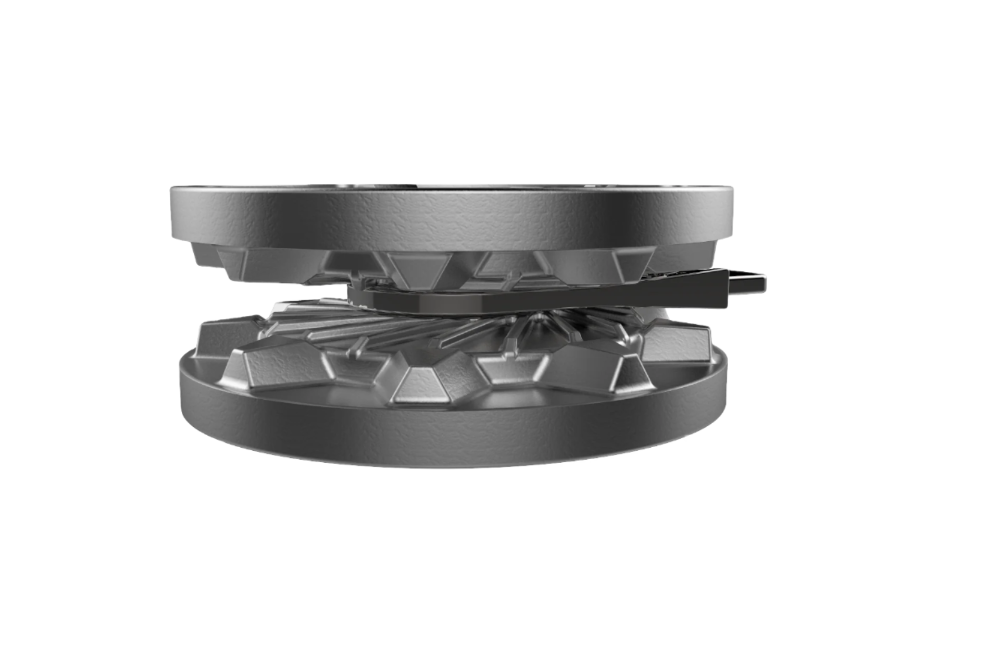

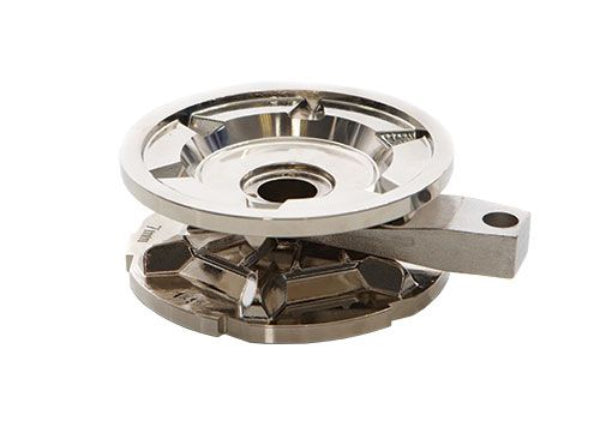

Lewmar V-Series Gypsy Kit
Lewmar V-Series Gypsy Kit are a replacement or accessory parts for Lewmar's line of vertical windlasses, designed to feed a specific size of anchor chain and/or rope rode smoothly. They are constructed from durable materials like chromed brass and hybrid polymers to withstand harsh marine environments.
Lewmar V-Series Gypsy Kit Key Features
- Rope-chain combination: Lewmar V-Series gypsies are typically designed as a combination rope/chain gypsy, capable of handling both the chain and rope sections of an anchor rode.
- Material: The use of a hybrid design, often a polymer chain wheel with a metal anchor warp core, makes them lightweight, durable, and quieter in operation compared to traditional all-metal designs.
- Function: The gypsy features a notched ring that meshes with the chain links to ensure the anchor is hoisted efficiently.
- Compatibility: Different gypsy kits are available for various V-Series windlass models (e.g., V1, V2, V3) and must be matched to the specific size and type of calibrated anchor chain and rope being used (e.g., 6mm, 7mm, 8mm, or 10mm chain sizes).
- Kit Components: A full "gypsy kit" often includes the gypsy itself along with a "stripper" component, internal gears, and other necessary installation hardware, though "gypsy only" options are also available.
- complete Lewmar V-Series Gypsy/Stripper Kit (e.g., for V1, V2, V3 models) typically includes the following items:
-
- Stripper: A mechanism that helps to properly guide the chain/rope off the gypsy and down the chain pipe.
- Internal Gears/Hardware: All necessary internal parts for a full replacement or installation.
- Deck Unit (in a full windlass kit): The visible top part that sits on the deck (if purchasing a complete windlass system, not just the replacement gypsy kit)
Lewmar V-Series Gypsy Kit FAQs
How do I know which gypsy kit I need for my V-Series windlass?
You must match the gypsy to the exact size and calibration of your anchor chain/rope. The gypsy is the notched ring designed to mesh precisely with specific link dimensions.
-
- Refer to the nameplate on your windlass's gear case (usually below deck for V-Series models) for the specific model number.
- Use the official Lewmar Windlass Gypsy Guide to cross-reference your chain/rope specifications with the correct gypsy model number (e.g., Gypsy 001 for 8mm DIN 766 chain).
Can I use different size chains or ropes with the same gypsy?
No, the gypsy is designed for specific dimensions and link types (e.g., 8mm DIN 766 or 8mm ISO 4565). Using an incorrect size or type can cause the chain to slip, jam, or damage the gypsy and windlass mechanism.
Which V-Series models are the gypsy kits compatible with?
Many replacement gypsy kits are compatible across several models, such as the Lewmar V1 , V2, and V3 windlasses, and some obsolete models like the Concept 1 windlass. Always verify the specific product description for compatibility with your exact model.
