Lewmar DTX Stainless Steel Anchor

Lewmar DTX Stainless Steel Anchor

Lewmar DTX Stainless Steel Anchor are   a high-performance, self-launching plow-style anchor made from durable 316 stainless steel. It is designed with a lead-ballasted tip for reliable, fast setting in a variety of seabed types.

Lewmar DTX Stainless Steel Anchor Key Features

• Material: The anchor is constructed from 316 stainless steel, which provides exceptional corrosion resistance and a polished aesthetic.
• Design: It features a one-piece, non-hinged plow design (similar to the classic Delta® anchor) with a narrow shank profile for deep penetration into the seabed.
• Ballasted Tip: The tip of the anchor is encapsulated with lead ballast to create the perfect centre of gravity, ensuring it sets immediately and reliably.
• Holding Power: The DTX anchor is certified to Lloyd's Ordinary Holding Power standard, offering excellent holding in a variety of conditions, including sand, mud, clay, grass, and rock.
• Ease of Use: Its design makes it self-launching and compatible with most bow rollers, simplifying the anchoring process.
• Durability: The anchor comes with a 3-year warranty against breakage, highlighting its robust construction.
• Safety Features: It includes an integrated eyelet for an anchor trip line, which can help in retrieving the anchor if it gets snagged on underwater obstacles.


Lewmar DTX Stainless Steel Anchor FAQs

How do I choose the correct size for my boat?

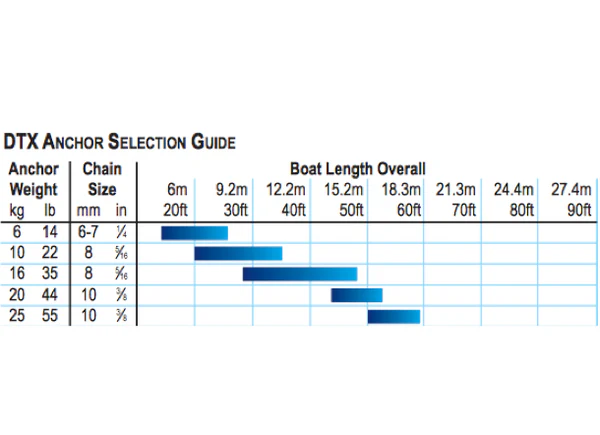

There is no single correct answer, as factors like boat length, displacement, and weather conditions play a role. Lewmar provides a general selection guide that pairs anchor weight with recommended boat length and chain size. For example, a 10 kg (22 lb) anchor is generally recommended for boats between 9.2m and 12.2m (30-40 ft). If in doubt, it is best to move up a model in size.

What seabed types is it suitable for?

The DTX anchor is considered versatile and suitable for a variety of seabed conditions, including sand, mud, clay, grass, and weeds.

What accessories are recommended?

A bow roller is needed to safely store the anchor and protect the hull during deployment and retrieval.

An appropriately sized anchor rode (rope/chain combination) is essential. The recommended chain size varies by anchor weight (e.g., 8mm for the 10kg anchor).

When at anchor, the rode should be secured to a chain stopper or cleat, as the windlass is a retrieval device and not a high-load bearing point.
