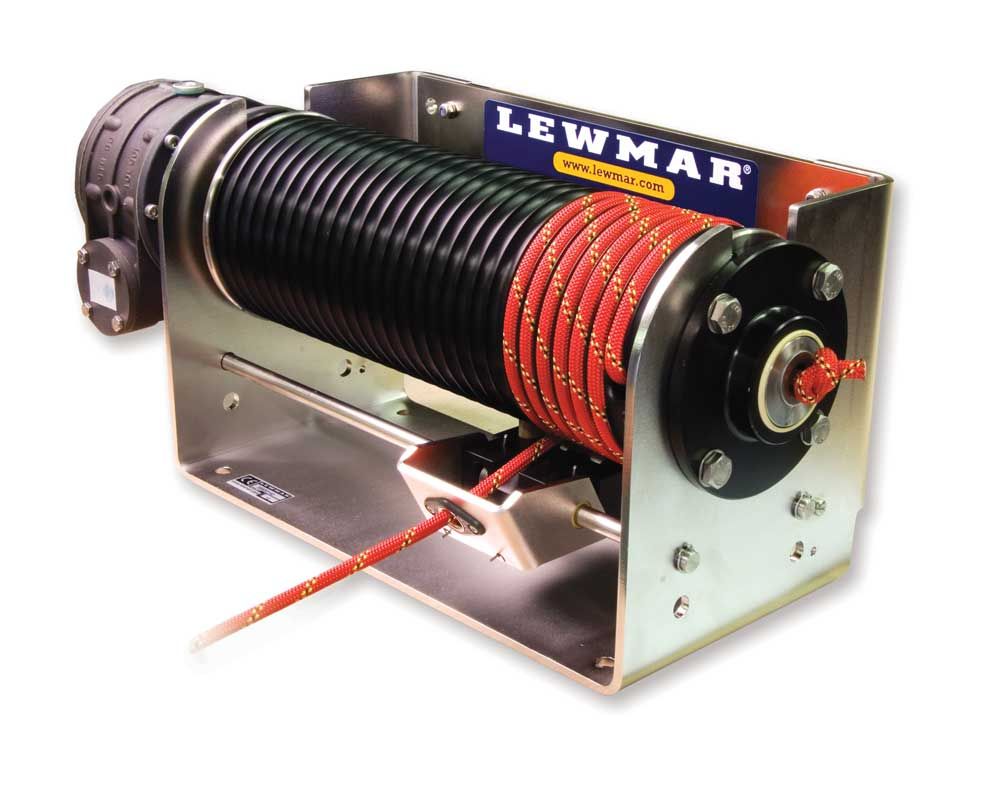

Lewmar CW800 Line Management System
Lewmar CW800 Line Management System (also known as the CW800 Captive Winch) is an electrically-operated winch designed for safe, remote-controlled line handling and storage. It is primarily used for managing main halyards or mainsheets on yachts where space on the cabin top is limited.
Lewmar CW800 Line Management System Key Features
- Space-Saving Design: It allows for out-of-sight installation, making it an ideal solution for smaller yachts that lack room for traditional powered winches on the deck.
- Vessel Compatibility: Optimized for yachts up to approximately 48 ft (14.6 m) in length.
- Versatile Operation: While ideal for halyards, it can be used for various lines depending on the specific line speed requirements.
- Integrated Storage: Unlike standard winches, it features a captive design that automatically stores the line as it is hauled in.
Technical Specifications :
| Power Options | Available in 12V (standard) and 24V (on request) configurations. |
| Line Diameter | Compatible with lines between 10 mm and 12 mm. |
| Tensile / Holding Force | Maximum pull of 1400 kg and holding force of 1500 kg. |
| Max Line Speed | Up to 33.5 m/min. |
| Max Line Storage | Can store up to 10.3 m of line. |
| Weight | Approximately 38.3 kg |
Lewmar CW800 Line Management System FAQs
- What are the primary uses for the CW800 ? It is ideal for handling and storing mainmast/foremast halyards or mainsheets. It is specifically designed for sailors who want powered winches but lack the deck space for traditional above-deck motors.
- What size boat is it suitable for? The system is rated for yachts up to approximately 14.6 meters (48 feet).
- What are the power requirements? The CW800 is available in both 12V and 24V electrical configurations.
-
What are the technical specifications?
- Max Line Length: 14.6 meters (approximately 48 feet).
- Line Size: Compatible with ropes ranging from 10mm to 12mm.
- Max Pulling Power: 1,200 kg.
- Max Holding Power: 1,500 kg.
- Max Line Speed: 45 meters per minute.
- Weight: Approximately 39.3 kg.
- How does it save space? Unlike standard winches that require vertical clearance for a motor beneath the drum, the CW800 allows lines to be hauled and stored remotely, allowing for more efficient deck and cabin-top layouts on smaller yachts.
