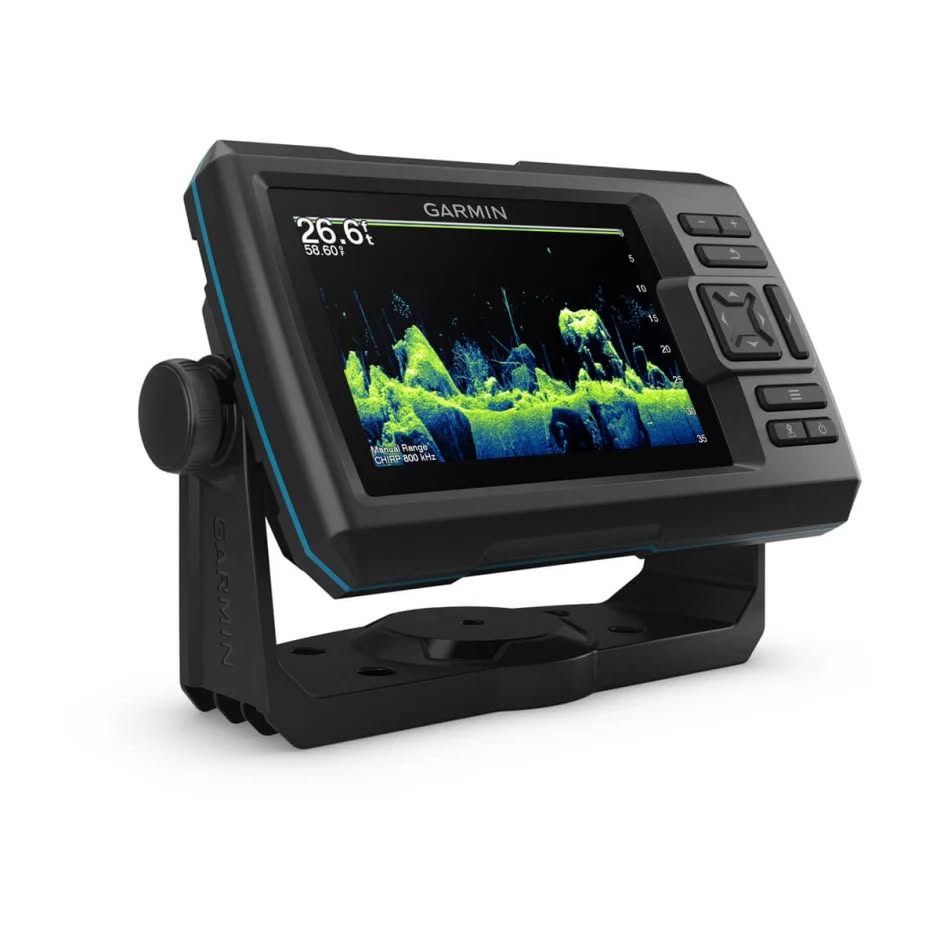

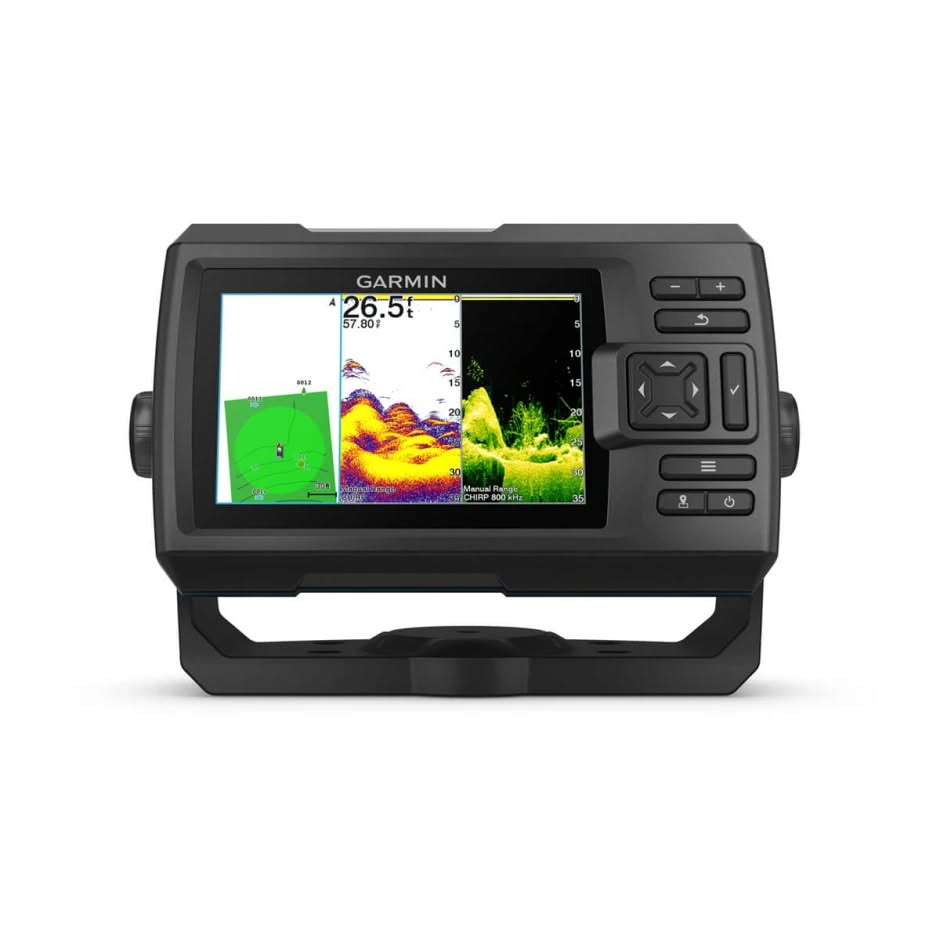

Garmin Striker Vivid 5cv without Transducer

See fish and structure in maximum detail when you pick your display colour, your location and your sonar for your day on the water with the STRIKER Vivid 4cv Fishfinder with transducer.

CLEAR, COLOURFUL SONAR

Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 5-inch Fishfinder.

SUPPORTS SONAR
This Fishfinder supports 2 types of sonar: Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a compatible transducer (sold separately).

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your Fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv Fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

INCLUDED HARDWARE

The STRIKER Vivid 5cv Fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Specifications:

General
Dimension    7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)
Weight    1.0 lb. (0.5 kg)
Water rating    IPX7
Display Type    WVGA colour
Display Size    2.6" x 4.3" (6.5 x 10.8 cm); 5.0" diag (12.8 cm)
Display Resolution    800 x 480 pixels
Mounting Options    flush, tilt/swivel
Input    Keyed

Maps & memory
Waypoints/favourites/locations    5000
Track points    50,000
Tracks    50
Navigation Routes    100

Sonar features & specifications
Displays sonar    Yes
Traditional sonar (dual frequency/beam)    Built-in
ClearVü    Yes
Frequency    Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Transmit power    500 W (RMS)
Bottom Lock (shows return from the bottom up)    Yes
Water Temperature Log    Yes

Fishfinder features
Split-screen zoom    Yes
Fish Symbol ID (helps identify fish targets)    Yes
AutoGain Technology (minimises clutter, maximises targets)    Yes
Adjustable depth line (measures depth of underwater objects)    Yes
A-scope (real time display of fish passing through transducer beam)    Yes
Water temperature sensor included    Yes
Depth range shading     Yes

In the box
STRIKER Vivid 5cv
Power/data cable
Tilt/swivel mount
Hardware
Garmin bumper sticker
Documentation
