Garmin

Garmin GPSMAP 8417 MFD With Worldwide Base map

SKU:010-01510-00

Regular price: £7,199.95 inc. VAT
Sale price: £7,199.95
Regular price: ~~£8,479.99~~

You save £1,280.04

FREE UK shipping on orders over £150. Exclusions apply.
Shipping calculated at checkout.

Click & Collect - available at Morgan Marine, Brightlingsea.

30-days Free Returns - see our returns policy

3 - 5 Working Days Delivery

Quantity

Rated - 4.6 / 5 on Google ⭐⭐⭐⭐⭐

Trusted - Marine supplier since 1972

Fast - UK delivery

Garmin GPSMAP 8417 MFD With Worldwide Base map

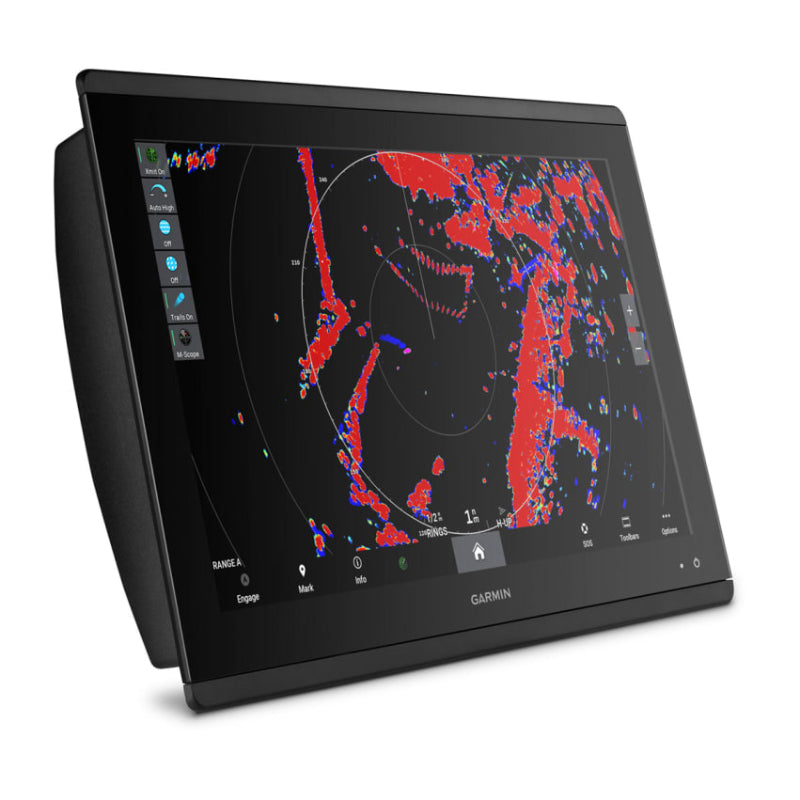

Garmin GPSMAP 8417 MFD With Worldwide Base map are a 17-inch large-format multifunction display (MFD) designed to serve as the centrepiece of a high-performance glass helm.

Garmin GPSMAP 8417 MFD With Worldwide Base map Key Features

Premium Display: Features a 17-inch Full HD (1920 x 1200) IPS touchscreen that is sunlight-readable and anti-glare. The In-Plane Switching (IPS) technology ensures consistent, accurate colours from all viewing angles.
High-Performance Processing: Equipped with a fast processor that enables rapid map drawing and enhanced video processing across the entire network.

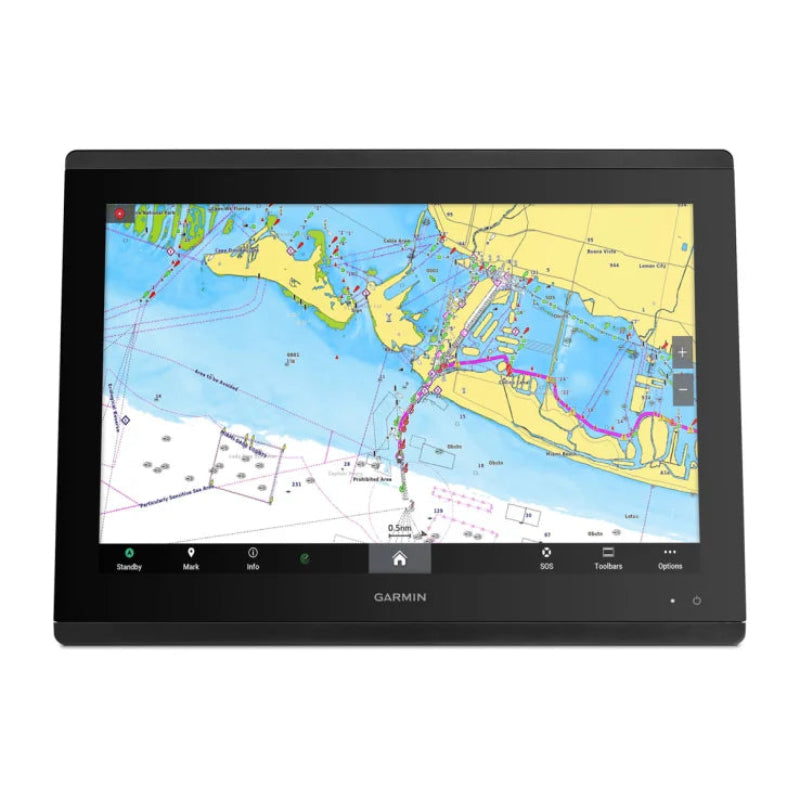

Worldwide Basemap: Preloaded with a general global map. For detailed navigation, it is compatible with premium cartography like Garmin Navionics+ or BlueChart g3 Vision.

System Integration & Connectivity

SmartMode Control: Provides one-touch access to pre-set modes (e.g., docking, fishing, cruising) to quickly change all screens at a helm in sync.
Full Networking: Supports seamless sharing of sonar, radar, maps, and user data across multiple displays via the Garmin Marine Network.

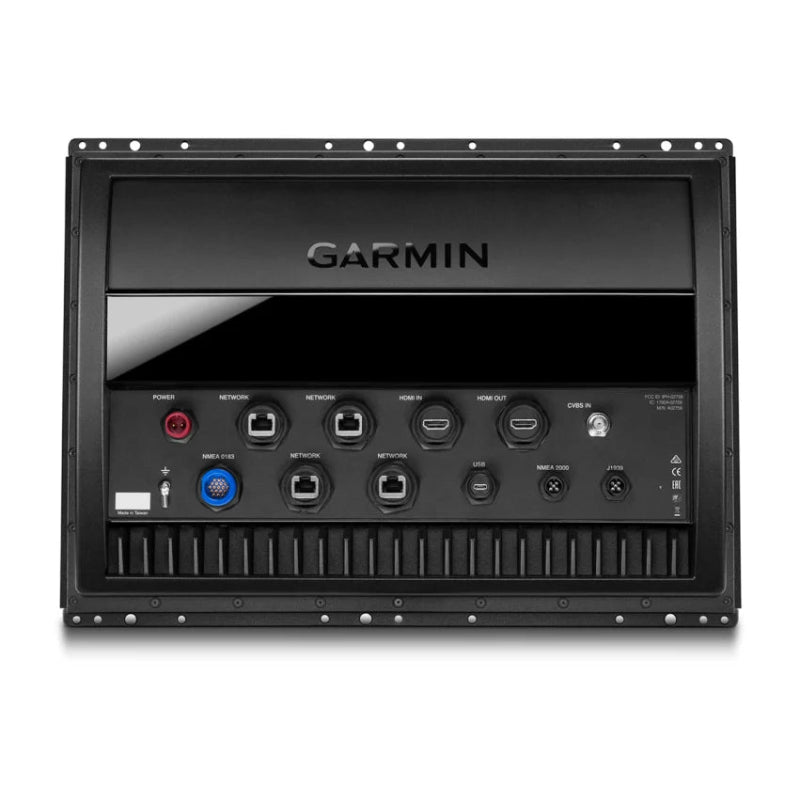

Expanded Connections: Includes 4 wired Ethernet ports, 1 HDMI input, 1 HDMI output, and NMEA 2000/0183 support.
Digital Switching: Integrates with CZone and EmpirBus for controlling lights, pumps, and other boat systems directly from the screen.
SailAssist: Dedicated sailing features including laylines, enhanced wind rose, and race start line guidance.
Sonar Support: While it does not have a built-in sonar module, it supports external Garmin Black Box Sonar modules for CHIRP, ClearVü, and SideVü scanning.
Dimensions: 41.9 cm x 30.7 cm x 7.1 cm.
Mounting: Can be installed with a low-profile flush mount or a flat edge-to-edge mount for a seamless glass helm look.
Water Rating: IPX7 (withstands incidental exposure to water of up to 1 meter for up to 30 minutes).

Garmin GPSMAP 8417 MFD With Worldwide Base map FAQs

What kind of maps are included with the device? The GPSMAP 8417 MFD comes with a worldwide basemap for general reference. It also includes integrated Garmin Navionics+™ coastal and inland mapping with Auto Guidance+™ technology for detailed navigation.
How do I get map updates? The Garmin Navionics+™ subscription includes a 1-year subscription for downloadable daily updates. You can download updates via the ActiveCaptain mobile app or Garmin Express on a computer.
Do I need to keep the SD card in the chartplotter to use the charts? Yes, the microSD or SD card with the purchased or downloaded chart data must remain in the chartplotter while the chart is being used.
