Garmin GPSMAP 8416xsv With Worldwide Base map and Sonar

Garmin GPSMAP 8416xsv With Worldwide Base map and Sonar

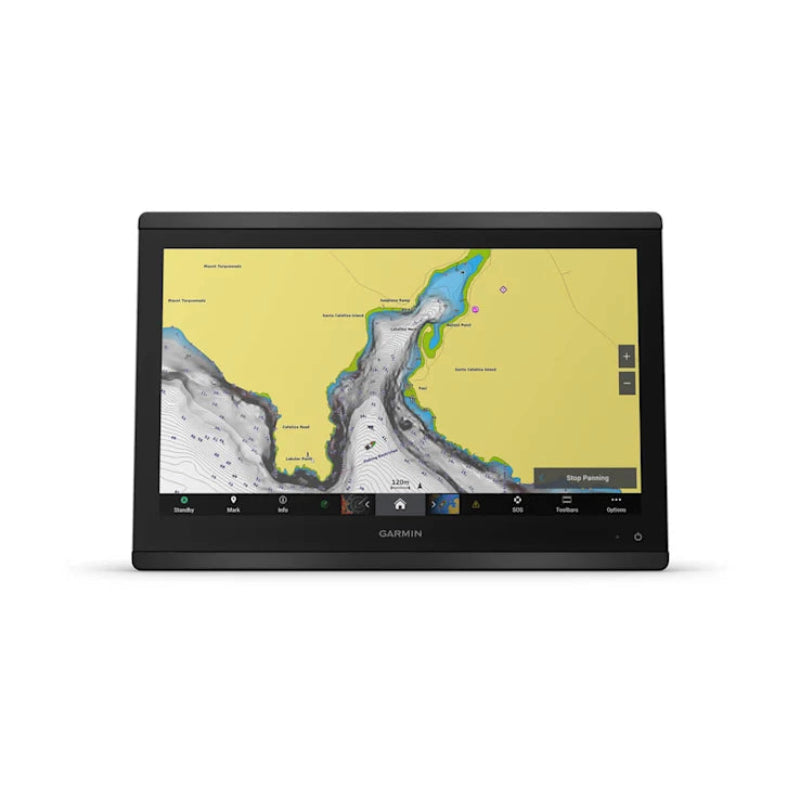

Garmin GPSMAP 8416xsv With Worldwide Base map and Sonar is a 16-inch, Full HD, all-in-one chartplotter/sonar combo unit designed for serious sport fishermen, cruisers, and sailors. It features extensive built-in sonar capabilities and advanced networking options for a comprehensive marine system.

Garmin GPSMAP 8416xsv With Worldwide Base map and Sonar Key Features

• Display: A 16-inch, full HD (1920 x 1080 pixels) In-plane Switching (IPS) touchscreen display that offers wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses.

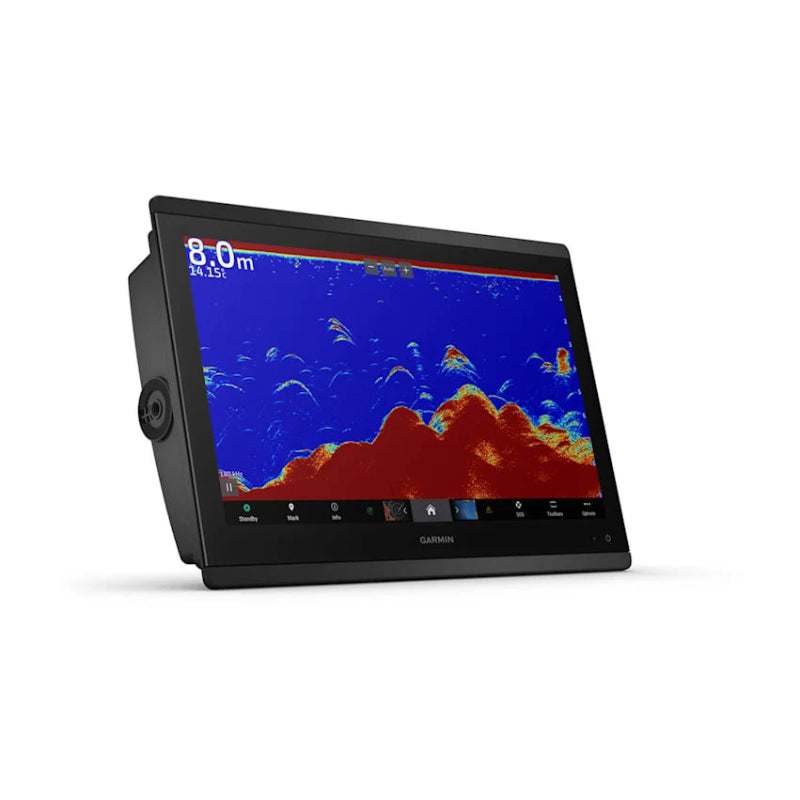

• Sonar: The "xsv" designation means it has built-in sonar support, including:
  • 1 kW Dual-Channel CHIRP traditional sonar for excellent target separation.
  • CHIRP ClearVü and SideVü scanning sonars, which provide near-photographic views of structure and fish below and around the boat.
  • Support for Ultra High-Definition scanning sonar and the entire Panoptix all-seeing sonar line (transducers are sold separately).
• Navigation & Mapping:
  • Comes preloaded with a worldwide basemap.
  • Features a 10 Hz GPS/GLONASS/Galileo receiver for smooth on-screen navigation.
  • Supports optional premium charts like Garmin Navionics+™ and Navionics Vision+™ with Auto Guidance+ technology.
• Networking & Connectivity:
  • Fully network capable via the Garmin Marine Network and NMEA 2000®/NMEA 0183 for sharing maps, user data, radar, and cameras across multiple units.
  • Built-in Wi-Fi® and ANT® technology enable connectivity with the free ActiveCaptain® app, wireless remotes, quatix® marine watches, and more.
  • OneHelm™ feature brings control of many third-party manufactured onboard marine products (like digital switching and lighting) to one screen.
• Durability: The unit has an IPX7 water rating, meaning it can withstand immersion in up to one meter of water for 30 minutes.
• Sailing Features: Includes the Garmin SailAssist feature, which provides critical data displays and pre-race guidance for sailors and racers.

Garmin GPSMAP 8416xsv With Worldwide Base map and Sonar FAQs

• What sonar capabilities are built-in? It includes integrated support for dual-channel 1 kW traditional CHIRP, CHIRP ClearVü, and CHIRP SideVü scanning sonars.
• Does it require a "black box" for sonar?  No, the "xsv" designation means the sonar processing is built directly into the unit. However, it is also compatible with GSD™ and GCV™ black boxes if you wish to expand capabilities further.
• Does it include a transducer?  No, the standard 8416xsv package requires a transducer to be purchased separately, depending on your specific depth and imaging needs.
• Is it compatible with LiveScope?  Yes, it has built-in support for Panoptix™ and LiveScope™ (including LVS12, LVS32, and LVS34).
• What maps are preloaded?  This specific model comes with a Worldwide Basemap, which provides general outlines and coastal boundaries but lacks high-detail contours for fishing or navigation.
• Can I upgrade the maps?  Yes, it is compatible with Garmin Navionics+™ and Garmin Navionics Vision+™, which offer high-resolution relief shading, satellite imagery, and Auto Guidance+ technology.
• How do I update maps?  Updates can be performed wirelessly via the Garmin ActiveCaptain App on a smartphone or through a microSD card.

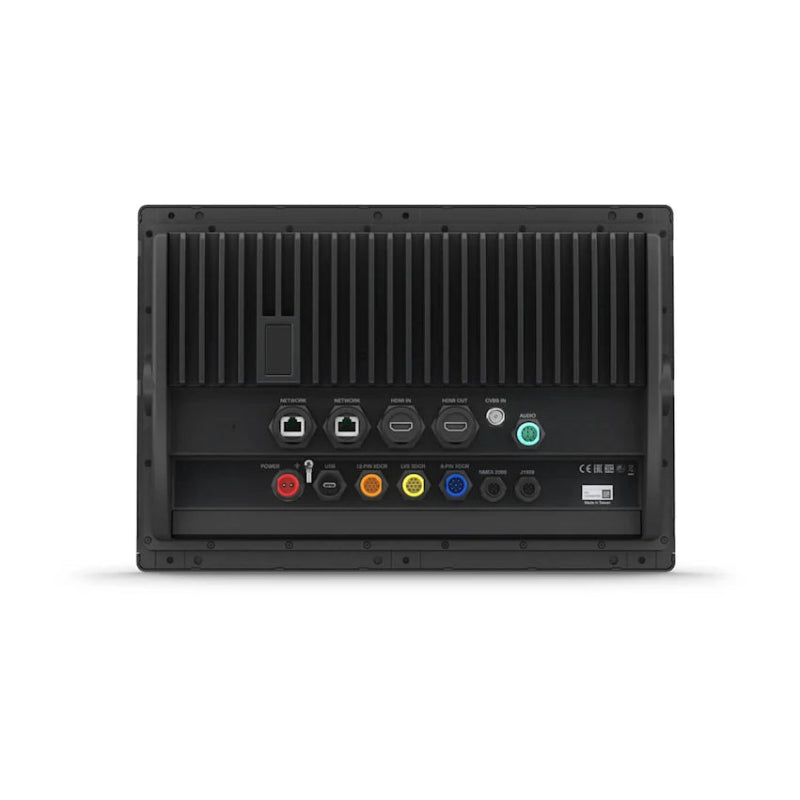

• Can I use it as a computer monitor?  Yes, it includes HDMI input/output and USB touch output, allowing it to function as a touchscreen monitor for Windows or Mac OS.
• What is OneHelm™? This system allows the 8416xsv to control third-party onboard equipment like digital switching, lighting, and stabilization directly from the touchscreen.
• Is it compatible with my existing radar? It is compatible with all modern Garmin marine radars via the Garmin Marine Network.
