Garmin GPSMAP 8416 With Worldwide Base map

Garmin GPSMAP 8416 With Worldwide Base map

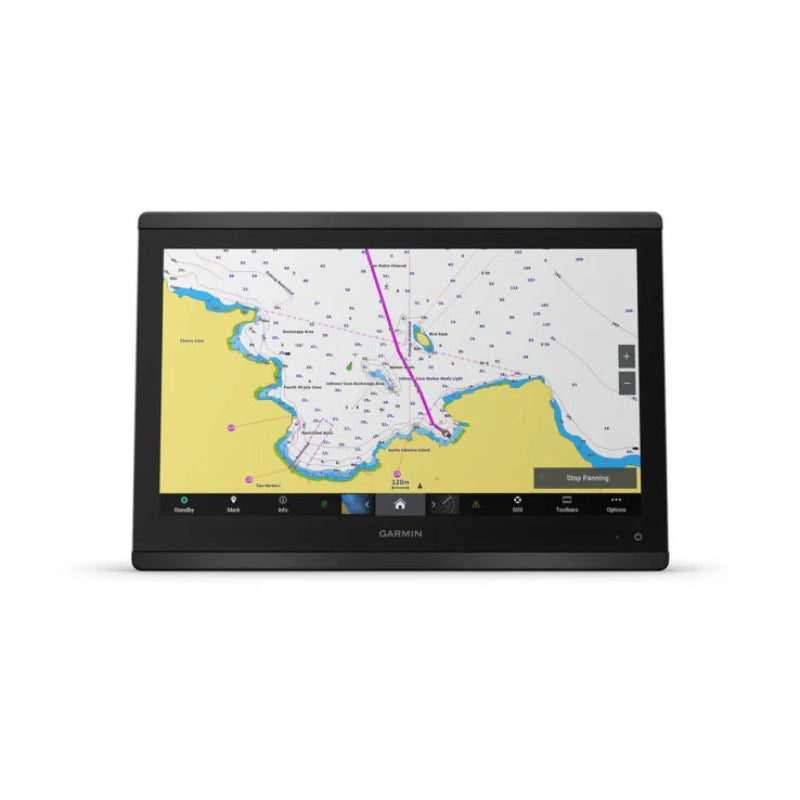

Garmin GPSMAP 8416 With Worldwide Base map are is a high-performance, 16-inch Full HD touchscreen chart plotter designed for serious cruisers, sailors, and racers who require comprehensive navigation and system integration capabilities.

Garmin GPSMAP 8416 With Worldwide Base map Key Features

• Display: Features a 16" Full HD IPS touchscreen display with an anti-glare finish, offering wider viewing angles and excellent sunlight readability, even with polarized sunglasses.
• Mapping: Comes pre-loaded with a worldwide basemap and is compatible with premium charts like Garmin Navionics+™ and Garmin Navionics Vision+™, which include features like Auto Guidance+™ technology for suggested routes.

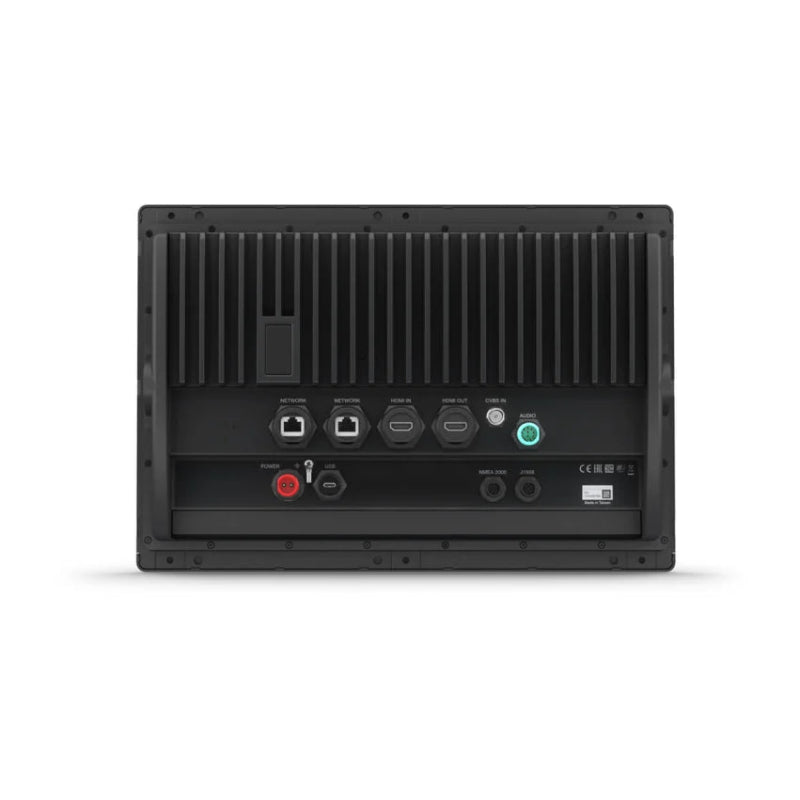

• Networking & Connectivity: The unit is fully network-capable, supporting the Garmin Marine Network (via 2 Ethernet ports) and NMEA 2000®/NMEA 0183 connectivity, allowing integration with radar, autopilots, cameras, media, and more. It also includes built-in Wi-Fi®, Bluetooth®, and ANT® wireless technologies for connection to mobile apps (ActiveCaptain®) and other wireless devices.
• Sonar Support: The standard GPSMAP 8416 model requires an external black box (sold separately) for traditional and scanning sonar functions (ClearVü, SideVü, CHIRP), though it supports the full range of Garmin sonar capabilities including Panoptix™ and LiveScope™ sonars. The 'xsv' variant has these built-in sonar capabilities (transducer still sold separately).
• Sailing Features: Includes the Garmin SailAssist™ feature, which provides critical data displays and pre-race guidance for racers, such as laylines, an enhanced wind rose, and tide/current information.
• System Integration: The exclusive OneHelm™ feature brings control of many third-party onboard marine products (e.g., digital switching, stabilization) to one screen. SmartMode™ station controls offer quick, one-touch access to information for high-stress situations like docking.
• GPS: A 10 Hz GPS/GLONASS/Galileo receiver provides fast and accurate position updates.
• Durability: The device has an IPX7 water rating, making it suitable for the marine environment.

Garmin GPSMAP 8416 With Worldwide Base map FAQs

• What is included in the "Worldwide Basemap"? The pre-installed worldwide basemap is a basic reference map that includes oceans, major rivers and lakes (greater than 30 sq. miles), principal cities, major interstates and highways, and political boundaries.
• Can I update the built-in basemap? No, the factory-installed internal basemap is permanent and cannot be updated or upgraded. For detailed navigation, you need to use supplemental, detailed charts like Garmin Navionics+ or Garmin Navionics Vision+, available on microSD/SD cards.
• How do I view detailed charts if they aren't displaying correctly? Ensure the 'Worldwide DEM Basemap, NR' is enabled in your map settings, and that other detailed maps you aren't currently using are disabled. A conflict between multiple enabled detailed maps can cause display issues.
• What should I do if the device says "Can't Unlock Maps"? This message suggests a potential issue with the map file's data, incorrect or missing unlock information, or a failed update. You should check for software updates using Garmin Express or the ActiveCaptain app.
• How does the Garmin Marine Network work? The Garmin Marine Network uses an RJ45-like connection to share data (like sonar, radar, and video) quickly between compatible Garmin devices.
• Does it have Wi-Fi and Bluetooth? Yes, the device features built-in Wi-Fi and Bluetooth connectivity for pairing with the ActiveCaptain app and streaming from wireless cameras.
• How should I mount the device? The GPSMAP 8416 supports flat mounting (edge-to-edge for a glass helm look) or flush mounting.
• What are the power requirements? The device requires a power input of 10 to 32V DC.
