Garmin GPSMAP 1022xsv - Without Transducer

Garmin GPSMAP 1022xsv - Without Transducer

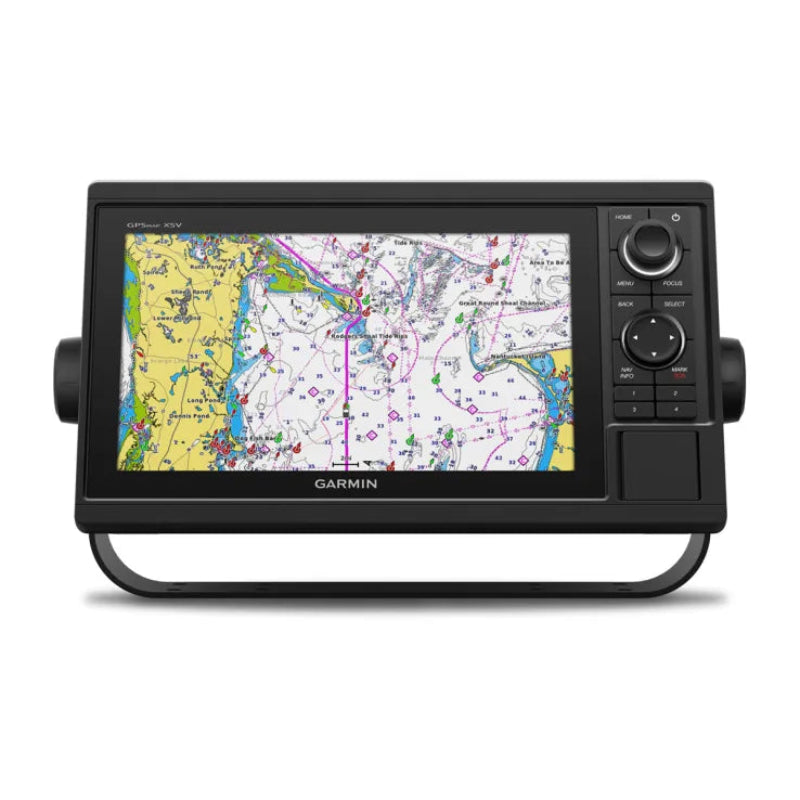

Garmin GPSMAP 1022xsv - Without Transducer are a all-in-one navigation and sonar solution. Designed for cruisers, sailors, and serious anglers, this unit features a large, sunlight-readable 10-inch display and a robust keyed interface for precise control in all conditions.

At Morgan Marine, we recommend the 1022xsv for mariners who value the reliability of physical buttons and a multifunction control knob, particularly when navigating in rougher seas or colder weather. This "xsv" version comes fully equipped with built-in sonar capabilities—including CHIRP, ClearVü, and SideVü—giving you incredible clarity beneath and around your boat (transducers sold separately).

Whether you are looking to build a fully integrated glass bridge or need a dependable standalone plotter, the GPSMAP 1022xsv offers seamless networking, advanced sail-assist features, and industry-leading Garmin navigation.

Garmin GPSMAP 1022xsv - Without Transducer Key Features

• Tactile Keypad Control: Features a bright 10-inch colour screen paired with a responsive keypad and a multifunction control knob. This design ensures easy, precise menu navigation and zoom control even when wearing gloves or in wet conditions.

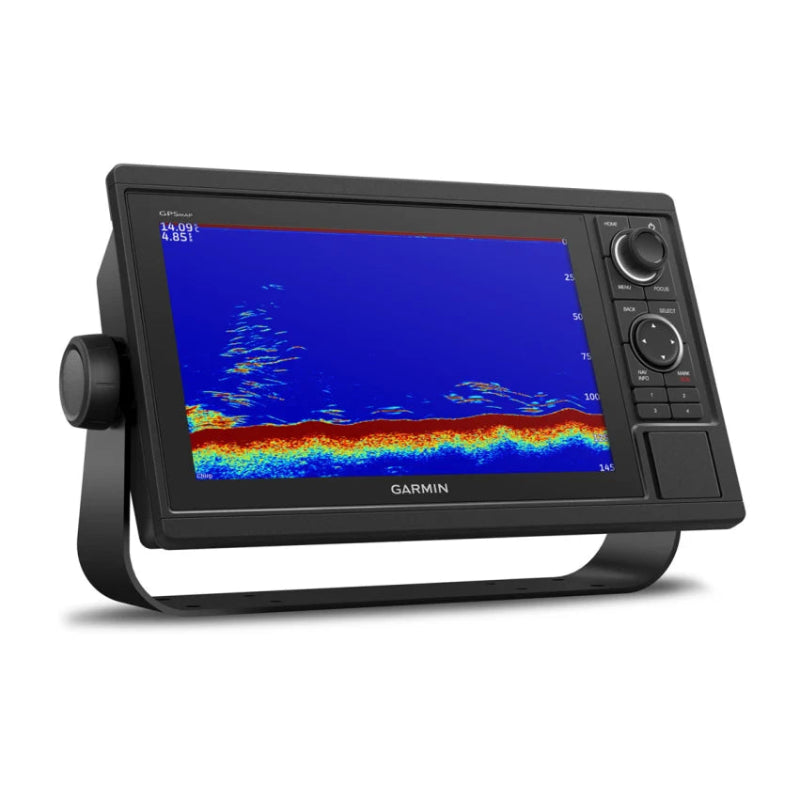

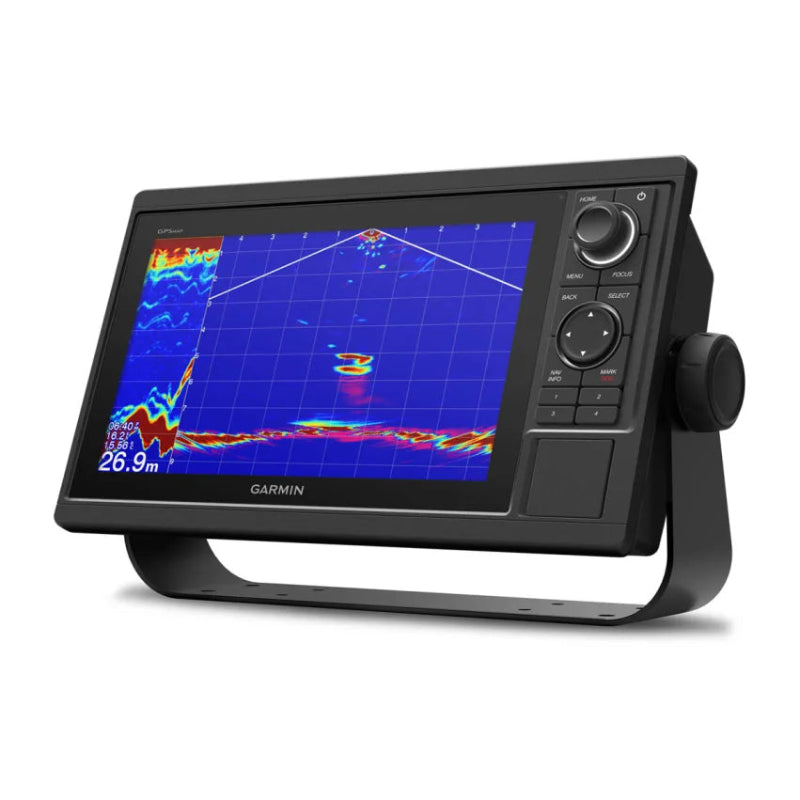

• Built-in Advanced Sonar: Integrated support for 1 kW CHIRP traditional sonar, plus CHIRP ClearVü and CHIRP SideVü scanning sonars. It is also compatible with the revolutionary Panoptix™ and LiveScope™ "all-seeing" sonar modules for real-time views.
• Full Network Integration: Fully compatible with the Garmin Marine Network and NMEA 2000®. Share sonar, maps, radar, and user data across multiple displays and easily connect to your autopilot, VHF, AIS, and engine data.
• Fast 10Hz GPS/GLONASS: The high-sensitivity internal GPS receiver refreshes your position and heading 10 times per second, ensuring your movement on the screen is fluid and your waypoints are pinpoint accurate.
• Garmin SailAssist™: Benefit from a pre-race guidance page showing your virtual starting line, laylines, enhanced wind rose, and race timer. Perfect for gaining a competitive edge on the water.
• Wireless Connectivity: Built-in Wi-Fi® allows you to pair with the free ActiveCaptain® app for access to OneChart™, smart notifications, and the Quickdraw™ Contours community. Built-in ANT® connectivity also pairs directly with quatix® watches and gWind™ Wireless sensors.
• Premium Map Support: Dual SD™ card slots allow for easy expansion. Upgrade to Garmin Navionics+™ or Navionics Vision+™ for high-resolution relief shading, satellite imagery, and Auto Guidance+™ technology.

What’s in the Box?

• • GPSMAP 1022xsv chartplotter
  • Power/data cable
  • NMEA 2000® T-connector & drop cable (2m)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective sun cover
  • Trim piece snap covers
  • Documentation

Note: This model does not include a transducer. Please contact the Morgan Marine team if you require advice on selecting the best transducer for your hull and fishing style.

Garmin GPSMAP 1022xsv - Without Transducer FAQs

Does the GPSMAP 1022xsv come with a transducer?

No, this specific part number is the "Without Transducer" version. This is the preferred choice for many of our customers because it allows you to choose the exact transducer that suits your hull and fishing style—whether that’s a transom mount, an in-hull, or a through-hull "all-in-one" transducer for SideVü and ClearVü scanning.

What sonar technology is built into this unit?

Right out of the box, the 1022xsv features a built-in 1kW single-channel CHIRP sonar, plus CHIRP ClearVü and CHIRP SideVü scanning sonars. It is also fully compatible with Garmin’s Panoptix™ and LiveScope™ "all-seeing" sonar modules, which provide real-time moving images of fish and structure around your boat.

Is the screen a touchscreen or keypad-operated?

The 1022xsv is a keyed combo unit. It features a bright, 10-inch WSVGA display controlled by a high-quality keypad and a multifunction control knob. Many of our local skippers prefer the tactile keypad for use in rougher UK waters, as it provides reliable control even with wet hands or gloves.

What charts do I need for UK coastal navigation?

The unit comes with a basic worldwide basemap. For detailed navigation, we recommend upgrading to Garmin Navionics+™ or Garmin Navionics Vision+™ cartography. These provide high-resolution depth contours, harbour details, and Garmin’s Auto Guidance+ technology to help suggest the best paths through tricky channels.

Can I connect this to my existing engine or instruments?

Absolutely. The unit is fully NMEA 2000® and NMEA 0183 capable. This means you can network it with your AIS, VHF, autopilots, and even your engine to view RPM, fuel flow, and temperature data directly on the 10-inch screen. It also features two Garmin Marine Network ports for sharing data (like radar or sonar) across multiple screens.

Can I use my phone or tablet with the 1022xsv?

Yes, it features built-in Wi-Fi® which allows you to use the free ActiveCaptain® app. This is a brilliant tool for planning your trips at home, updating your software wirelessly, and even receiving smart notifications (calls and texts) on the chartplotter screen while your phone is tucked away safely in a dry locker.

How fast is the GPS refresh rate?

The unit features a high-sensitivity internal 10 Hz GPS and GLONASS receiver. This refreshes your position and heading 10 times every second, ensuring your movement on the screen is fluid and your "Course Over Ground" data is incredibly accurate—essential when navigating narrow harbour entrances.

Is this unit suitable for sailing?

Yes, Garmin has included built-in SailAssist features. You can view laylines, enhanced wind roses, and heading/COG lines. It also supports polar tables to help you find the optimal speed and angle for your specific vessel.
