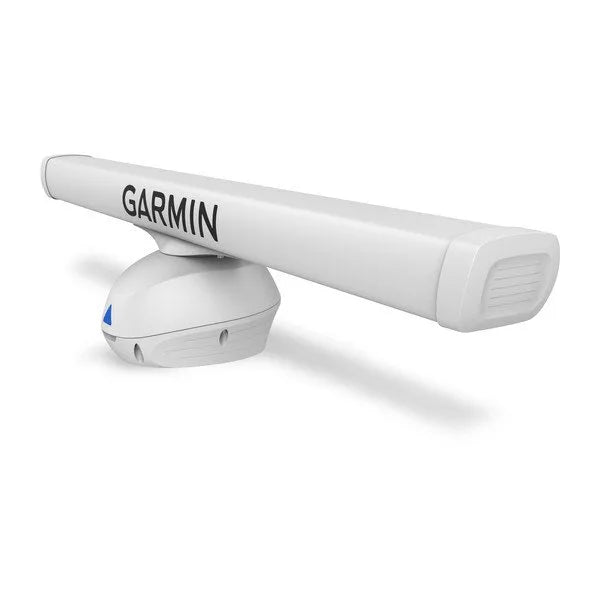

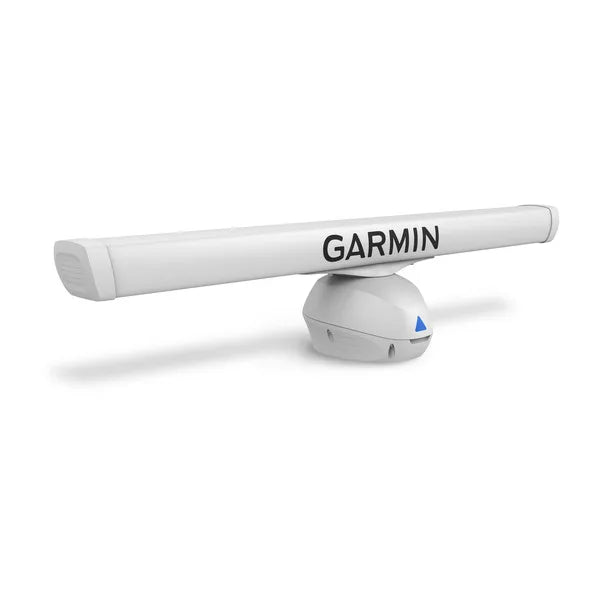

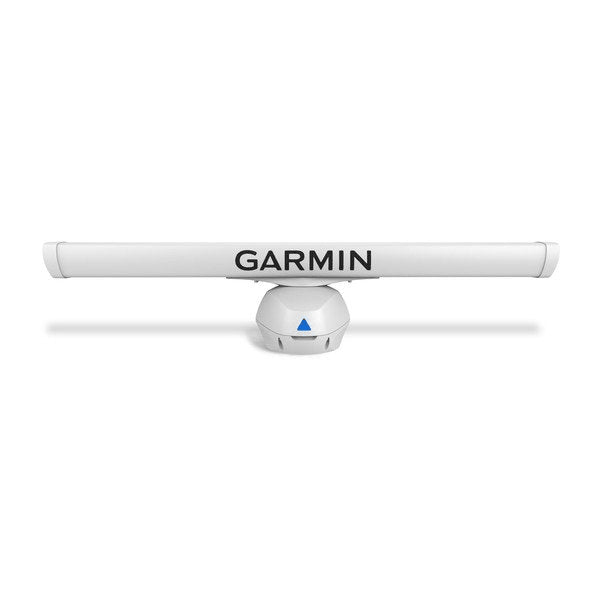

Garmin GMR Fantom 126 Open Array and Pedestal in White
Garmin GMR Fantom 126 Open Array and Pedestal in White are a high-performance, 6-foot open-array radar and pedestal system finished in white. Designed for experienced mariners, it provides 120 watts of solid-state power to deliver detailed imaging and long-range detection, even in adverse conditions like fog or rain.
Garmin GMR Fantom 126 Open Array and Pedestal in White Key Features
- Powerful Detection: Offers a broad detection range from 6 meters (20 feet) to 96 nautical miles.
- MotionScope™ Technology: Uses the Doppler effect to detect and highlight moving targets in different colours (e.g., green for targets moving away, red for those approaching) to help avoid collisions.
- Pulse Compression: Maximizes energy efficiency while providing high-resolution imaging for better target identification.
- High-Resolution Beam: Features a narrow 1.25-degree horizontal beamwidth for crisp target separation and high antenna gain to pick out weak targets at a distance.
- Dual Rotation Speeds: Operates at 24 RPM for reduced power consumption or 48 RPM for rapid screen updates.
- Auto Bird Gain: Specifically helps locate flocks of birds at the water's surface, which often indicates the presence of baitfish and fishing spots.
- Dual-Range Split Screen: A single antenna can provide independent close- and long-range radar images simultaneously on a Garmin Chartplotter.
- Echo Trails: Leaves a historical "trail" on the screen to help quickly identify moving targets and potential collision threats.
- MARPA Target Tracking: Tracks up to 30 selected targets to assist in collision avoidance.
- Dynamic Filters: Features Dynamic Auto Gain and Dynamic Sea Filter to automatically adjust levels for optimal performance in various sea conditions (calm, medium, or rough).
- Dimensions:<> Pedestal is 42.1 x 36.4 x 27.1 cm; Antenna length is 182.9 cm (6 feet).
- Weight: Array is 7.3 kg (16 lb); Pedestal is 15.7 kg (34.7 lb).
- Durability: IPX6 water rating and can withstand maximum wind loads of up to 80 knots.
- Power Input: Operates on a 10-32 V DC input voltage.
Garmin GMR Fantom 126 Open Array and Pedestal in White FAQs
- What is the maximum range of this radar? It has an impressive maximum range of 96 nautical miles.
- How well does it detect close-range objects? It can detect targets as close as 6 meters (20 feet) from the vessel.
- What is MotionScope™ and how does it help? MotionScope uses the Doppler effect to highlight moving targets in different colours (e.g., green for moving away, red for approaching) to help avoid collisions or find birds.
- Can it find birds for fishing? Yes, the Auto Bird Gain feature helps locate flocks of birds at the water's surface, which often indicates baitfish below.
- What are its power requirements?
It operates on an input voltage of 10-32 V DC. - How heavy is the assembly? The 6-foot array weighs approximately 7.3 kg (16 lbs) and the pedestal weighs 15.7 kg (34.7 lbs).
- What is the rotation speed? It offers dual rotation speeds of 24 RPM (for power efficiency) and 48 RPM (for fast screen updates).
- What is the beamwidth? It features a narrow 1.25° horizontal beamwidth for superior target separation and high resolution.
- Can it track multiple targets? Yes, with MARPA target tracking, it can track up to 30 selected targets simultaneously (requires a heading sensor, sold separately).
- Does it support split-screen viewing? Yes, it features Dual Range capability, allowing a single antenna to provide side-by-side images on your chartplotter for both close and long-range monitoring.
-
What comes in the box?
Typically includes the GMR Fantom 126 antenna and pedestal, mounting hardware kit/template, 15m power cable, 15m network cable, and a voltage converter.
