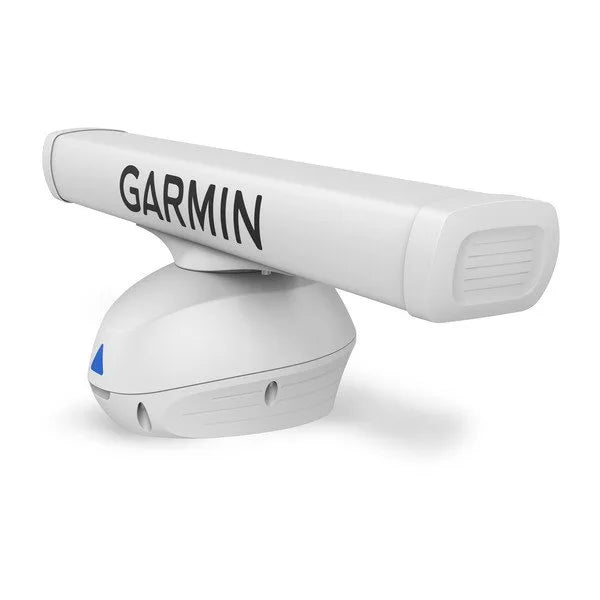

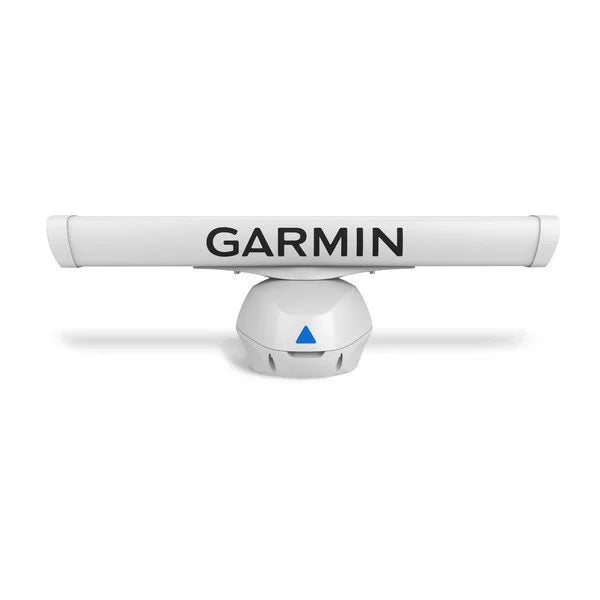

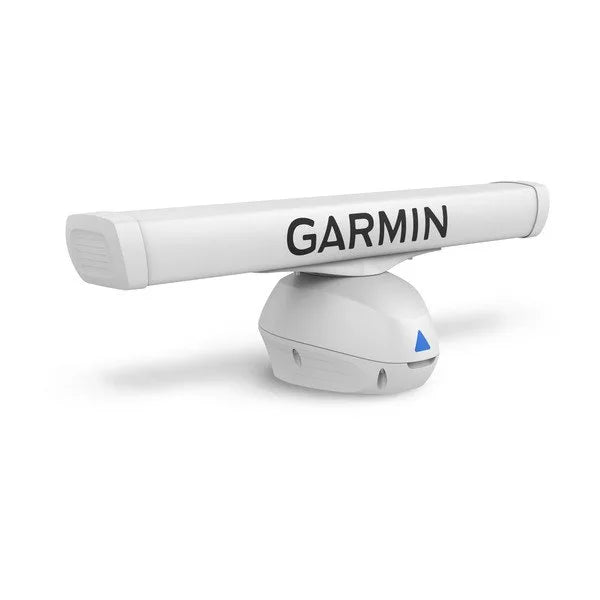

Garmin GMR Fantom 124 Open Array and Pedestal in White

Garmin GMR Fantom 124 Open Array and Pedestal in White

Garmin GMR Fantom 124 Open Array and Pedestal in White are a high-powered, 4-foot (121.92 cm) solid-state open-array marine radar system that uses pulse compression and Doppler technology for superior target detection and collision avoidance. It is designed for experienced mariners and longer sessions at sea, offering excellent close- and long-range performance.

Garmin GMR Fantom 124 Open Array and Pedestal in White Key Features

• High-Powered Radar: Provides 120 watts of power with a range from 6 meters to 96 nautical miles.
• MotionScope™ Technology: Uses the Doppler effect to highlight moving targets in different colors, assisting in collision avoidance and identifying fishing areas.
• High-Resolution Imaging: Achieves a sharp image and high antenna gain with a 1.8-degree beamwidth and pulse compression.
• Dynamic Adjustments: Includes Dynamic Auto Gain and Dynamic Sea Filter for optimizing performance in various conditions.
• Navigation Features: Offers Dual Range for simultaneous close and long-range views, Radar Overlay, MARPA Target Tracking for up to 30 targets, and Auto Bird Gain for finding fishing spots.
• Design: Features a robust pedestal and an IPX6 water rating for durability.

Technical Specifications :

Garmin GMR Fantom 124 Open Array and Pedestal in White FAQs

• What is the primary benefit of the 120-watt power output? The 120W output provides superior target tracking and a maximum detection range of 96 nautical miles, ensuring high-resolution imaging even in difficult conditions like fog or heavy rain.
• How does MotionScope™ technology assist with navigation? It uses the Doppler effect to highlight moving targets in different colours: targets moving toward you are typically red, while those moving away are green, aiding in collision avoidance.
• Can it detect birds for fishing? Yes. The Auto Bird Gain feature helps locate flocks of birds at the water's surface, which often indicates the presence of baitfish.
• Is it compatible with my current chartplotter? It is compatible with modern Garmin network-capable chartplotters. It supports Radar Overlay, allowing you to see radar data directly on your map page.
• What are the rotation speed options? The radar offers dual rotation speeds: 24 RPM for reduced power consumption and 48 RPM for faster screen updates during rapid manoeuvres.
• What is required for MARPA target tracking? To track up to 30 selected targets using MARPA, an optional heading sensor (sold separately) is required.
