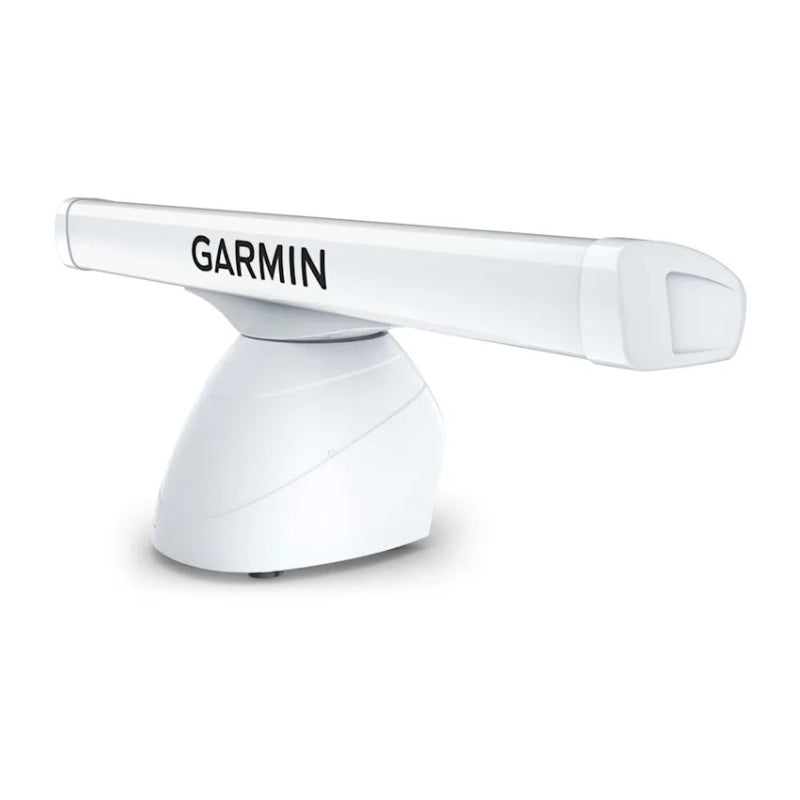

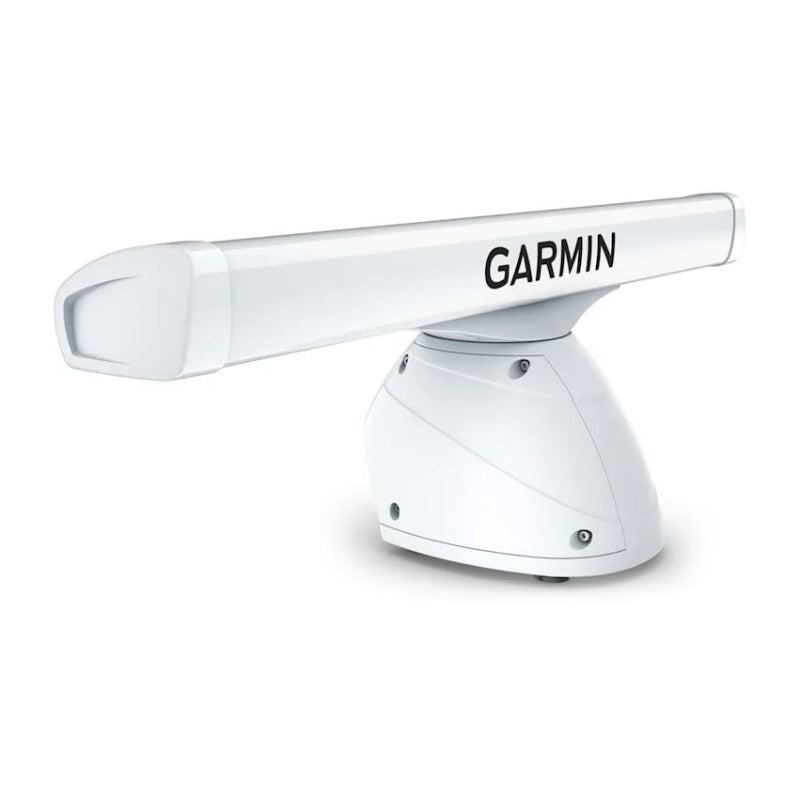

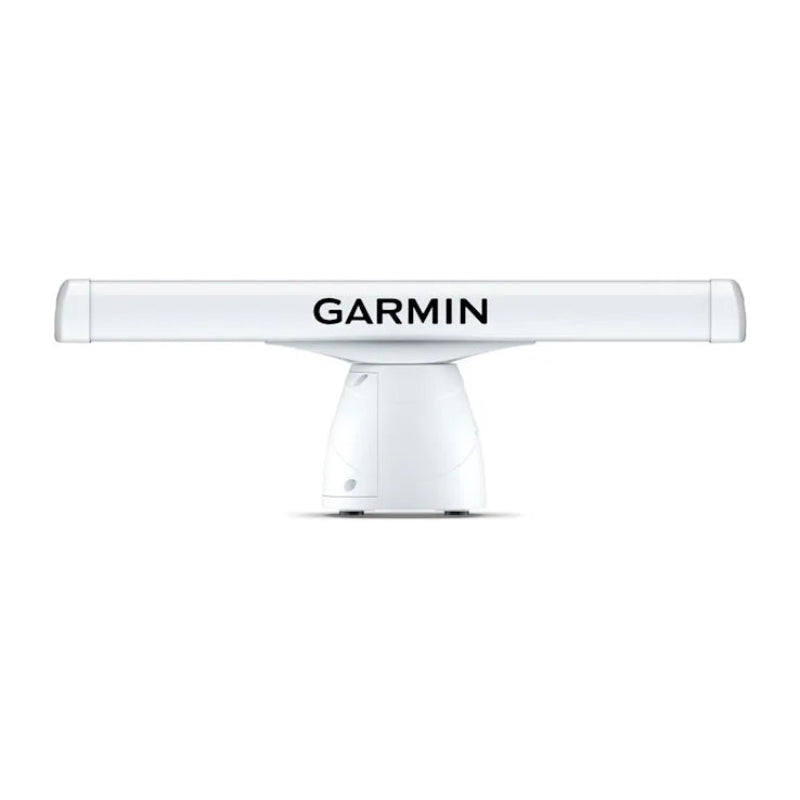

Garmin GMR 2534 xHD3 Open Array Radar and Pedestal
Garmin GMR 2534 xHD3 Open Array Radar and Pedestal are a high-performance, 25-kW marine radar system designed for superior weather, obstacle, and traffic detection for offshore cruising and fishing. It provides high-definition imaging and advanced features like scan averaging to enhance situational awareness on the water.
Garmin GMR 2534 xHD3 Open Array Radar and Pedestal Key Features
- Dimensions (Pedestal): 520 x 328 x 314 mm (20.5" x 12.9" x 12.4")
- Antenna Length: 4 feet (48 inches/122 cm)
- Weight (4' array and pedestal): 28.4 kg
- Transmit Power: 25 kW
- Water Rating: IPX6
In the Box:
Garmin GMR 2534 xHD3 Open Array Radar and Pedestal FAQs
- What is the maximum range? The radar has a maximum detection range of 96 nautical miles.
- What is the minimum range? The minimum range for target detection is 20 meters.
- What is the maximum wind load it can withstand? The unit has a 100-knot commercial-grade wind rating.
- What are the rotation speeds? The antenna can rotate at speeds of 24 and 48 RPM for fast screen updates.
- Is it waterproof? Yes, the Garmin GMR 2534 xHD3 has an IPX6 waterproof rating.
- Does it have dual-range capability? Yes, it supports split-screen, dual-range displays on compatible chartplotters, allowing for independent range settings for both close and long-range views simultaneously.
- Does it support radar overlay on charts? Yes, you can overlay radar images on your chartplotter's map screen, though this may require appropriate sensors (sold separately).
- What is Scan Averaging technology? Scan averaging is a feature that helps filter out sea clutter and interference, which enhances the detection and display of consistent targets.
- Does it track targets automatically (MARPA)? Yes, it supports MARPA target tracking, but this function requires a compatible heading sensor, which is sold separately.
- Does it have "Auto Bird Gain"? Yes, the radar has Auto Bird Gain, which helps locate flocks of birds at the water's surface, indicating potential baitfish locations.
- Does it have MotionScope technology? No, this specific model (GMR 2534 xHD3) does not list MotionScope among its features, which is typically found on Fantom series solid-state radars.
- What power input is required?
The unit requires a power input of 10-32 V DC. -
What is included in the box?
The box typically includes the GMR xHD3 25 kW open array pedestal with the 4' antenna, a 15m power cable, a 15m network cable, a mounting hardware kit and template, and installation instructions. - Where should the radar be mounted? According to Garmin's installation instructions, the radar should be mounted at least 1 meter (40 inches) from other transmitting equipment or radio signal cables and at least 2 meters (6.5 feet) away from SSB radios to avoid interference. It also needs to be at a safe distance from magnetic compasses.
- Can I perform maintenance myself? Garmin advises caution with servicing the unit due to high voltage capacitors that can hold a charge, even after disconnecting power. Repairs and maintenance are complex and can result in injury or product damage if not done correctly. Garmin recommends all necessary precautions against high voltage.
