Garmin GHC 50 Marine Autopilot Instrument
SKU:010-02731-00
- Regular price
- £613.95 inc. VAT
- Sale price
- £613.95
- Regular price inc. VAT
-
£730.00
FREE UK shipping on orders over £150. Exclusions apply.
Shipping calculated at checkout.
Click & Collect - available at Morgan Marine, Brightlingsea.
30-days Free Returns - see our returns policy
Rated - 4.6 / 5 on Google ⭐⭐⭐⭐⭐
Trusted - Marine supplier since 1972
Fast - UK delivery

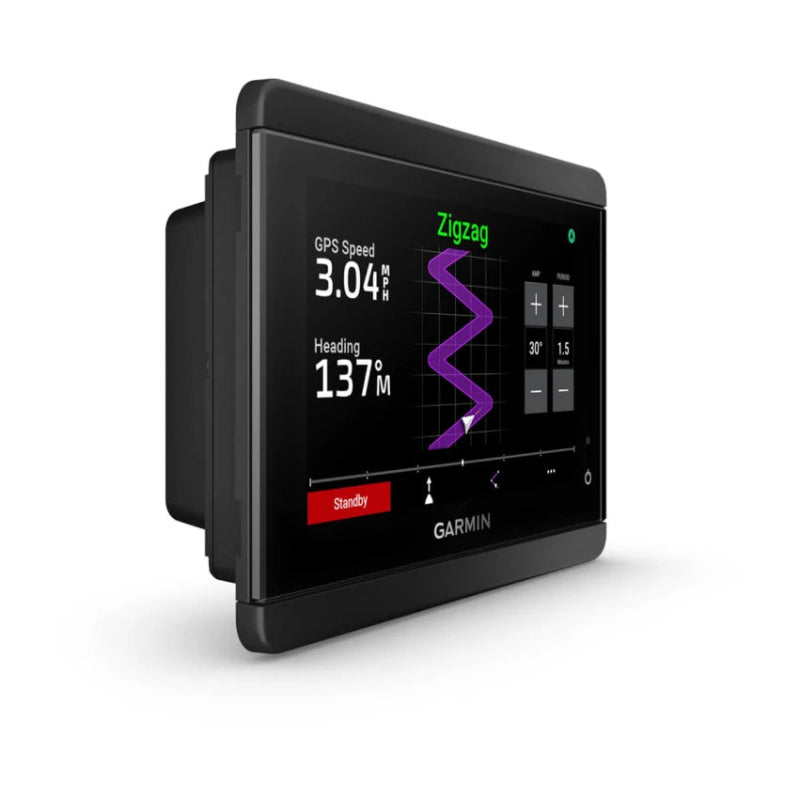

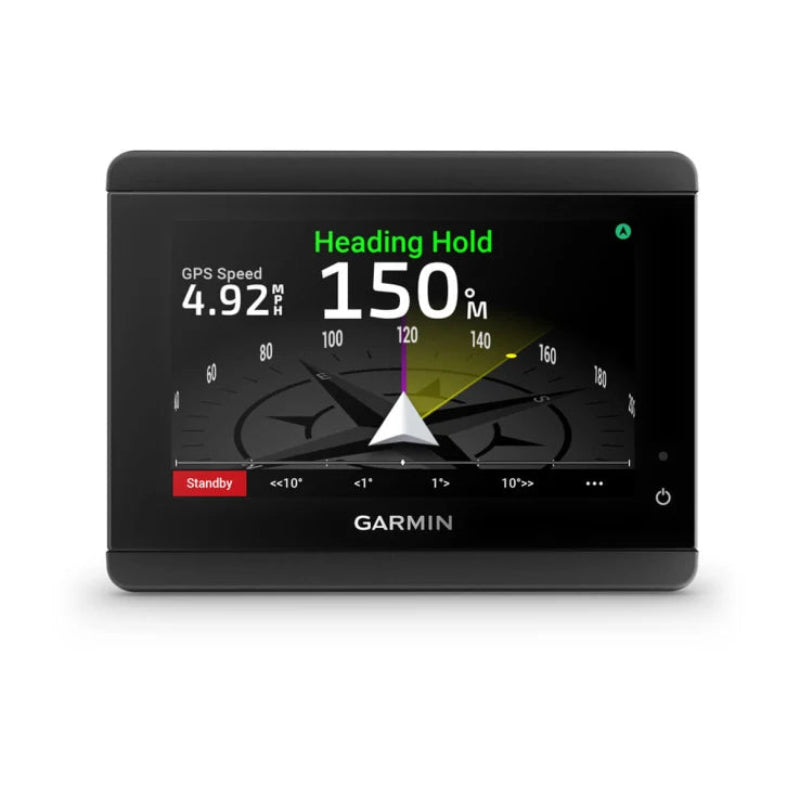

Control your boat with confidence using the GHC 50 autopilot instrument. Featuring a 5” high-resolution touchscreen interface, this stand-alone, easy-to-navigate autopilot acts as your boating companion – no matter where the waters take you. Its edge-to-edge glass design aligns with high-end GPSMAP chart plotters to create a sleek, stunning look for your helm. After sharing setting with your installed Garmin MFDs, GHC 50 and your other Garmin units on your boat become a single system for seamless operation. Choose between wireless remote or wire-controlled options, plus Ethernet interphase allows for network sharing and Wi-Fi connectivity.
GHC 50 is compatible with all GHP Reactor autopilots.
Features:
• Bright, high-resolution 5” WVGA touchscreen display provides easy navigation and readability
• Premium industrial design with edge-to-edge glass aligns with high-end GPSMAP chartplotters
• Operate your autopilot via wired or wireless remote-control options for on-board freedom and convenience
• Share settings with your installed Garmin MFDs for a seamless operation between GHC50 and your other installed Garmin devices, and enjoy Ethernet capabilities for network sharing and Wi-Fi connectivity
• Compatible with all GHP Reactor autopilots
• Compatible with quatix multisport marine smart watches, the Garmin autopilot remote and GRID 20 remote
• Includes two trim snap piece cover options to match the GHC 50 autopilot instrument with the GPSMAPx3 chartplotter series and GPSMAP 8600 chartplotter series
GHC 50 Specifications:
• Dimensions: 5.5” x 4.1” x 2.0” (140 x 105 x 51 mm)
• Touchscreen: Yes
• Display resolution: 800 x 480
• Display type: WVGA
• Weight: 11.57 oz (328 g)
• Water rating: IPX7
• Mounting options: Flat or flush

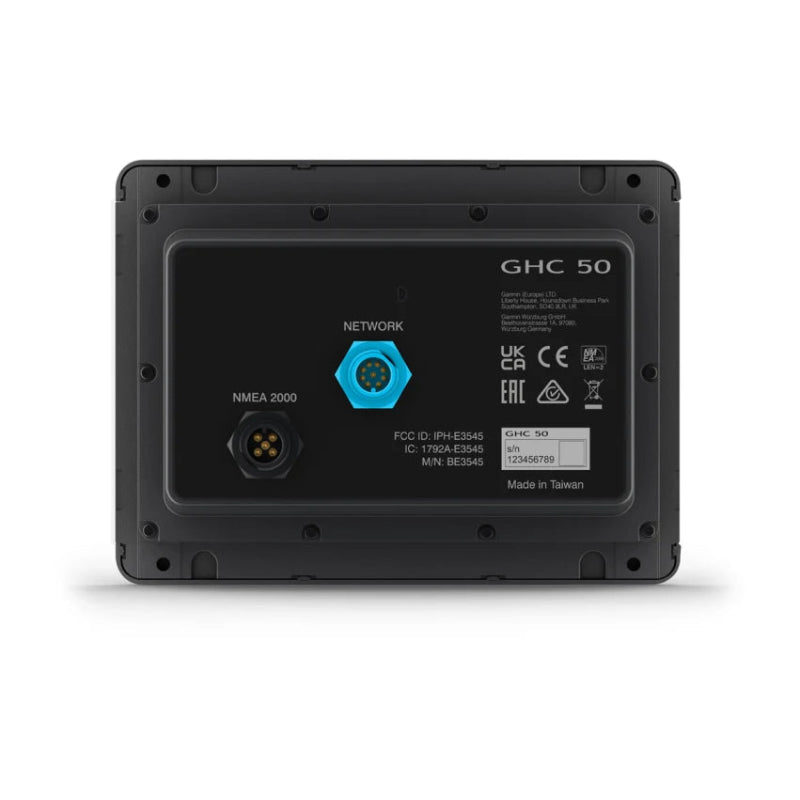

• NMEA 2000 ports: 1
• Garmin Marine Network ports: 1
• ANT+ (Connectivity): Yes
• Garmin Wi-Fi Network (local connection): Yes
• Power input: 9 to 32 Vdc
• Typical current draw at 12 VDC: 220 mA
• Maximum current draw at 12 VDC: 400 mA
• Maximum power usage at 10 VDC: 4.9 W
In the Box:
• GHC 50
• Black trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• Garmin Marine Network cable
• Garmin Marine Network adapter cable
• NMEA 2000 drop cable
• NMEA 2000 T-connectors and terminators
• Documentation
