Garmin EmpirBus NXT DCM

Garmin EmpirBus NXT DCM

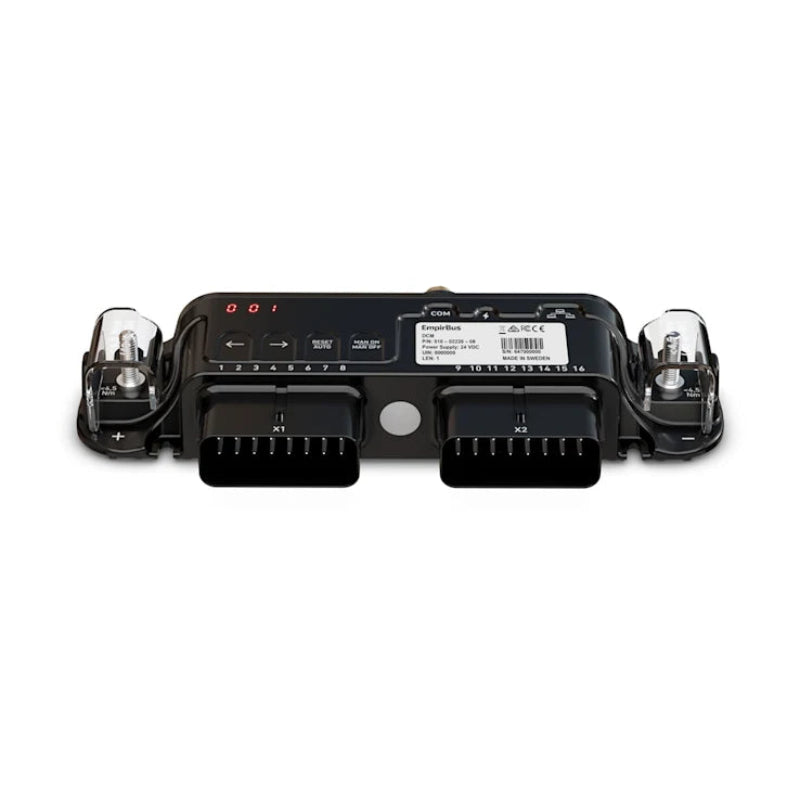

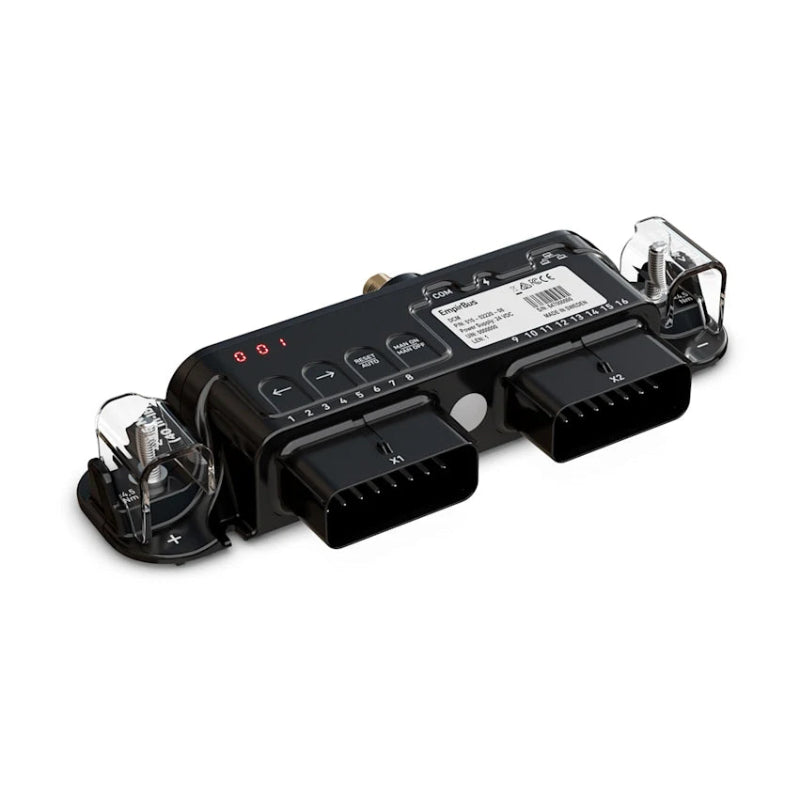

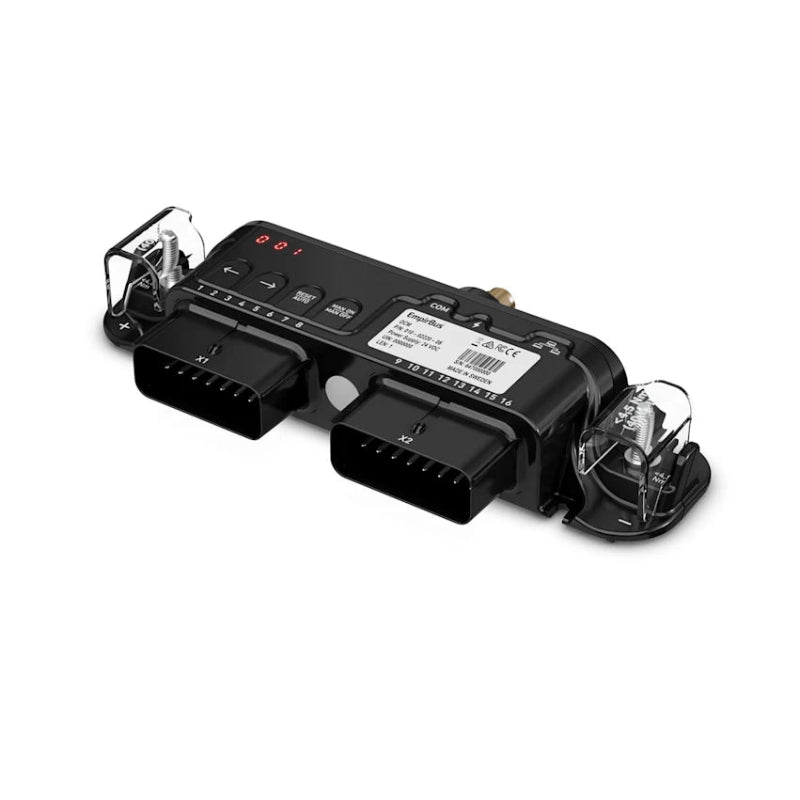

Garmin EmpirBus NXT DCM are the cornerstone of a modern, reliable, and intelligent digital switching system for your vessel.

By replacing traditional mechanical switches and bulky fuse panels with this compact, solid-state solution, you gain unparalleled control over your boat's electrical systems through your Garmin MFD (Multi-Function Display).

The EmpirBus NXT DCM is an incredibly versatile NMEA 2000® device designed to streamline your onboard electronics. Whether you are looking to automate your lighting, manage complex wiper systems, or simply reduce the weight and complexity of your wiring, the NXT DCM is the professional’s choice.

Each module acts as an intelligent hub, connecting directly to your NMEA 2000 backbone. From there, it communicates with other modules and your Garmin chartplotters to give you a "glass cockpit" experience—allowing you to dim lights, check tank levels, or trigger "modes" (like 'Night Mode' or 'All Off') with a single touch.

Garmin EmpirBus NXT DCM  Key Features

• Integrated Digital Switching: Seamlessly control and monitor all DC loads directly from your Garmin MFD or compatible web-display unit.
• Intelligent Circuit Protection: All output channels are electronically protected. This means no more hunting for blown fuses; the system features programmable electronic fuses with undercurrent detection and manual reset capabilities.
• Advanced Lighting Control: Bring luxury to your cabin with full LED dimming functionality. Create the perfect ambience with "Soft Start" and "Soft Stop" transitions that are easy on the eyes and the equipment.
• Versatile Input/Output: Each DCM features 16 universal channels that can be configured as digital or analogue inputs (for sensors, tank levels, or switches) or high-current outputs (up to 18A–20A depending on the model).
• Complex Motor Management: Built-in support for reversible polarity makes controlling window wipers (including interval and park functions) and electric actuators simpler than ever.
• NMEA 2000® Certified: True plug-and-play integration with your existing marine network, ensuring high-speed communication across all Garmin OnBoard™ systems.
• Rugged Marine Design: Built to withstand the harsh salt-water environment, the unit is IP65 rated and designed for easy installation in tight spaces.
• Manual Override for Peace of Mind: Safety is paramount at sea. The NXT DCM includes physical manual override controls on the unit itself, ensuring you always have control, even in the unlikely event of a network failure.

Technical Specifications

• • Voltage: 12V or 24V DC operation.
  • Network: NMEA 2000 (Micro 5-pin M12).
  • Ingress Protection: IP65 (Water resistant).
  • Dimensions: Compact footprint (approx. 230 x 106 x 38 mm).
  • Connectors: High-quality Molex MX150L 16-way connectors.

Why buy from Morgan Marine?

As a trusted UK marine dealer since 1972, our team at Morgan Marine understands the complexities of marine electrical systems. We don’t just sell the gear; we know how it works in the real world. Buy with confidence knowing you have access to genuine UK stock and expert support.

Garmin EmpirBus NXT DCM FAQs

What exactly is the Garmin EmpirBus NXT DCM?

The NXT DCM (Digital Control Module) is the "muscle" of your boat’s digital switching system. It replaces traditional mechanical fuse panels and heavy wiring looms with a compact, intelligent box. It connects to your NMEA 2000® network, allowing you to control and monitor your lights, pumps, wipers, and more directly from your Garmin MFD (Multi-Function Display).

Why should I choose digital switching over a traditional fuse panel?

It’s all about reliability and intelligence. Traditional panels require long runs of heavy copper wire from every single device back to the helm. With the NXT DCM, you can place the module closer to your equipment (like in the engine room or under the gunwales), saving weight and reducing clutter. Plus, you get smart features like dimming, timed circuits, and real-time current monitoring that a standard fuse simply can’t offer.

How many devices can I connect to a single DCM?

The NXT DCM is a 16-channel device. It features a mix of high-current and standard-current outputs, allowing you to drive everything from power-hungry windlasses and pumps to delicate LED lighting. If you have a larger vessel with more than 16 circuits, you can easily add multiple DCMs to the same network.

Is it waterproof? Can I mount it in damp areas?

Yes. The unit is rated to IP65 standards, meaning it is protected against dust and low-pressure water jets. While it shouldn’t be submerged, it is perfectly suited for installation in lockers, engine rooms, or behind consoles where moisture might be present.

What happens if the electronics fail? Can I still turn my lights on?

This is a common concern, and Garmin has built in a "Limp Home" redundancy. The NXT DCM features manual override controls directly on the unit. If your NMEA 2000 network or MFD ever goes down, you can manually trigger any circuit and reset electronic fuses using the physical buttons and the digital display on the DCM itself.

Can I use the NXT DCM to dim my LED lights?

Absolutely. One of the best features of the NXT DCM is its "soft start/stop" and built-in dimming capability. You don’t need separate dimmer modules; the DCM handles it all electronically, allowing you to create the perfect ambience on board through your Garmin screen.

Does it support windscreen wipers?

Yes, it is specifically designed to handle complex loads like wipers. It can manage interval settings, multiple speeds, and even "park" functions for your wipers, all integrated into the digital interface.

How does it handle blown fuses?

The NXT DCM uses electronic fuses. If a circuit draws too much current, the DCM will trip the circuit and notify you on your Garmin MFD. You can then reset the "fuse" digitally from the screen—no more digging around for spare glass or blade fuses in the dark!

Is it compatible with 12V and 24V systems?

Yes, the module is versatile and supports both 12V and 24V DC systems, making it suitable for everything from small RIBs to larger motor yachts.

Can I install this myself?

While the physical mounting is straightforward, the EmpirBus system requires programming to define how your switches and circuits behave. At Morgan Marine, we generally recommend professional installation or consultation to ensure the configuration file is correctly set up for your specific boat’s layout.
