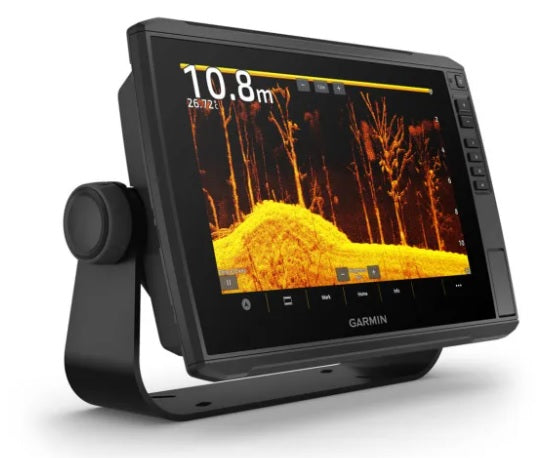

Garmin ECHOMAP™ Ultra 2 10" Chartplotter with Transducer

Garmin ECHOMAP™ Ultra 2 10" Chartplotter with Transducer

Garmin ECHOMAP™ Ultra 2 10" Chartplotter with Transducer are designed to meet those demands, combining a brilliant, sunlight-readable touchscreen with the advanced sonar technology Garmin is world-renowned for.

This powerhouse unit comes bundled with the GT56UHD-TM transducer, giving you ultra-high-definition scanning sonar and CHIRP traditional sonar right out of the box. Whether you’re hunting for bass in a hidden cove or navigating busy coastal waters, the Ultra 2 provides the clarity, speed, and precision you need to fish like a local and navigate with total confidence.

Garmin ECHOMAP™ Ultra 2 10" Chartplotter with Transducer Key Features

• Brilliant IPS Display: The 10-inch WXGA touchscreen features In-Plane Switching (IPS), ensuring you can see every detail from any angle, even in direct sunlight and with polarised sunglasses.
• Unmatched Sonar Clarity: See beneath and around your boat with incredible detail. The included GT56 transducer delivers high-wide CHIRP traditional sonar alongside Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for near-photographic images.
• Wireless Networking: For boats with multiple helm stations, you can now share sonar, waypoints, and routes wirelessly between compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 units, keeping your deck clean and installation simple.
• Multi-Band GPS:  Experience superior position accuracy and signal reception, especially in challenging areas like steep-sided cliffs or under bridges, thanks to the 10Hz multi-band GPS technology.
• Garmin Navionics+™ Support:  Navigate with the best. This unit is fully compatible with Garmin Navionics+ and premium Vision+™ cartography, featuring integrated coastal and inland content with daily updates.
• 10” Touchscreen with Keyed Assist: Enjoy the ease of a touchscreen with the reliability of physical buttons for quick navigation in rough conditions.
• GT56UHD-TM Transducer Included: Get high-definition scanning images and traditional CHIRP sonar in one easy-to-install package.
• LiveScope™ Ready: Built-in support for the full range of LiveScope™ live-scanning sonar products (transducers sold separately).
• Vivid Colour Palettes: High-contrast scanning sonar colours make it easier than ever to distinguish fish from underwater structures.
• ActiveCaptain® App Connectivity: Pair with your smartphone to access the OneChart™ storefront, receive smart notifications, and perform software updates.
• Screen Recording: Capture what’s on your screen—including your best LiveScope catches—to share with friends and social media via the ActiveCaptain app.
• Quick-Release Bail Mount: Easily remove the unit from your boat for security or storage at the end of the day.
• NMEA 2000® Compatible: Seamlessly connect to your autopilot, Fusion-Link™ audio system, engine data, and digital switching.
• Force® Trolling Motor Integration: Wirelessly control your Garmin Force trolling motor directly from the display—create routes, follow tracks, and check battery life.

What’s in the Box:

• • ECHOMAP Ultra 102sv with worldwide basemap
  • GT56UHD-TM transducer
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • Hardware & Documentation

Morgan Marine Expert Tip: To get the most out of this unit, we highly recommend pairing it with a Garmin Navionics+ UK & Ireland chart card. This unlocks Auto Guidance+™ technology, making route planning around our local coastlines faster and safer than ever.

Garmin ECHOMAP™ Ultra 2 10" Chartplotter with Transducer FAQs

Does this model support the Garmin Panoptix LiveScope™?

Absolutely. In fact, the Ultra 2 series is designed specifically with LiveScope in mind. It features a dedicated "plug-and-play" LVS port on the back, so you won't need an extra black box (GLS 10) if you are using the newer LiveScope systems. The 10-inch screen is often cited by our customers as the "sweet spot" for viewing live sonar.

What are the main differences between the Ultra 2 and the original Ultra series?

The Ultra 2 brings several key upgrades to your helm:

• • Wireless Networking: Share sonar, waypoints, and routes with other Ultra 2 or UHD2 units without pulling extra cables through your hull.
  • Multi-band GPS: This provides much improved position accuracy, especially near cliffs or tall harbour walls.
  • Screen Recording: You can now capture your sonar screen directly to your phone via the ActiveCaptain® app—perfect for showing off that record catch.

What can I expect from the GT56UHD-TM transducer?

This is Garmin’s top-tier "All-in-One" transducer. It provides:

• • High-Wide CHIRP: For crisp fish arches and target separation.
  • ClearVü: For a photo-like view of what's directly beneath your boat.
  • SideVü: With a massive range, allowing you to scan structure on either side of the boat in Ultra-High Definition.

Can I use my existing UK & Ireland charts?

The unit comes with a worldwide basemap, but for serious navigation in British waters, we highly recommend adding a Garmin Navionics+™ or Vision+™ microSD card. This provides the high-detail bathymetry (1-foot contours) that is essential for spotting local wrecks and reefs.

Does this unit come with a warranty?

Yes, as an authorised Garmin dealer, all our units come with a full 2-year Garmin manufacturer warranty. If you encounter any technical gremlins, you can contact us directly, and we’ll help you navigate the support or replacement process.

Is it easy to install myself?

If you are comfortable with basic 12V electrics and drilling a few holes for the transducer mount, it is very straightforward. However, if you are local to Essex or the South East, our workshop team at Morgan Marine offers professional installation services to ensure your transducer is positioned for optimum high-speed performance.
